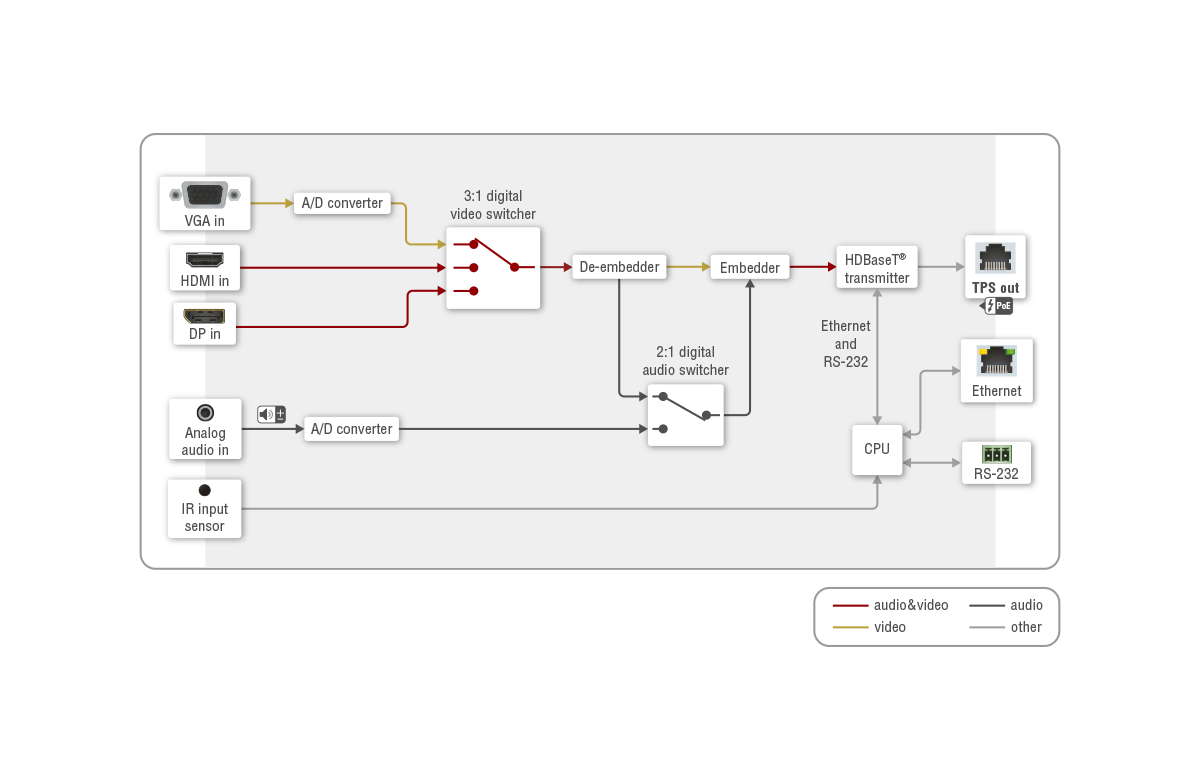

WP-UMX-TPS-TX130-US wall plate transmits universal video signals at a resolution of up to 4K together with audio and control up to a range of 170 m over a single CAT5 or better class cable. This transmitter was designed for digital and analog video and audio signals:VGA YprPb, HDMI 1.4 and DP 1.1 with analog stereo audio from local input or embedded 7.1 HBR audio and also handles HDCP encryption. Analog signals (both audio and video) are converted to a digital format and can be transmitted separately. Using the factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent IR, RS-232 and Ethernet transmission. IR and RS-232 connections support command injection, allowing the sending of any IR or RS-232 control command directly via the LAN connection. Remote powering is available through the single CAT cable, but local power supply can also be used. The device can be mounted on a rack shelf or used standalone. The device is compatible with both HDBaseTTM extenders and matrix boards.

Features

• Cisco VC room integration compatibility
• Advanced control feature pack for 3rd party video conference collaboration
• Built-in Event Manager control automation
• 1920x1080@120Hz/4:4:4 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
• Audio embedding or replace original audio
• Ethernet extension (100 Mbps)
• Command injection on RS-232 and IR ports
• Extends VGA, DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
• Bi-directional RS-232 and single direction IR extension (pass-through and control)
