TPS-PI-1P1 Single Port Standalone TPS Power Injector - Product - Midwich

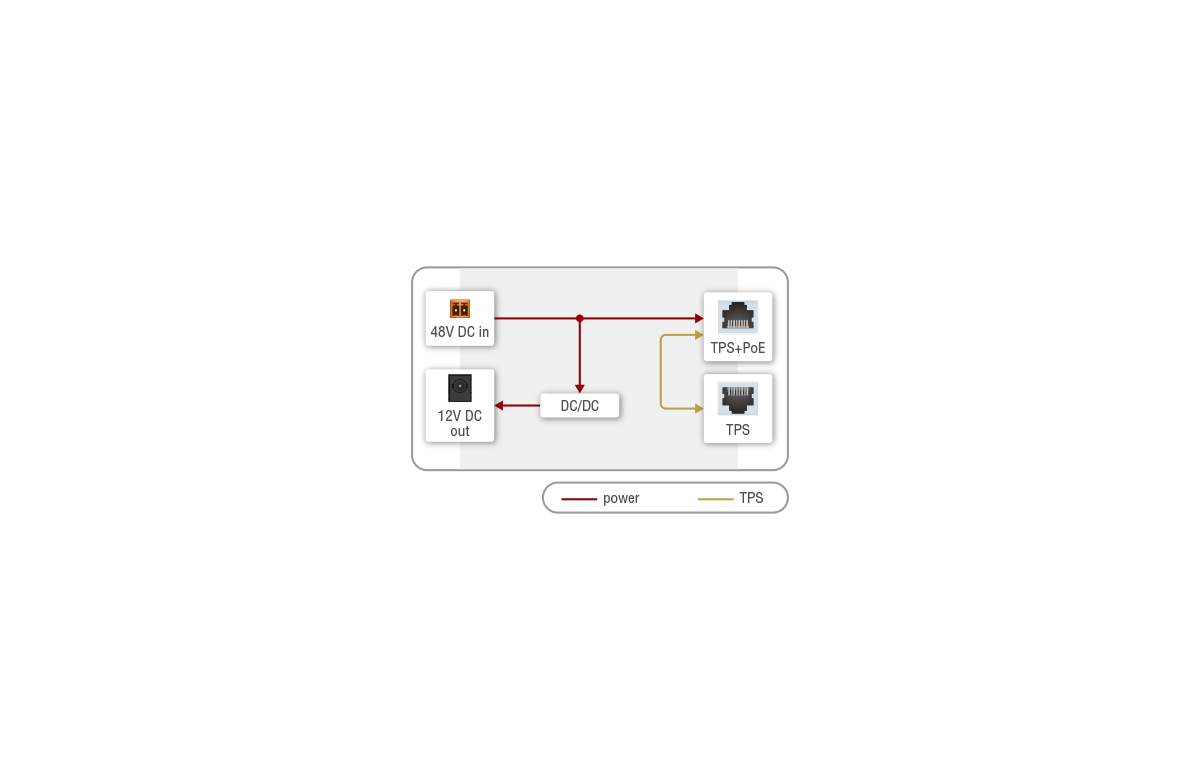

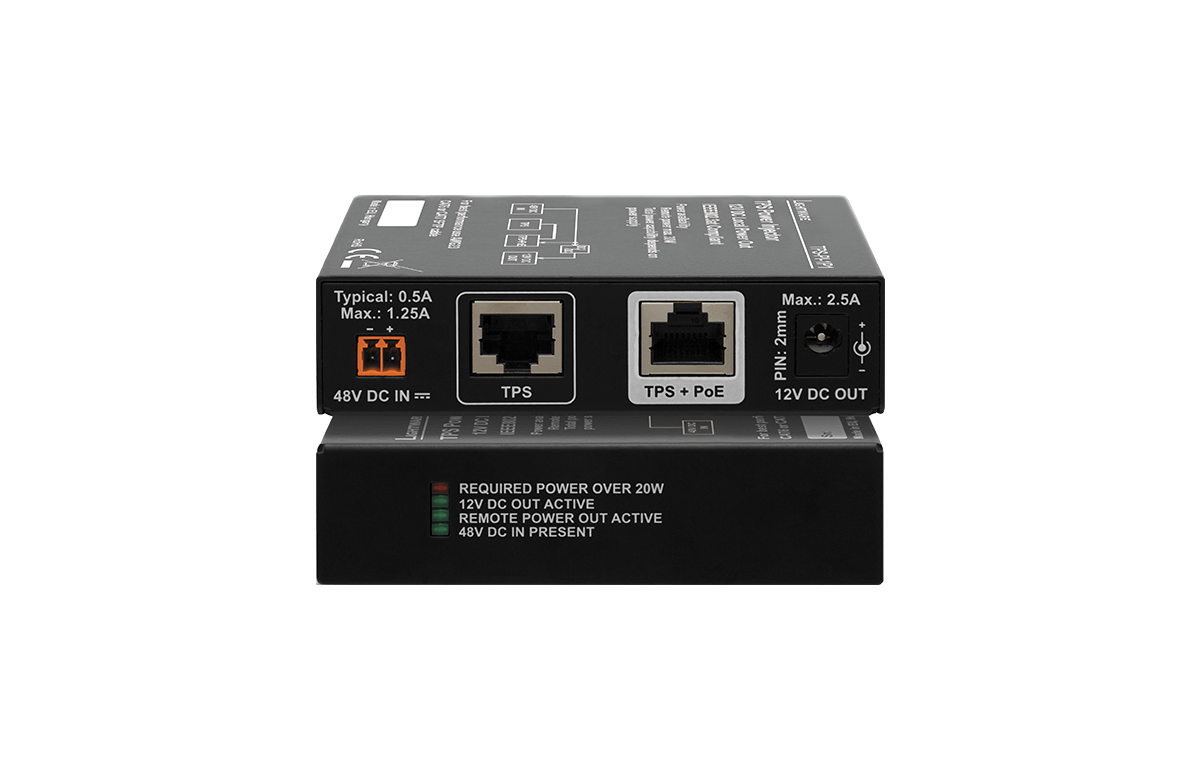

TPS-PI-1P1 is an IEEE802.3at compatible high end remote power injector device providing power to a remote TPS transmitter or receiver. The TPS-PI-1P1 is able to power a TPS extender placed in the TPS transmission chain, anywhere between the transmitter and the receiver unit. The incoming data stays untouched, the signal quality is unaffected but a 48V DC remote power is added to the signal by this device. This unit provides a uni-directional remote power only, but thanks to the 12V local output option the other device can be powered with the TPS-PI-1P1 if they are placed close to each other. Powering of the injector itself is provided by it’s own included power adapter. TPS-PI-1P1 has four front panel LED indicators for monitoring of the operation and troubleshooting: Power overload, 12V DC out active, Remote power out active and 48V DC in present.

Features

• Built-in PoE injector for remote powering extenders
• HDBaseT compatible
• Single port 48V remote power feed to a TPS endpoint
• Feeding up to 30W power
• 12V DC local power output

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
