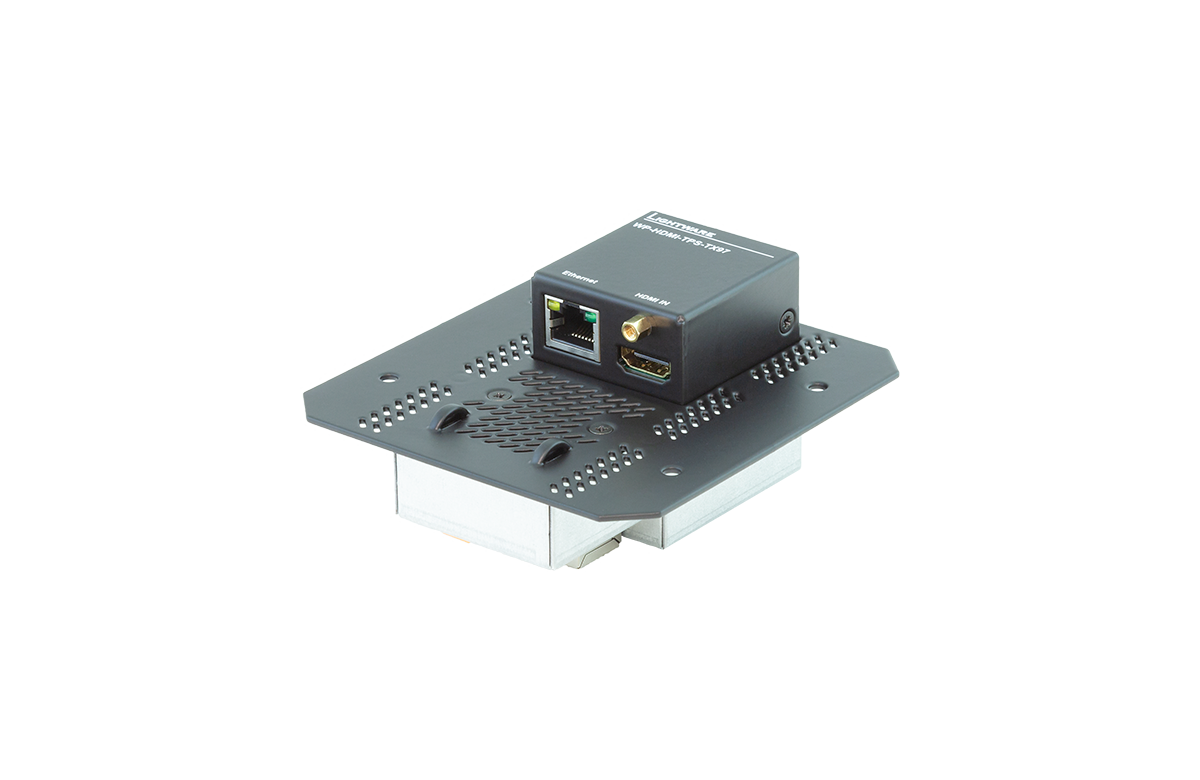

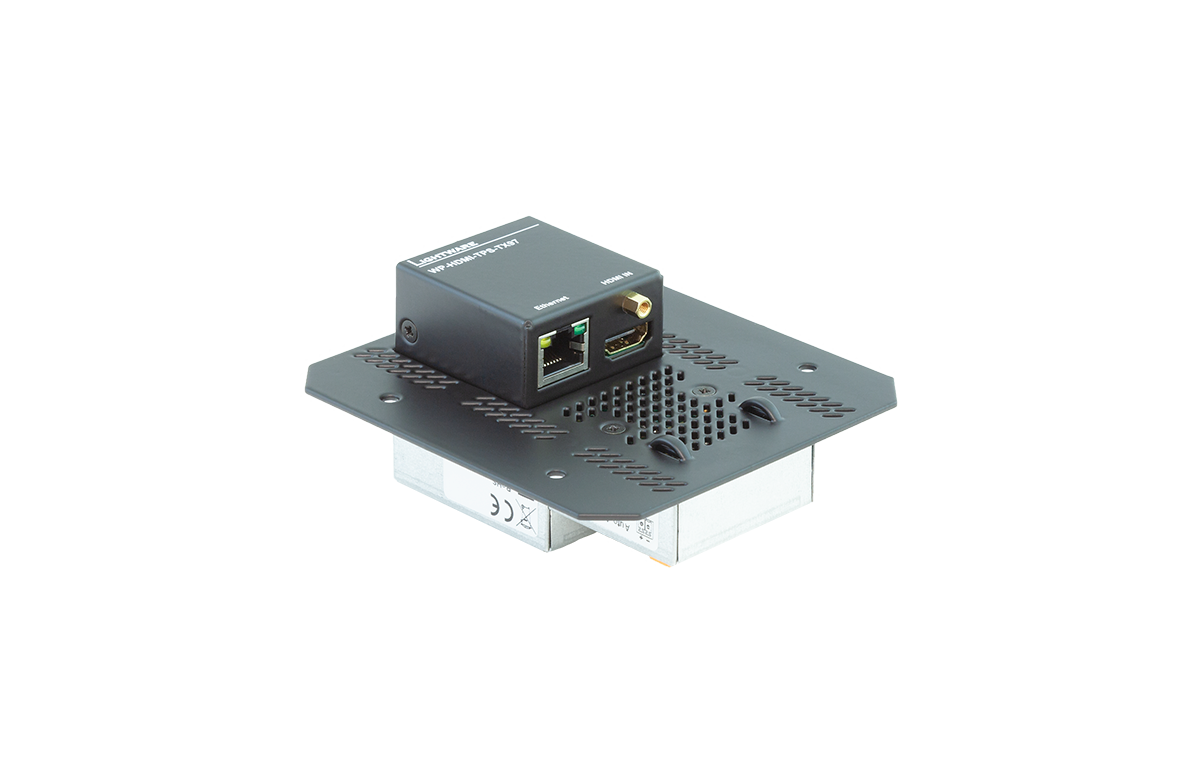

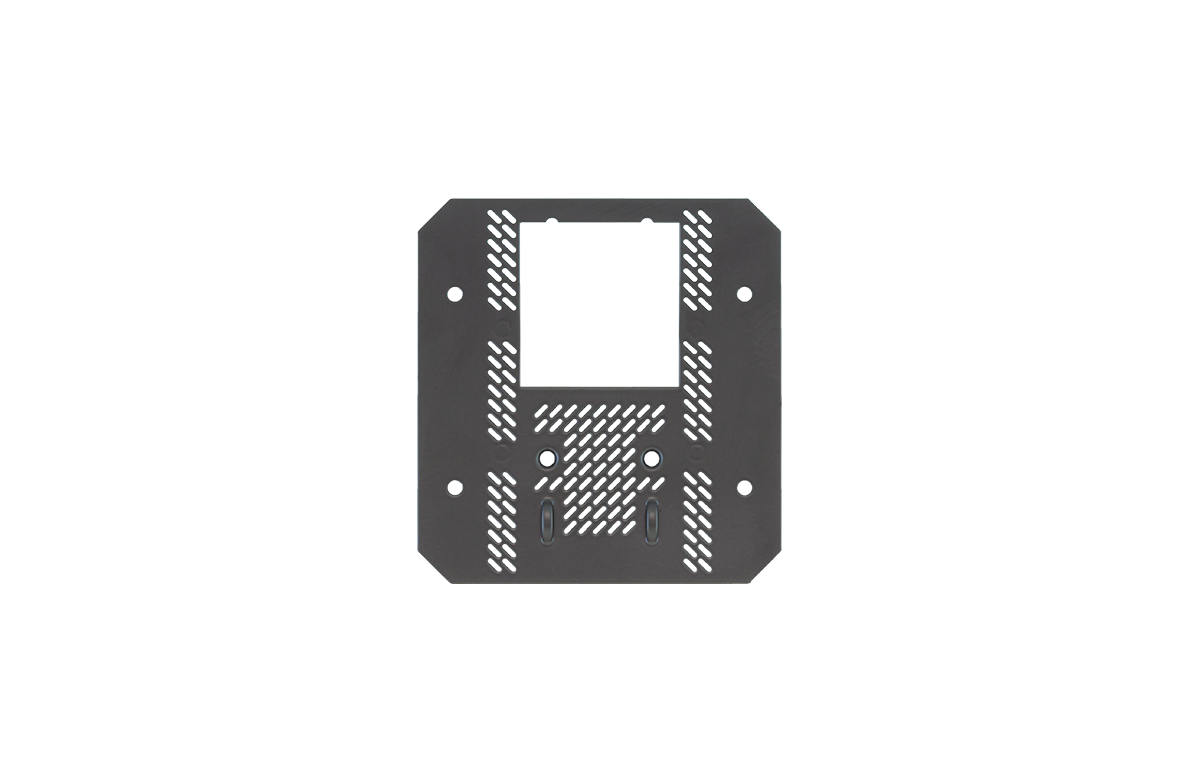

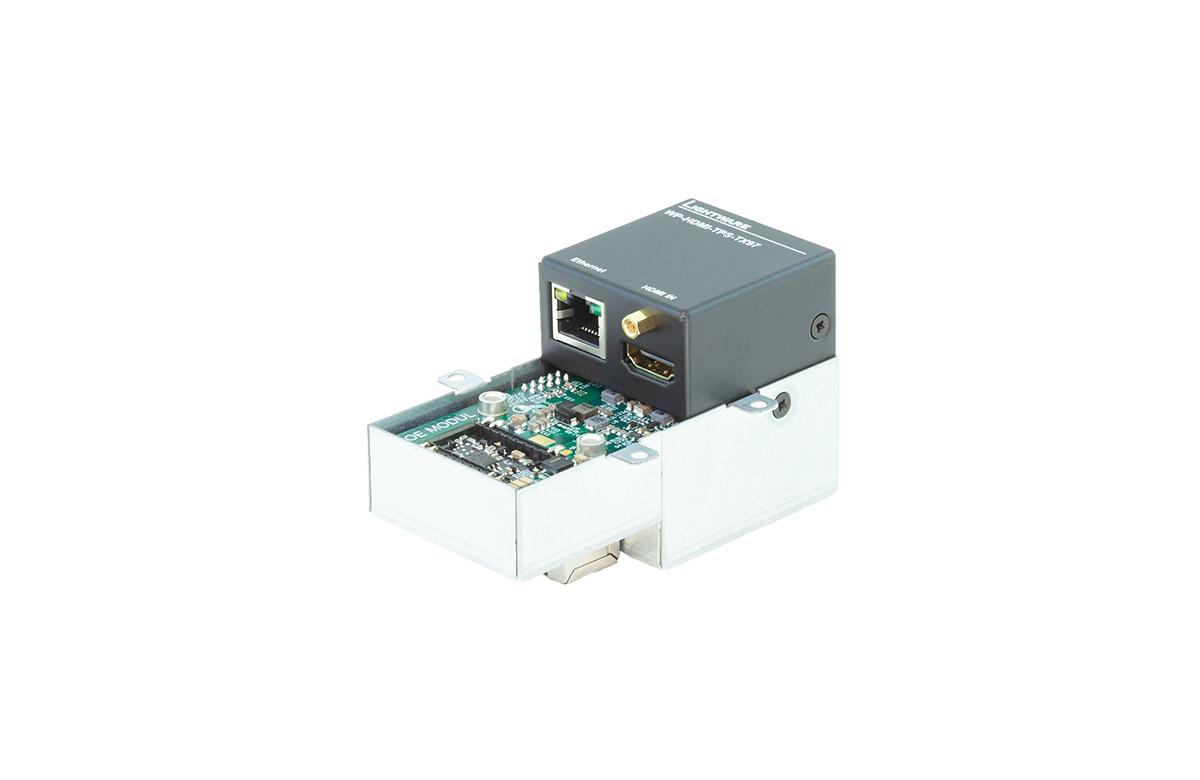

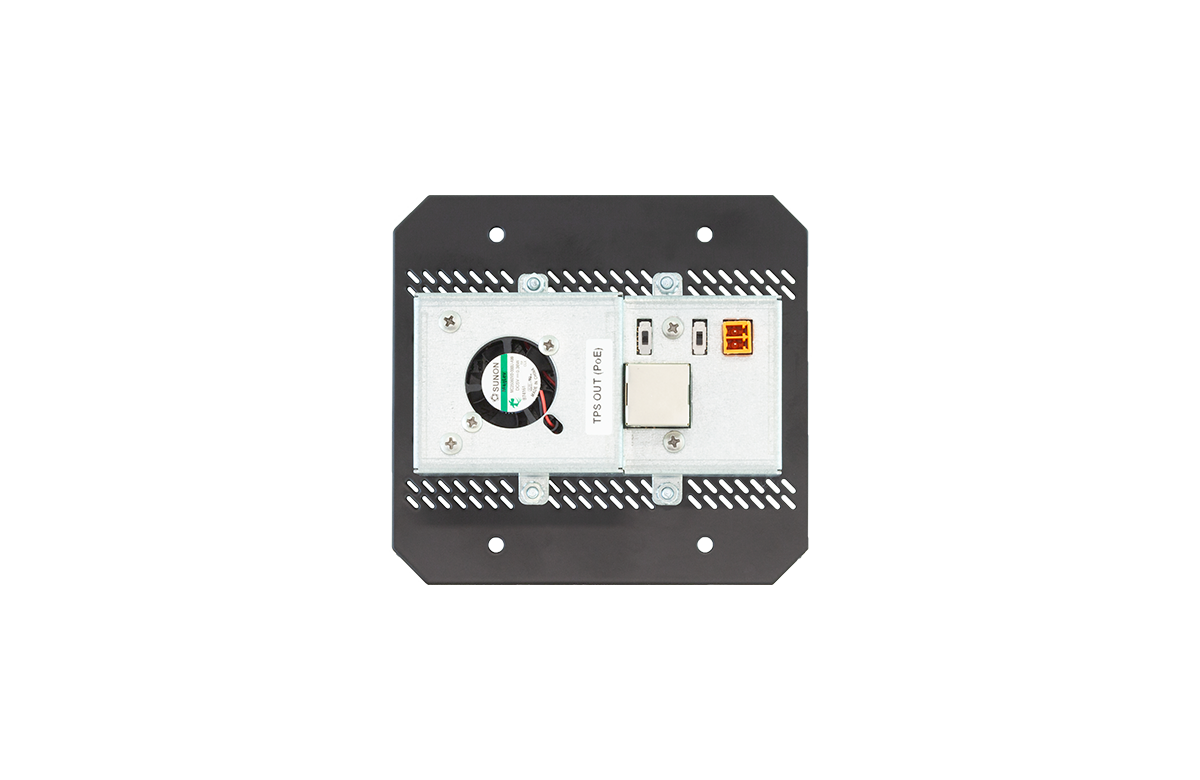

Lightware WP-HDMI-TPS-TX97-FP-8AT HDMI1.4 + Ethernet + RS-232 + bidirectional IR HDBaseT floor box transmitter over CATx cable including PoE. HDCP, 3D and 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0) compliant. 170m extension distance. Compatible with TPS series input boards and receivers. Compatible with Legrand 8AT floor panel. - 91540090

List $1,468.50

The WP-HDMI-TPS-TX97 series twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth, also handling all standard audio formats and as well as 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used.

Features

  • Ethernet extension (100Mbps)
  • Selectable IR output mode
  • Bi-directional RS-232 and IR extension (pass-through)

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Country of origin TW
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
WP_FP-HDMI-TPS-97_Series_v04.pdf

Accessories
