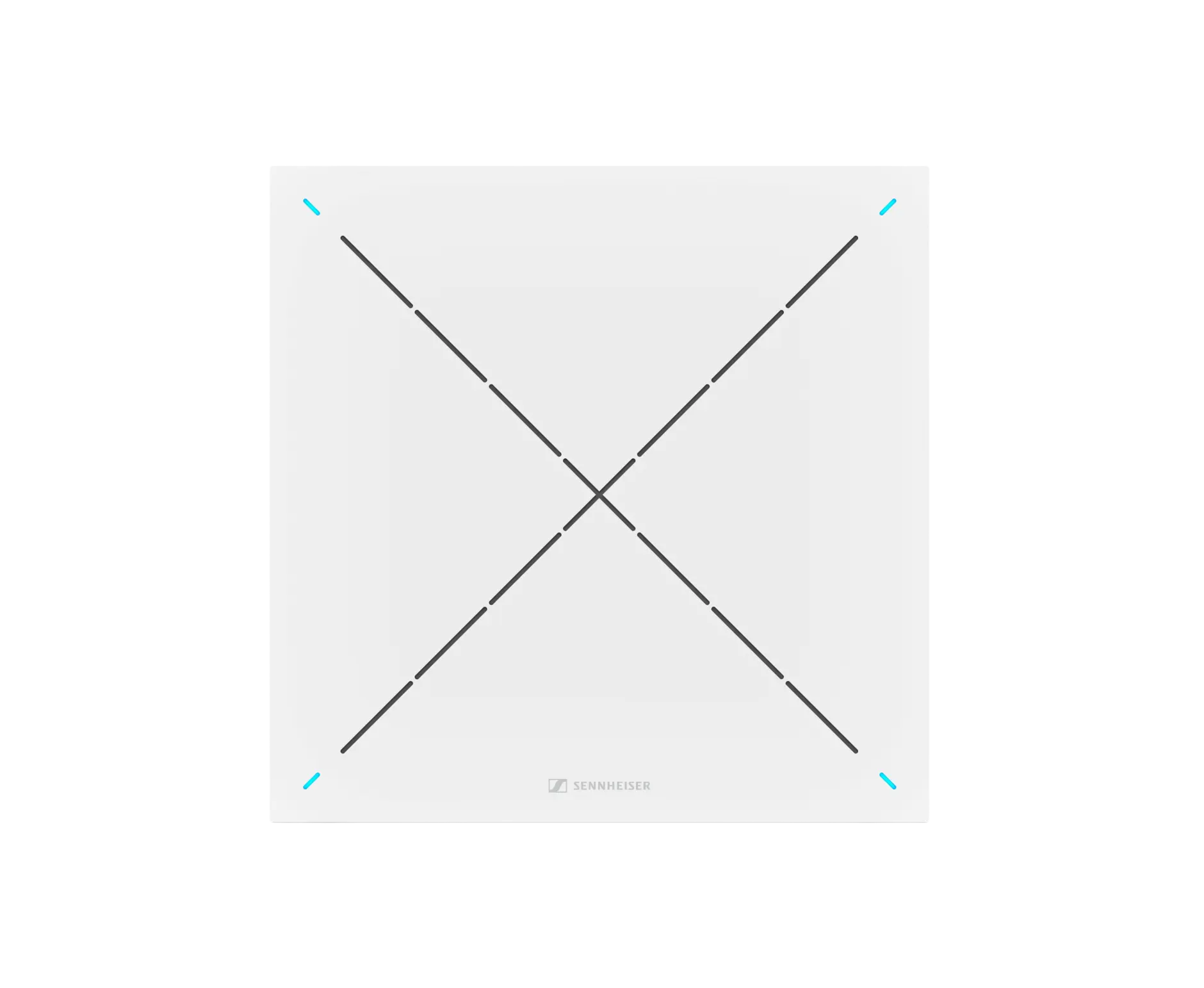

With its functional square form the TCC 2 gracefully integrates into the design of modern meeting rooms – simply by replacing a ceiling tile. The TeamConnect Ceiling 2 is a real problem-solver that allows cable free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

Features

• Patented automatic dynamic beamforming
• TruVoicelift
• 28 Electret condenser capsules, made in Germany
• Perfect speech intelligibility
• Dante or Analog Output
• PoE
• Certified for: MS Teams, Zoom, DingTalk and Tencent
• Exclusion Zones
• Priority Zone
• Camera Control via talker position data
• IEEE 802.1x

Specs

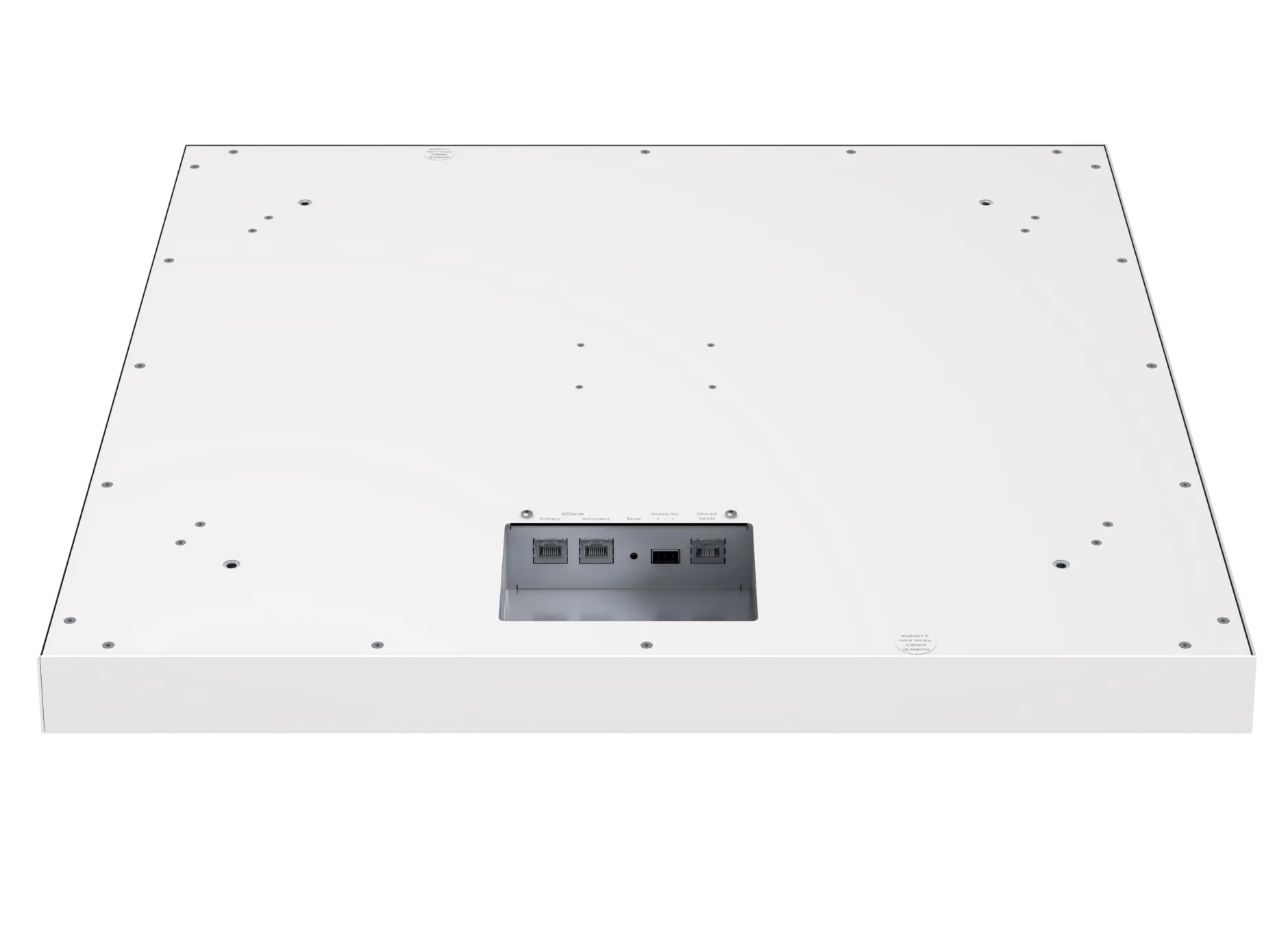

• Audio output 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81); 2 x Digital Dante Network Audio (RJ-45 Primary and Secondary)
• Latency (ms) 4 ms
• Max. sound pressure level 104 dB SPL
• Power consumption Max. 8.8 W
• Sensitivity 0 dBV/Pa (988 mV/Pa)
• Signal-to-noise ratio 83 dB (A)
• Transducer principle Pre-polarized condenser microphone
• Transducer type Pre-polarized condenser
• Connection Wired

Product Availability Note: The standalone white microphone array is also distributed as an all-in-one hardware package under manufacturer part number TCCCEILING2W/EXTBRCKS. Both product configurations are offered at an identical price point. To review the kit option featuring the exact same microphone paired with extended installation brackets, see the [Sennheiser TCC2 Microphone Kit].
