TEAM CONNECT CEILING 2 WITH EXTENSION BRACKETS TCC 2 + Extension Set - Product - Midwich

With its functional square form the TCC 2 gracefully integrates into the design of modern meeting rooms – simply by replacing a ceiling tile. This all-in-one installation kit includes the TeamConnect Ceiling 2 microphone paired with SL CM EB extension brackets, allowing for a seamless flush-mount setup directly into standard US ceiling grids right out of the box. The TeamConnect Ceiling 2 is a real problem-solver that allows cable free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

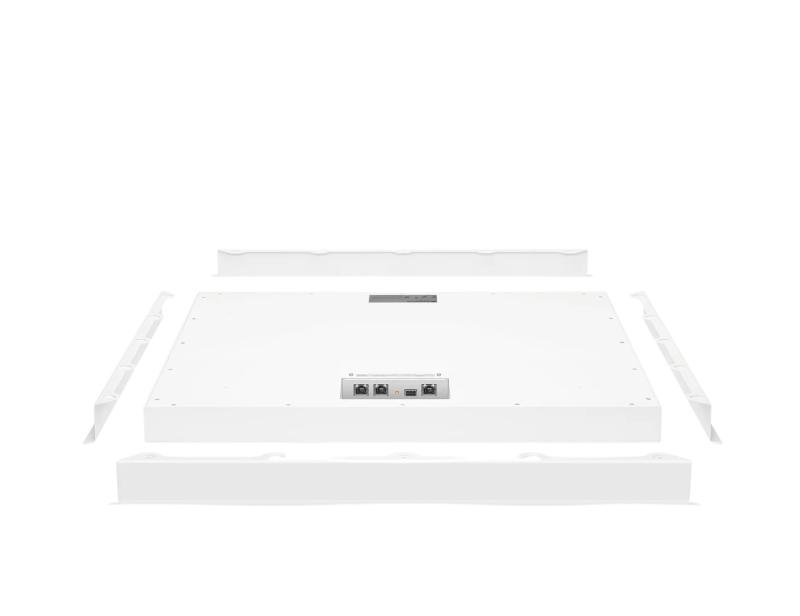

Included in this kit

• 1 x TeamConnect Ceiling 2 Microphone Array (White)
• 1 x Set of SL CM EB US Extension Brackets (4-Piece Set)
• 1 x TCC2 Box Kit

Features

• Patented automatic dynamic beamforming
• TruVoicelift
• 28 Electret condenser capsules, made in Germany
• Perfect speech intelligibility
• Dante or Analog Output
• PoE
• Certified for: MS Teams, Zoom, DingTalk and Tencent
• Exclusion Zones
• Priority Zone
• Camera Control via talker position data
• IEEE 802.1x
• Optimized Fit: Included extension brackets expand the physical mic housing from 590mm to 605mm to fit perfectly flush in standard US 2x2 drop-ceiling grids

Specs

• Audio output 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81); 2 x Digital Dante Network Audio (RJ-45 Primary and Secondary)
• Latency (ms) 4 ms
• Max. sound pressure level 104 dB SPL
• Power consumption Max. 8.8 W
• Sensitivity 0 dBV/Pa (988 mV/Pa)
• Signal-to-noise ratio 83 dB (A)
• Transducer principle Pre-polarized condenser microphone
• Transducer type Pre-polarized condenser
• Connection Wired
