HDMI-TPS-TX97 twisted pair HDBaseT™ extender provides extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable.

Simplify High-Quality AV Extension with Ease

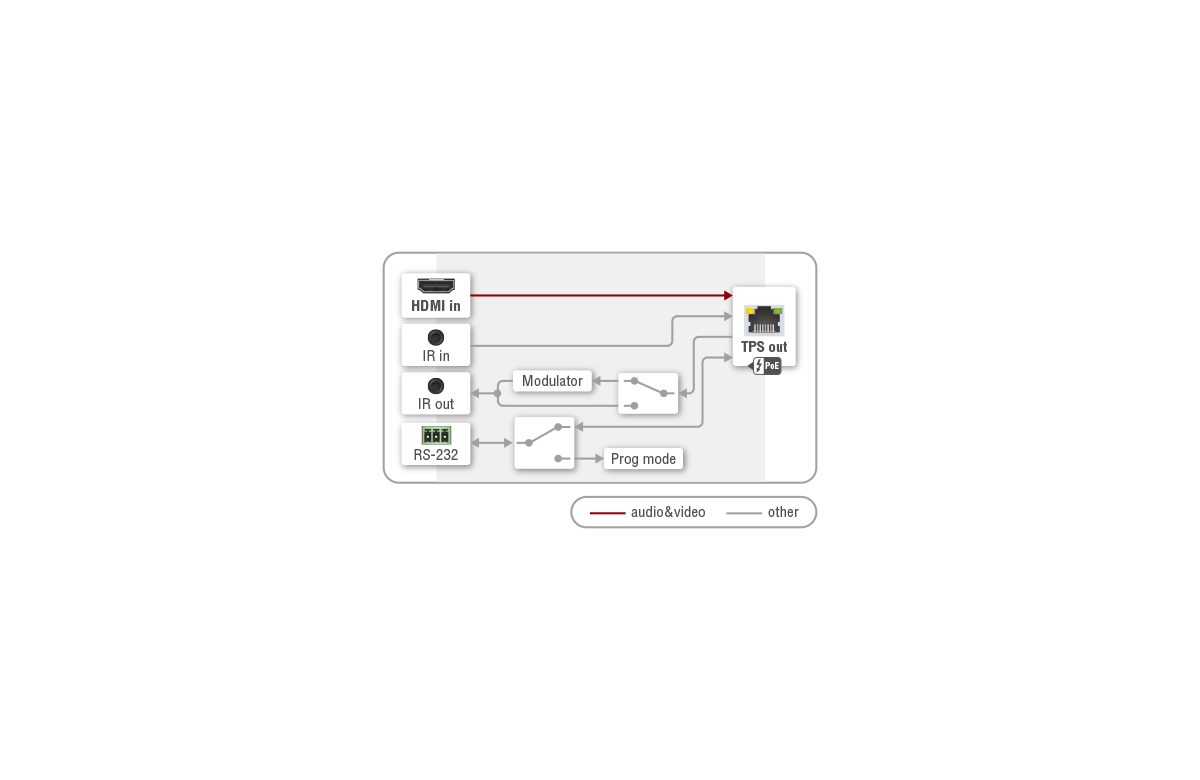

HDMI-TPS-TX97 and HDMI-TPS-RX97 twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232, IR, and Ethernet pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

Features

• Ethernet extension (100 Mbps)
• Selectable IR output mode for emitter or wired connectivity
• Bi-directional RS-232 and IR extension (pass-through)
• Extends DVI or HDMI 1.4
