Versatile AV Transmission for Small to Medium Spaces

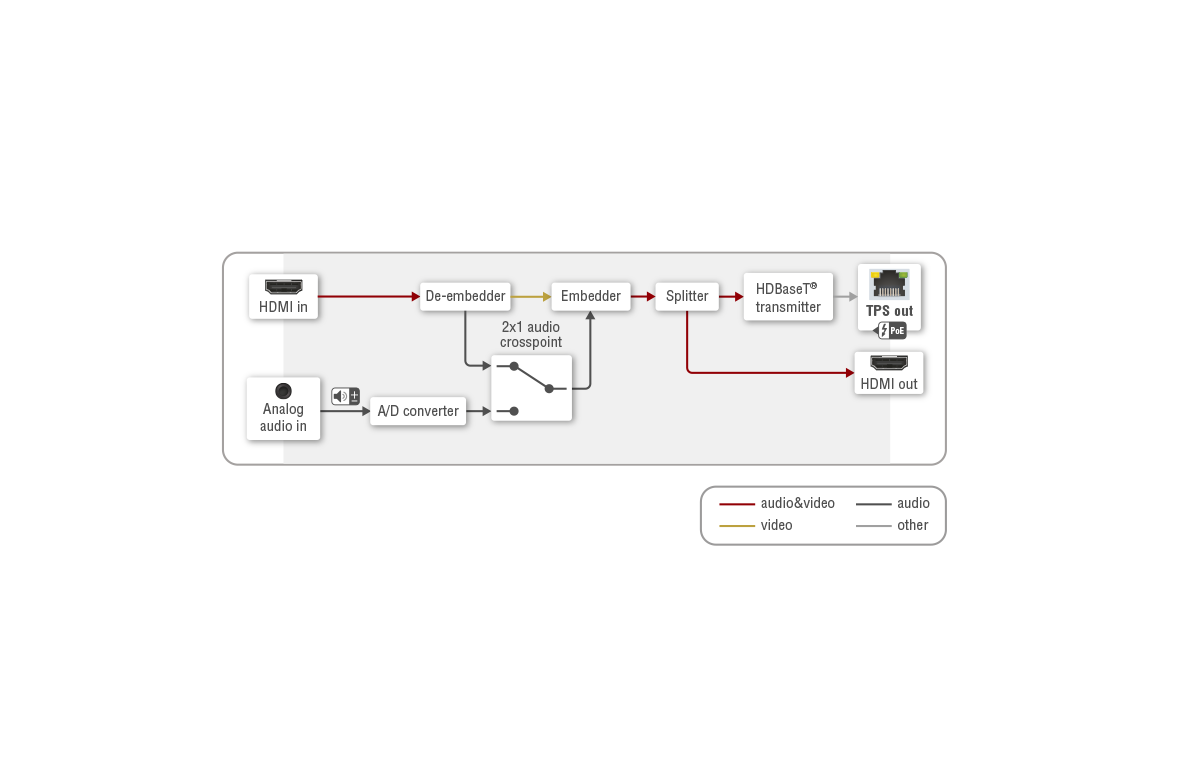

The HDMI-TPS-TX220 is an all-round video, audio and control transmitter transferring over a single CAT cable up to a range of 170 meters dynamic and fixed environments such as small board rooms and classrooms. The extender was designed to handle HDMI1.4 digital video signals and analog stereo audio from local inputs or HDMI embedded audio up to 8 Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local video output. The video and the embedded audio of the local output is the same as transmitted via TPS link.

Simplify Control and Integration for Any Environment

The HDMI-TPS-TX220 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT5e or better cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. HDMI-TPS-TX220 is compatible with both the HDBaseT extenders and matrix switchers

Features

• Built-in Event Manager control automation
• 1920x1080@120Hz/4:4:4 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
• Audio embedding or replace original audio
• Ethernet extension (100 Mbps)
• Command injection on RS-232 and IR ports
• GPIO control ports
• Bi-directional RS-232 and IR extension pass-through and control
• Extends DVI or HDMI 1.4
