Simplify Control and Audio Management with HDBaseT™ TPS Receiver

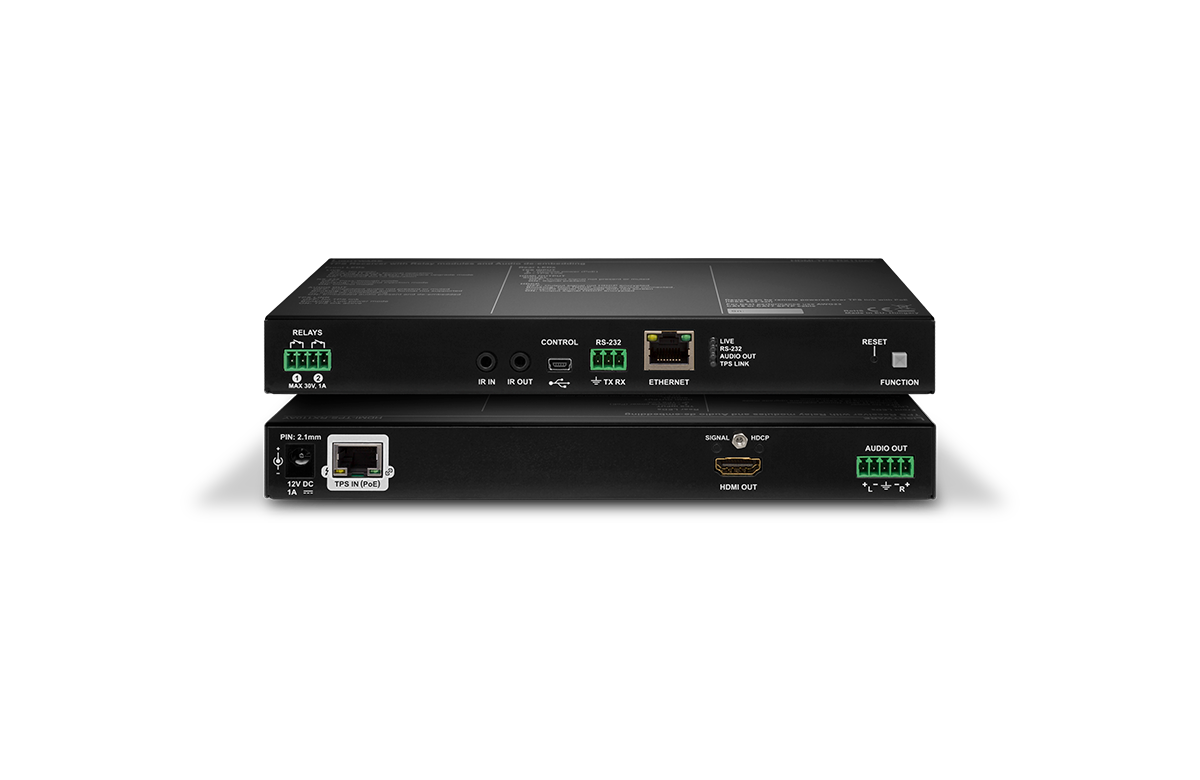

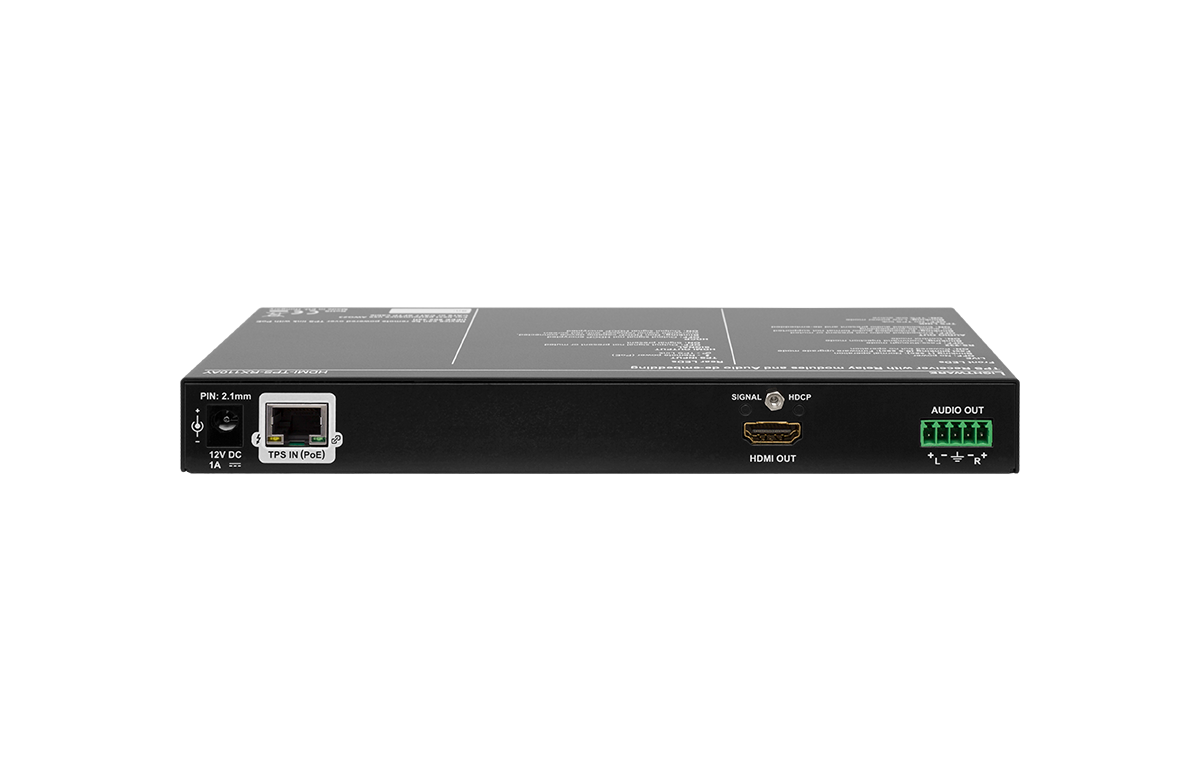

This dual relay capable HDBaseT™ compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.

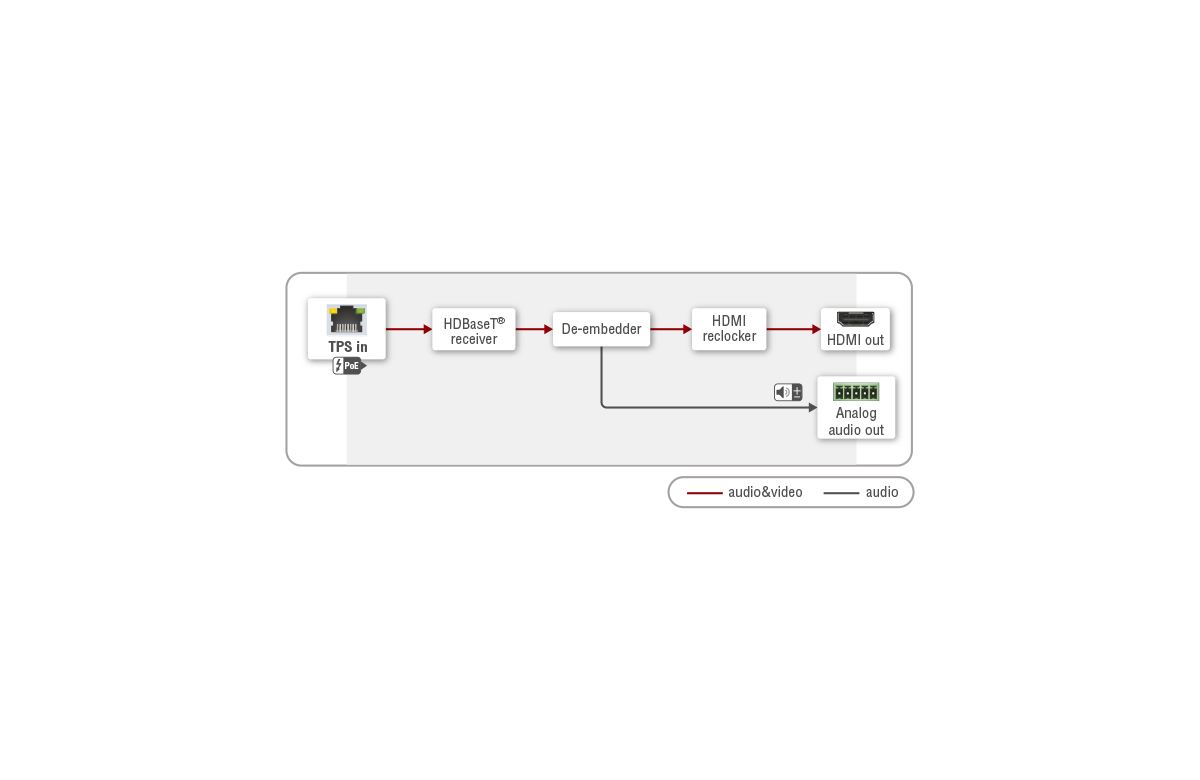

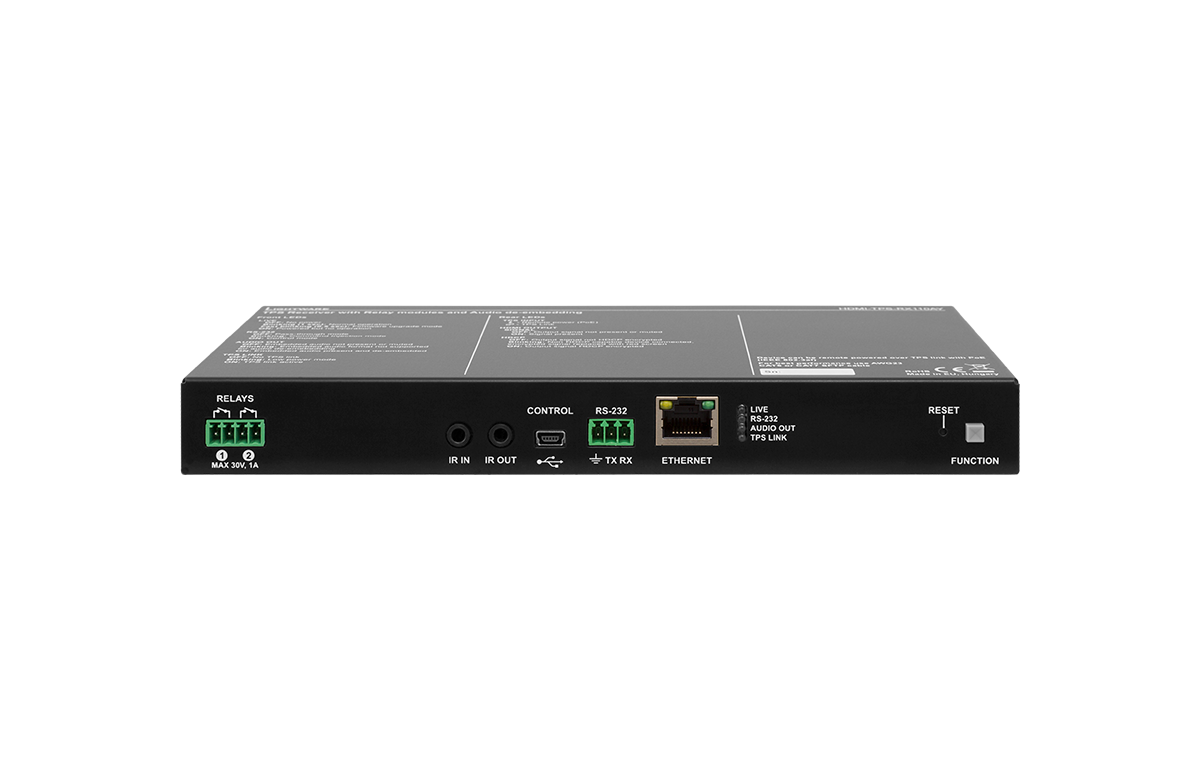

The HDMI audio is de-embedded to the balanced audio output via a Phoenix (Euroblock) connector, the audio port has volume control. The unit is HDCP compliant and has 4K/UHD and 3D capabilities. The built-in Event Manager room control feature provides the necessary control in a less complex application environment. Both the Event Manager feature and the dual relay module of the device are configurable via the freely available Lightware Device Controller software. USB, RS-232, IR (in and out) and Ethernet ports provide further connection options for control.

Features

• Cisco VC room integration compatibility
• Advanced control feature pack for 3rd party video conference collaboration
• Built-in Event Manager control automation
• 1920x1080@120Hz/4:4:4 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolution
• Command injection on RS-232 and IR ports

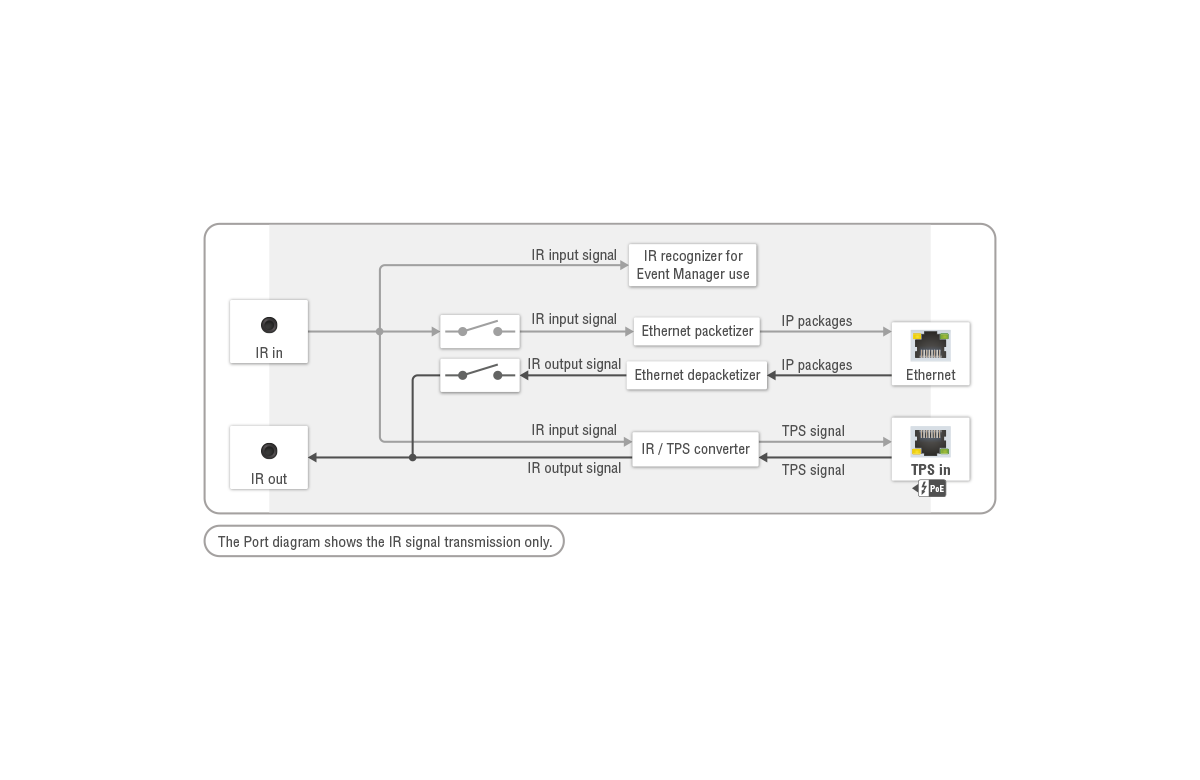

• Bi-directional RS-232 and IR extension pass-through and control
• Extends DVI or HDMI 1.4

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
