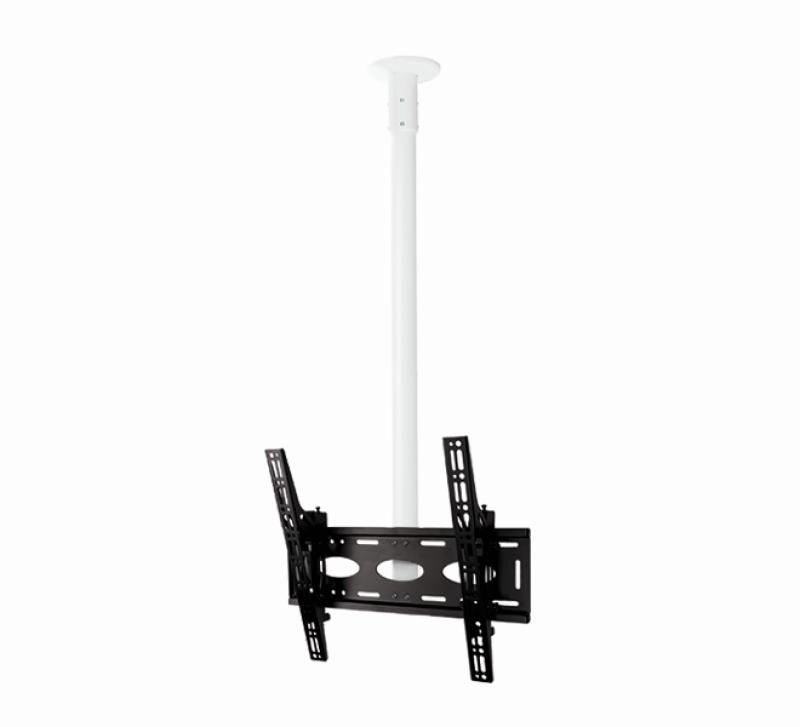

BT8424-200/BW Universal Flat Screen Ceiling Mount - 2m O50mm Pole - Product - Midwich

Designed to ceiling mount screens up to 50kg in either landscape or portrait orientation, the BT8424 is available in a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorised removal of the screen. Cover plates are supplied for a neat and tidy installation.

Features

• Unique ‘Torsion-tilt’ mechanism for easy tool-less adjustment
• Lateral adjustment of screen once mounted
• Suitable for landscape or portrait mounting
• Arms feature levelling screws to adjust the screen height
• Security screws help prevent unauthorised removal of screens
• Poles are supplied with safety bolt and grub screws for a secure installation
• Integrated cable management
• Cover plate included for a smart installation
• Simple ‘hook-on’ installation with all mounting hardware included

Specifications

• Recommended screen size: up to 65" (165cm)
• Max load: 50kg (110lbs)
• VESA® & non-VESA fixings: up to 468mm x 400mm
• VESA® compatibility with included adaptors: up to 600mm x 400mm
• Tilt: +/-15°
• Ceiling Drop: 1m, 1.5m, 2m or 3m*
• Colour option (ceiling plate & Ø50mm (2") pole) Black, White or Chrome

  *From the ceiling to the centre of the mount
