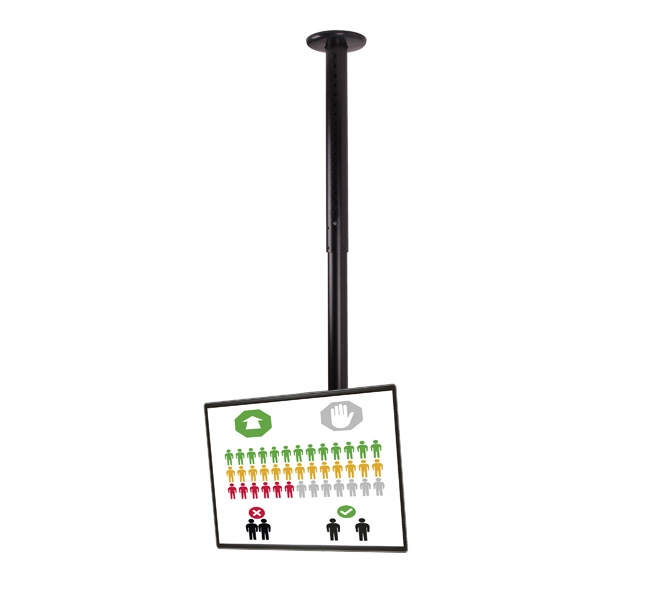

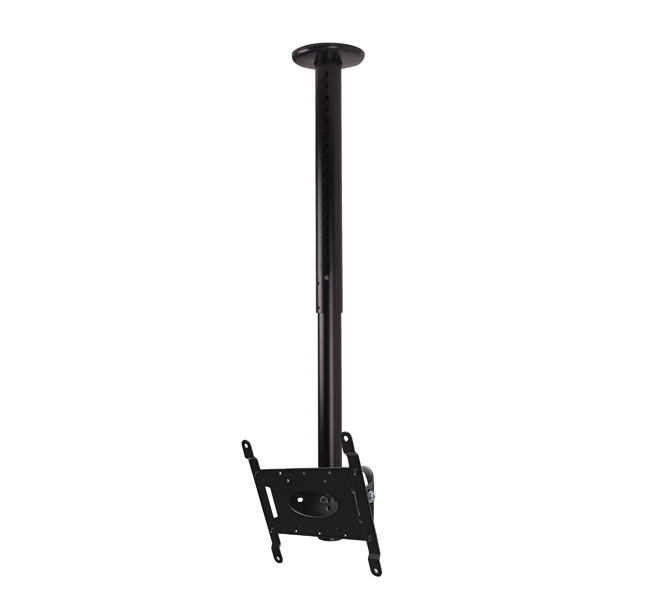

Designed to ceiling mount screens up to 25kg, the BT8420 features an adjustable drop of 625mm - 950mm in increments of 25mm. The mount has an easy tilt function of up to +/-40°. Locking screws help prevent unauthorized removal of the screen and cover plates are supplied for a neat and tidy installation.
Features
Tool-less adjustable ceiling drop in increments of 25mm (1")
Suitable for landscape or portrait mounting
Security screws help prevent unauthorised removal of screens

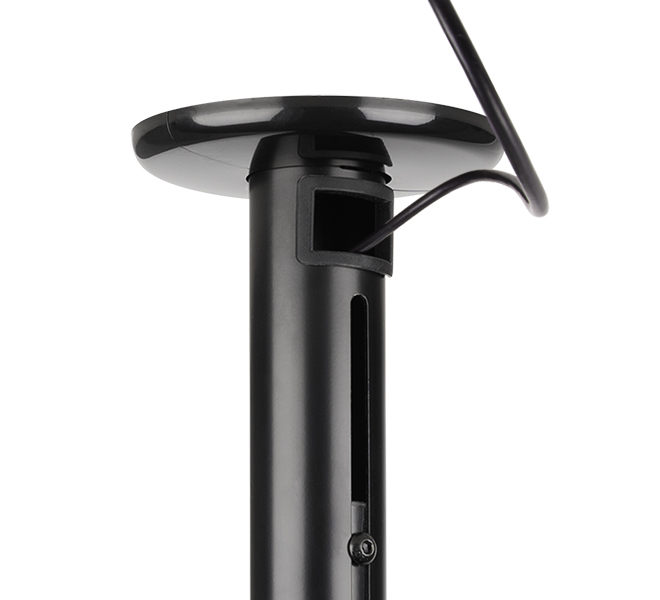

Integrated cable management
Cover plate included for a smart installation
Simple ‘hook-on’ installation with all mounting hardware included
Specifications
Recommended screen size: up to 47" (119cm)
Max load: 25kg (55lbs)
VESA® fixings: up to 200mm x 200mm
Tilt: +/-40°
Ceiling drop: Min. 600mm (23.6") - Max. 1000mm (39.4")*
