BT8427/B Adjustable Drop Flat Screen Ceiling Mount - Product - Midwich

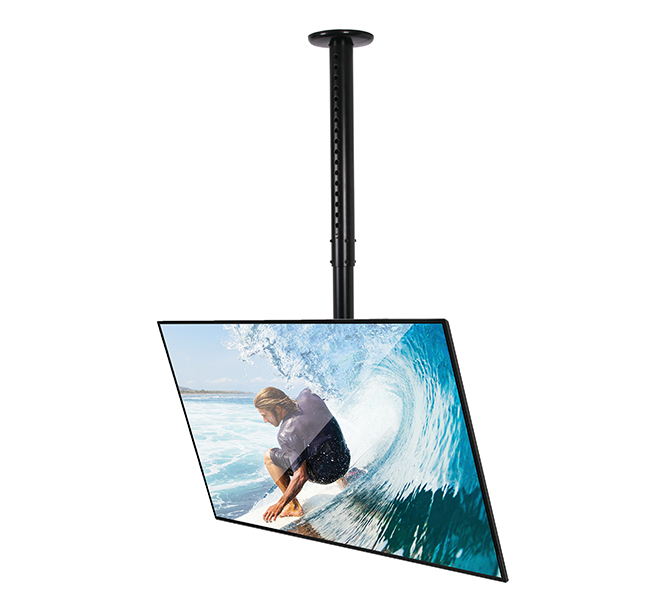

Designed to ceiling mount screens up to 70kg, the BT8427 features a push button adjustable drop of 572mm - 972mm with a safety bolt supplied for a secure installation and utilizes an easy tilt mechanism for the perfect view. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorized removal of the screen. Cover plates are supplied for a neat and tidy installation.

Features

• Adjustable ceiling drop in increments of 25mm (1")

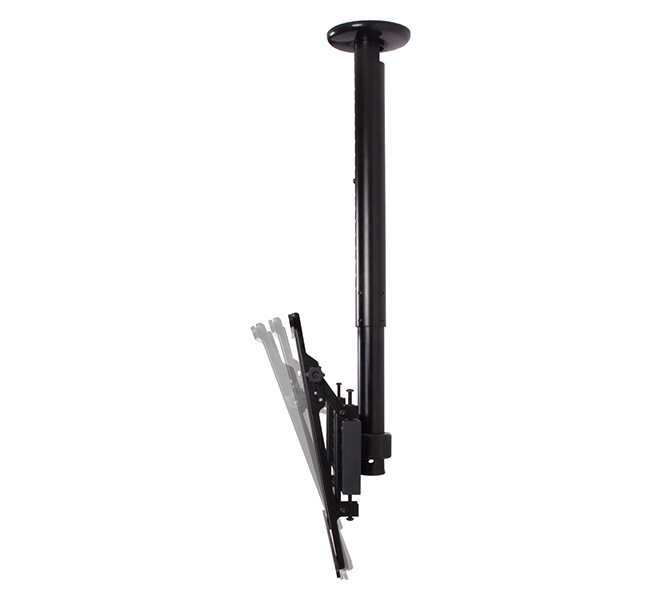

• Quick and easy adjustment of the tilt angle
• Lateral adjustment of screen once mounted
• Suitable for landscape or portrait mounting
• Arms feature levelling screws to adjust the screen height
• Security screws help prevent unauthorised removal of screens
• Integrated cable management
• Cover plate included for smart installation
• Simple ‘hook-on’ installation with all mounting hardware included

Specifications

• Recommended screen size: up to 75" (190cm)
• Max load: 70kg (154lbs)
• VESA® & non-VESA fixings: up to 468mm x 400mm
• VESA compatibility (with included adaptors): up to 600mm x 400mm
• Tilt Adjustment: up to +/-20° (in increments of 5°)
• Ceiling drop: 572mm (22.5") - 972mm (38.2")*
• Color: Black

* From the ceiling to the center of the mount
