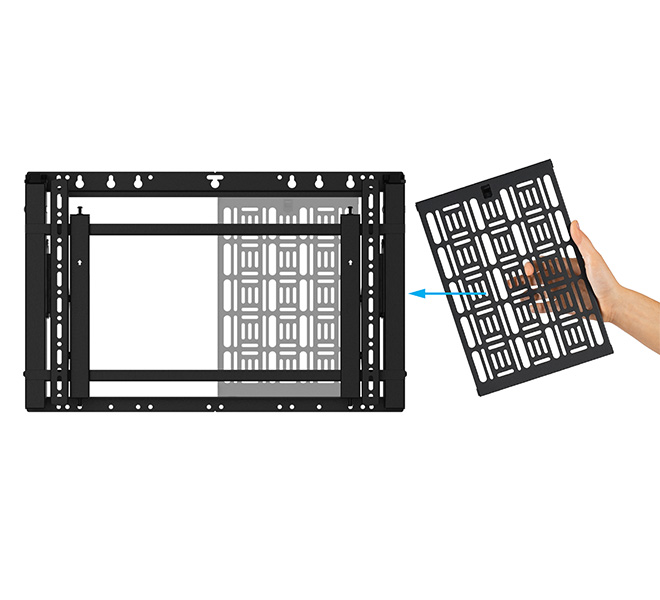

The BT7896-TRAY is an additional or replacement AV storage tray designed for use with the BT7896 Pull-Out Flat Screen Wall Mount. It can be installed alongside the original supplied tray, allowing two trays to be fitted side-by-side inside the mount, or it can be mounted to the outside of the BT7896 when internal space is limited. The tray can also be pre-loaded with equipment and used as a quick-swap replacement, enabling rapid reconfiguration during installation or servicing. A self-wrap strip is included for securing AV devices and maintaining a clean, organised setup.
Features

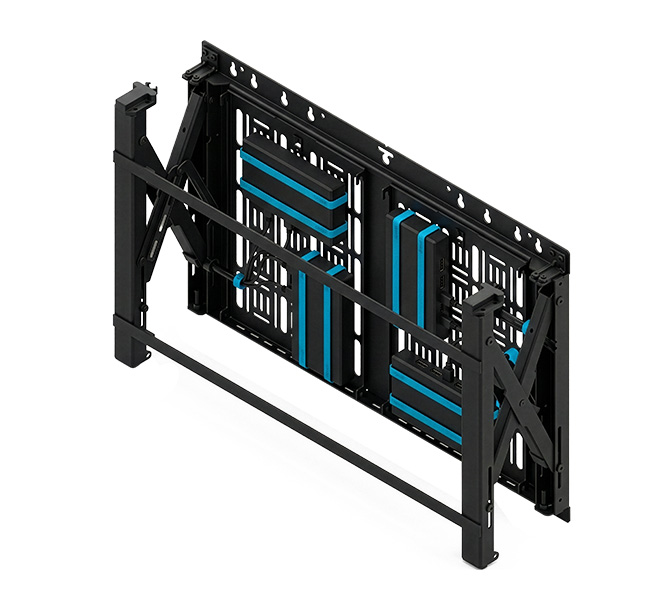

Compatible with the original BT7896 tray and can be fitted side-by-side inside the mount

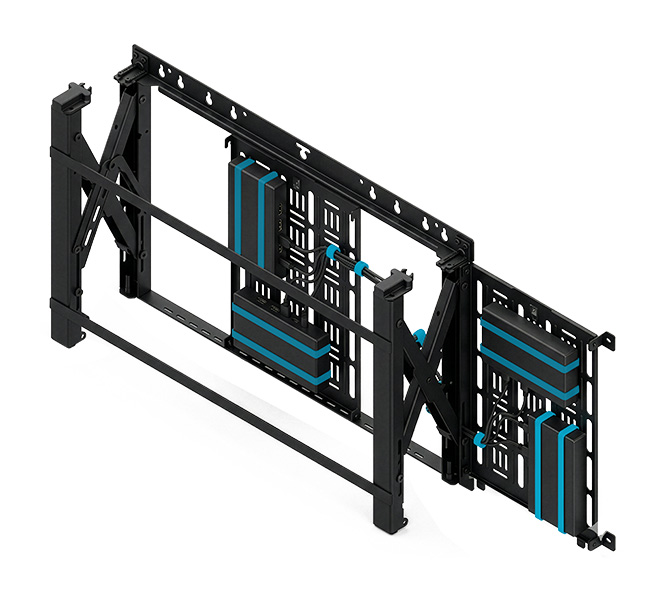

Optional side-mounting position provides extra flexibility when internal space is restricted
Ideal as a pre-loaded replacement tray for fast, tool-free equipment interchangeability

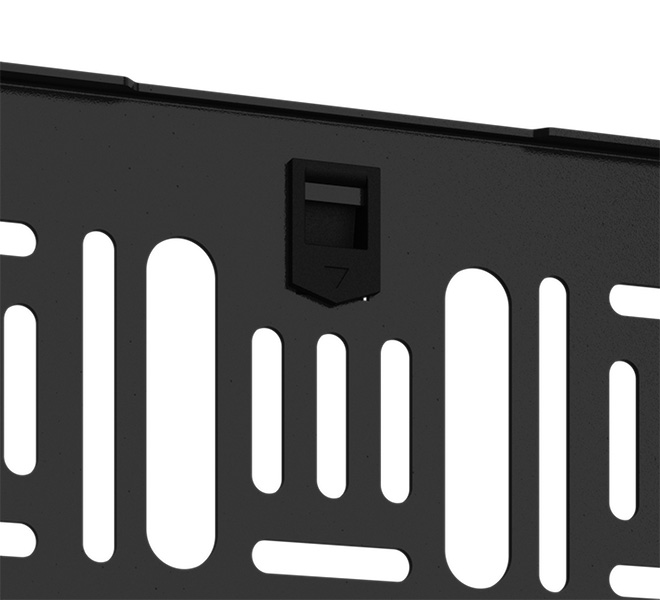

Quick-release mechanism allows the tray to be removed and swapped in seconds
Includes a self-wrap strip for secure device mounting and tidy cable management
Supplied in 100% plastic-free packaging
Specifications
Max storage load (inside BT7896) 5kg
Max storage load (side mounted) 10kg
Max equipment dimensions (inside BT7896): H: 392mm x W: 271mm x D: 31 - 104.5mm
Max equipment dimensions (when side mounted): H: 392mm x W: 271mm x D: 82 - 155.5mm
