BT7882/B AV Storage Cradle - Product - Midwich

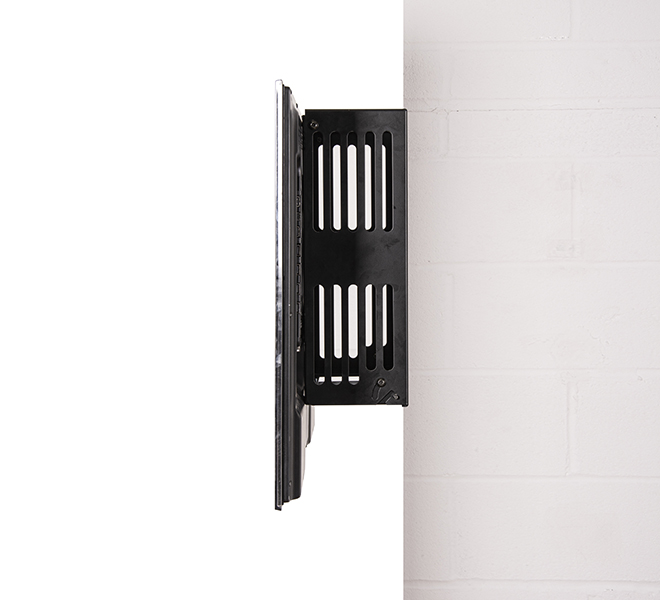

The BT7882 is the ideal solution for securing AV equipment designed to 1U, 2U & 3U rack specification onto B-Tech mounts, or directly to a wall if desired. An open framework design provides sufficient airflow to keep mounted devices cool and at the same time secure; preventing unauthorised removal through the use of pin hex security screws. The BT7882 can also be mounted onto Ø50mm poles, using B-Tech’s System 2 collars or directly onto System X mounting rails and columns.

Features

• Suitable for a wide range of AV equipment designed to 1U, 2U & 3U rack specification
• Screens can be fitted directly to the front of the cradle using VESA® 75, 100 or 200 fixings
• Tray opens 45° for easy access to equipment
• Compatible with B-Tech's System X range and B-Tech collars for pole mounted installations
• Can also be mounted directly to a wall
• Vented framework design for airflow
• Anti-theft lock helps to keep the device secure
• Keyhole mounting for a quick and easy installation

Specifications

• Max storage load: 15kg (33lbs)
• Max screen weight: 20kg (44lbs)
• VESA fixings: up to 400 x 200 (increased to 400 x 400 with BT7540)
• External dimensions: H:497mm (19.6") W:432mm (17") D:150mm (5.9")
• Max equipment dimensions: H:488mm (19.2") W:416mm (16.3") D:145mm (5.7")
