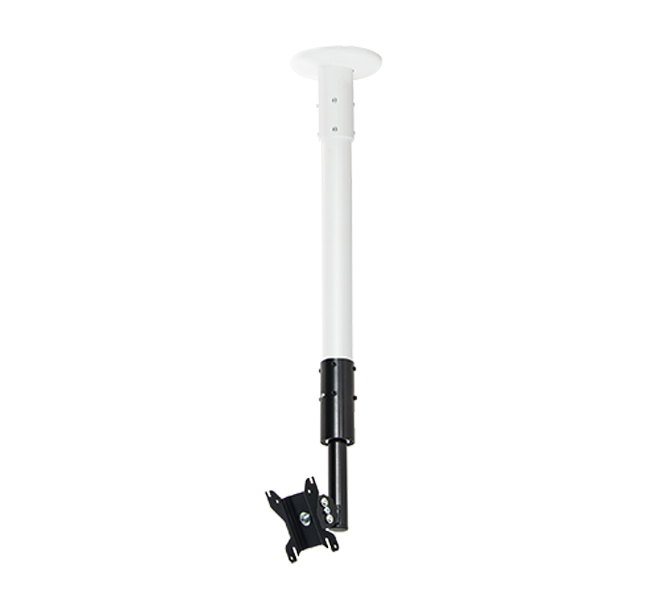

The BT7553 is a flat screen mounting solution which can be used to mount screens up to 23kg from the ceiling, floor, or to a desktop. With easy tool-less adjustment of tilt, swivel and screen rotation, this mount is ideal for landscape or portrait screen mounting and makes it quick and simple to switch between the two. The BT7553 is available with a choice of Black or Chrome poles in a variety of different lengths to suit your need.
Features
Mounts screens from the ceiling, floor or desktop
Tool-less tilt and swivel adjustment
Screen rotation allows screen to be positioned in a landscape or portrait orientation
Supplied with a safety bolt for secure pole mounting
Included grub screws allow micro-adjustment of pole angle
Integrated cable management
Simple ‘hook-on’ installation
Specifications
Recommended screen size: up to 32" (81.3cm)
Max load: 23kg (50lbs)
VESA® compatibility: 75mm x 75mm and 100mm x 100mm
Tilt as a ceiling mount: +90° / -15°
Tilt as a desk / floor mount: +15° / -90°
Swivel: 360°
Screen rotation: 360°
Pole lengths available: 0.5m, 1m, 1.5m, and 2m (19.7", 39.4", 59", 78.7")
