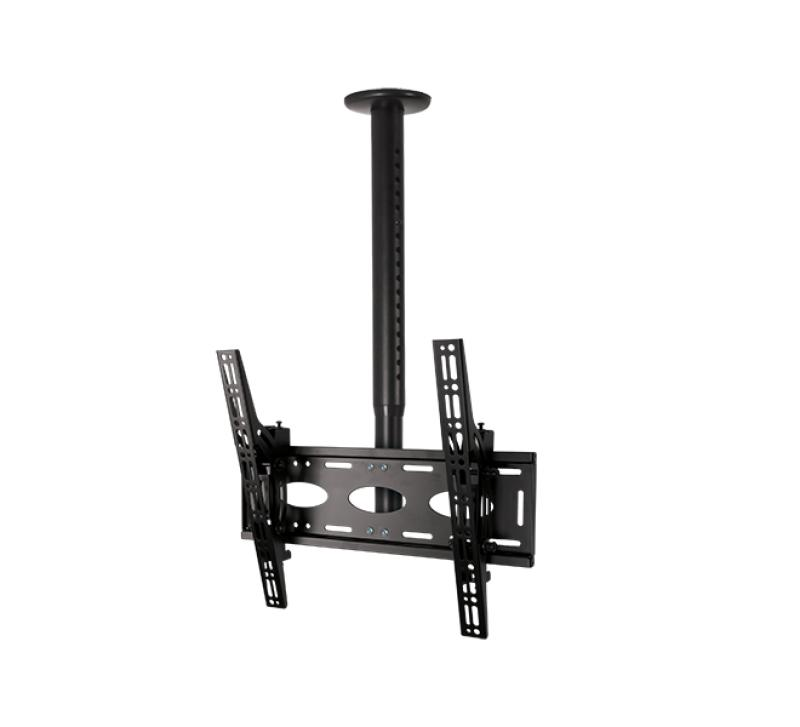

BT8426/B Adjustable Drop Universal Flat Screen Ceiling Mount - Product - Midwich

Designed to ceiling mount screens up to 50kg, the BT8426 features an adjustable drop of 625mm - 950mm in increments of 25mm. The mount uses B-Tech's unique 'Torsion-Tilt' mechanism for easy tilt up to +/-15°. Levelling screws are included on the interface arms to finely adjust the screen height and locking screws help prevent unauthorized removal of the screen. Cover plates are supplied for a neat and tidy installation.

Features

• Unique ‘Torsion-tilt’ mechanism for tool-less tilt adjustment
• Tool-less adjustable ceiling drop in increments of 25mm (1")
• Suitable for landscape or portrait mounting
• Arms feature levelling screws to adjust the screen height
• Lateral adjustment of screen once mounted
• Security screws help prevent unauthorized removal of screens
• Integrated cable management
• Cover plate included for a smart installation
• Simple ‘hook-on’ installation with all mounting hardware included

Specifications

• Recommended screen size: up to 65" (165cm)
• Max load: 50kg (110lbs)
• VESA® compatibility (as standard): up to 468mm x 400mm
• VESA® compatibility (with included adaptors): up to 600mm x 400mm
• Tilt adjustment: +/-15°
• Ceiling drop: Min. 625mm (24.6") - Max. 950mm (37.4")*
• Color: Black

     *From the ceiling to the center of the mount
