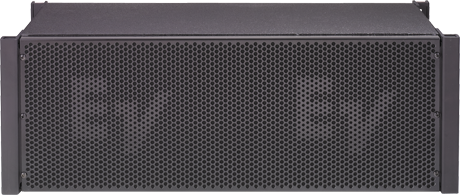

XLD281 3-Way, High-Output, Very Compact Line-Array Element - Product - Midwich

XLD281

120° horizontal, 3‑way compact line array element

• Full-bandwidth, three-way element (60 Hz - 20 kHz)
• CCT (Coverage Control Technology)
• Versatile subwoofer integration
• Bi-amp or tri-amp Operation
• Neodymium transducers
• Simple, quick, integrated rigging
• Supported by LAPS II aiming and flying software

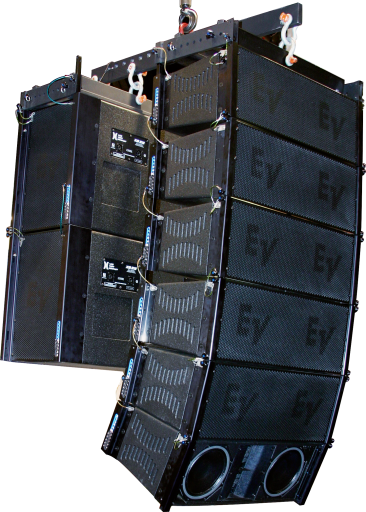

The XLD281 is a 3-way design using CCT (Coverage Control Technology) to control horizontal coverage to 200 Hz. It uses an 8 inch neodymium LF transducer, an 8 inch neodymium LF/MB transducer, and two neodymium 2 inch voice coil compression drivers combining through 2 hydra plane wave generators into a 120° x 10° waveguide. CCT uses both 8 inch transducers to provide maximum low frequency output and operating bandwidth while controlling horizontal beam width to 200 Hz by using DSP. The XLD281 can be used in tri-amp mode, or in bi-amp using a sophisticated internal passive network. Designed for use in arrays of four or more elements, the XLD281 delivers full bandwidth audio with precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance.
