High-performance, highly-scalable, AVoIP Wall Plate Encoder for 4K60 4:2:0 HDR10 over 1G network, with white Decora® Design Frame Sets - WP-SW2-EN7/US-D(W)

List $1,770.00
MAP $1,416.00

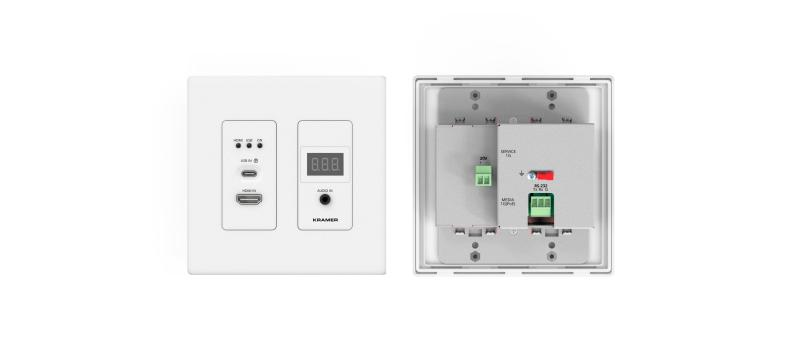

WP−SW2−EN7/US−D(W) is an advanced wall plate encoder for streaming 4K@60Hz (4:2:0) video signals via Ethernet over copper cable.

  •  Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
  •  HDR — Supports HDR10 up to 4K@30Hz 4:2:2 12bits.
  •  Streaming Support — Unicast and multicast.
  •  Multiple Inputs — One HDMI input and one USB–C input, which support multiple switching policy including Last connected, Priority and Manually.
  •  Analog Audio Embedding — Embed the unbalanced analog audio into the streaming and HDMI output signal.
  •  Convenient and Comprehensive Control — Control the unit using intuitive web interface, protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
  •  Control Gateway — Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
  •  PoE Support — Option to power with PoE connection from a PoE switch.

Shipping
Master product height 0.0
Shipping height (in.) 3.25
Master product width 0.0
Master carton quantity 1.0
Master product length 0.0
Quantity unit of measure EA
Shipping width 5.5
UPC code 7291063097578
Shipping depth 8.13
Shipping weight 1.35
Master product weight 0.0
EAN code 0
Country of origin CN
WP-SW2-EN7.pdf
