WP-580T/US/D(B) 4K60 4:2:0 HDMI Wall–Plate Transmitter with HDBaseT - Product - Midwich

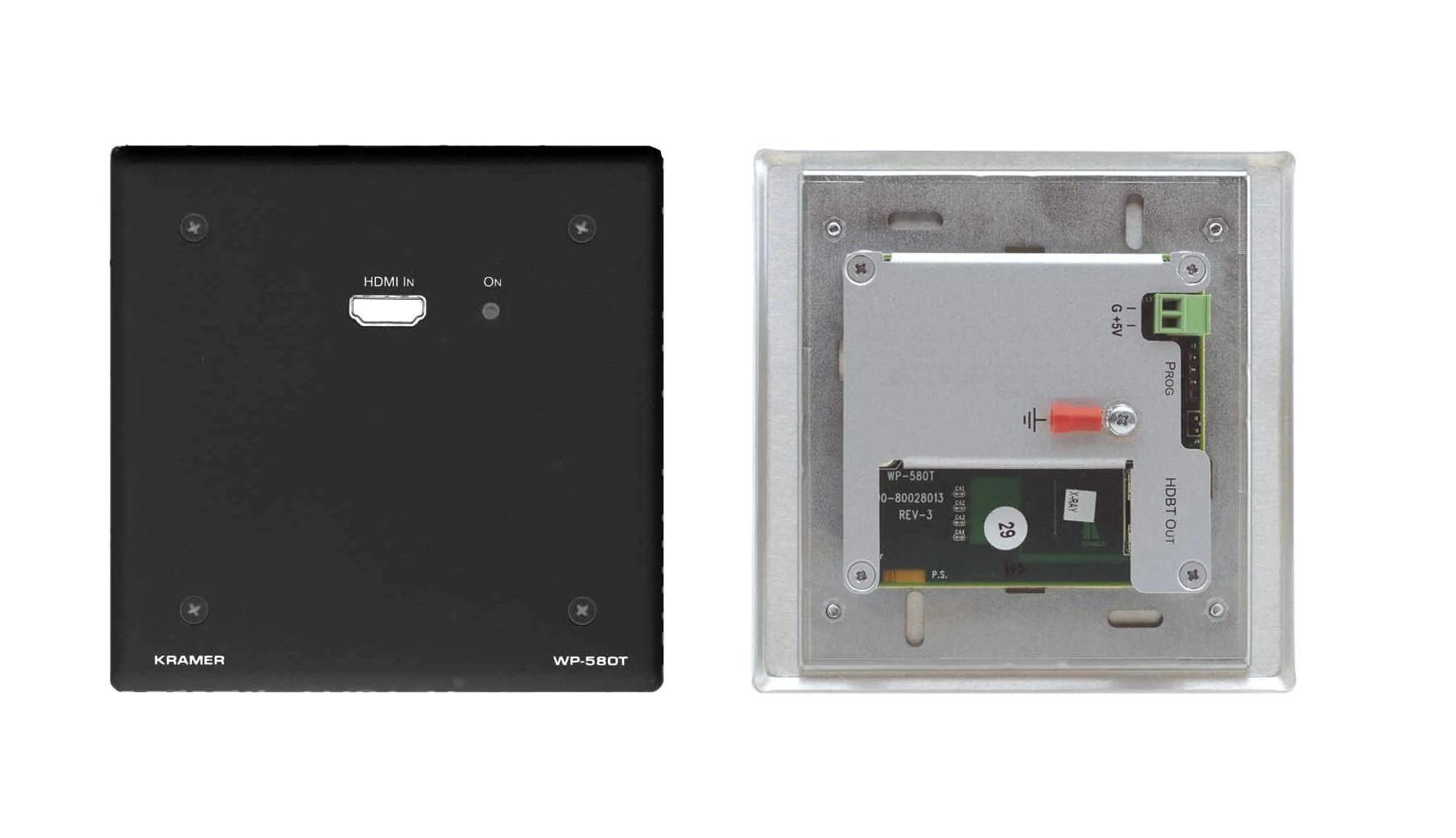

The WP−580T is a high−performance, HDBaseT twisted pair wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals. The WP−580T inputs the signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580R receiver. The WP–580T(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

•  Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
•  HDTV Compatible.
•  HDCP 2.2 Compliance.
•  HDBaseT™ Technology.
•  HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD, CEC.
•  3D Pass–Through.
•  EDID PassThru — Passes EDID signals between the source and display.
•  2K & 4K Support.
•  System Range — Up to 70m (230ft).
•  Cable — For optimum range and performance using HDBaseT™, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non–Kramer CAT 6 cable may not reach these ranges.
•  Indicators — Status LEDs for input, output, link and power.
•  Dimensions — 12.4cm x 3.12cm x 7.9cm (4.88" x  1.29"  x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).
