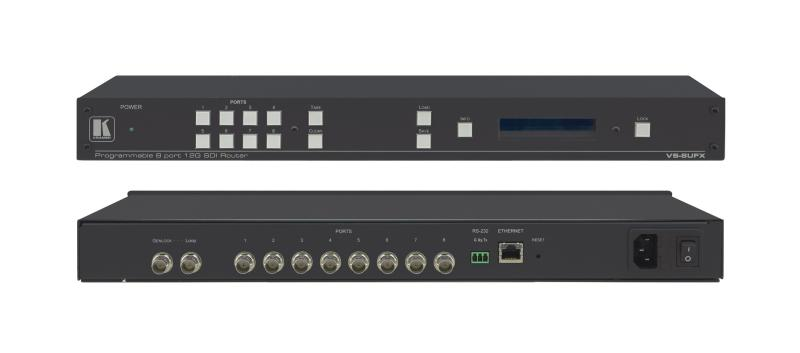

VS−8UFX is an 8−port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input−output combination. VS−8UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

•  Max. Data Rate — 12Gbps.
•  HDTV Compatible.
•  Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
•  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  Supports ANC Data — Embedded audio, teletext, time code, etc.
•  Cable Equalization — Up to 300m for SD signals, 200m for 1.5G HD signals, 100m for 3G and 6G signals, and 80m for 12G signals.
•  Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
•  Versatile Genlocking — Using an analog signal.
•  Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.
