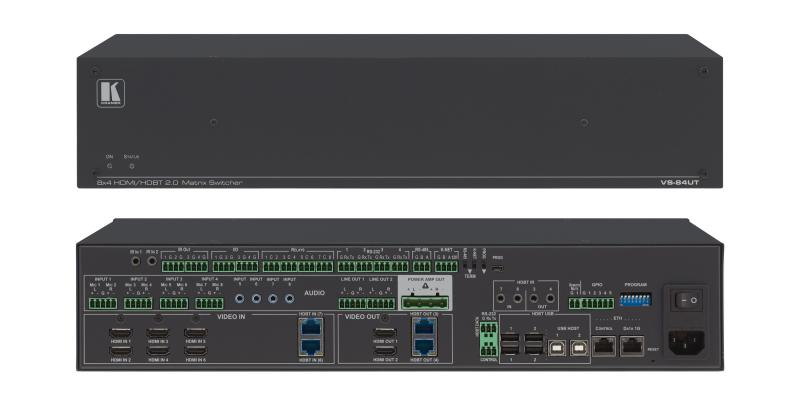

VS-84UT/110V 8x4 HDMI, HDBaseT & Audio Matrix Switcher - Product - Midwich

VS−84UT is an all−in−one 4K@60Hz (4:2:0) audio−video presentation system with integrated range extension and an integrated control system master. The unit switches the video, embeds the audio, and outputs the signal to both HDMI™ and HDBaseT 2.0 with USB extension and PoE on the HDBaseT output ports. Outstanding audio support includes balanced stereo audio, unbalanced stereo audio, and de−embedded audio sources that output to embedded audio, balanced stereo audio as well as a power amplified audio output. VS−84UT includes a master room controller that can operate over Ethernet (LAN) with control ports that include: one bidirectional RS−485, four RS−232, four IR, four GPI/O, and eight relays to control a wide variety of AV devices. It includes a KNET™ connector interface that enables access to the master controller from auxiliary room controllers such as control keypads. The unit can also provide power to auxiliary room controllers via the KNET™ connectors. VS−84UT includes an Ethernet gateway to control and manage remote I/O ports. *****The control ports are for K−Config only and not compatible with Kramer Control.*****
