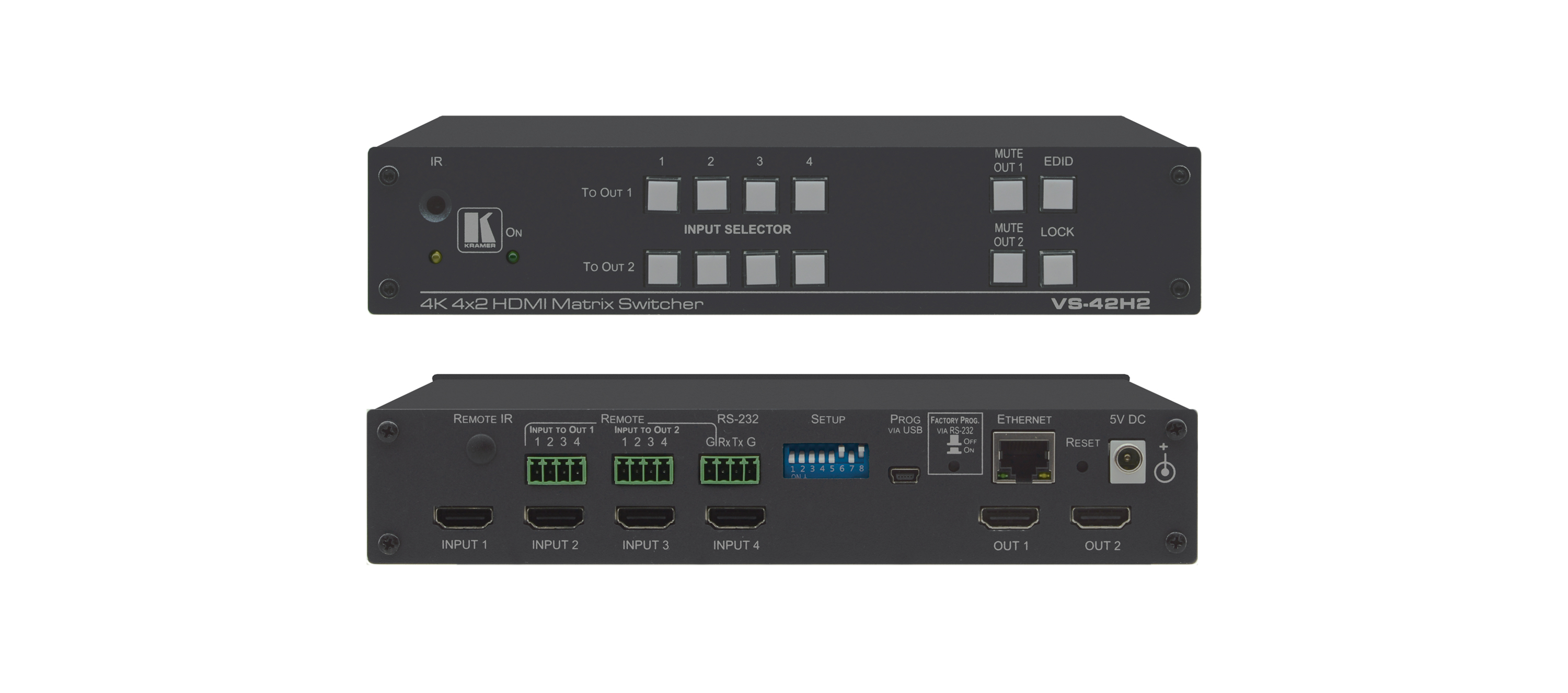

VS-42H2 VS-42H24x2 4K HDR HDMI HDCP 2.2 Matrix Switcher - Product - Midwich

VS−42H2 is a high−performance 4x2 matrix switcher for 4K HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously.

•  High–Performance AV Matrix — Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant signals to 2 18G 4K@60Hz (4:4:4) HDR HDMI HDCP–compliant outputs at up to 18G data rate. Signals are HDCP 2.2/1.4 compliant.
•  Kramer Equalization & reKlocking™ Technology — Rebuilds the digital signal to travel longer distances.
•  EDID Management — Individual EDID management per input. Captures and stores the EDID from a display device.
•  Flexible Content Protection — Selectable HDCP per input.
•  Quick Access to Common Configurations — Save up to six preset configurations.
•  Convenient Unit Control and Configuration — Local control via front panel switching, mute, lock and EDID buttons, and IR remote control. Distance control via user–friendly embedded web pages via the Ethernet, Protocol 3000 API, and RS–232 serial commands transmitted by a PC, touch screen system or other serial controller.
•  Cost–Effective Maintenance — Power status, IR and Input Selection indicators facilitate easy local maintenance and troubleshooting. Local firmware upgrade via USB or RS–232 connection ensures lasting, field–proven deployment.
•  Easy Installation — Half–19” size enables mounting in a 1U rack space with the recommended rack adapter.
