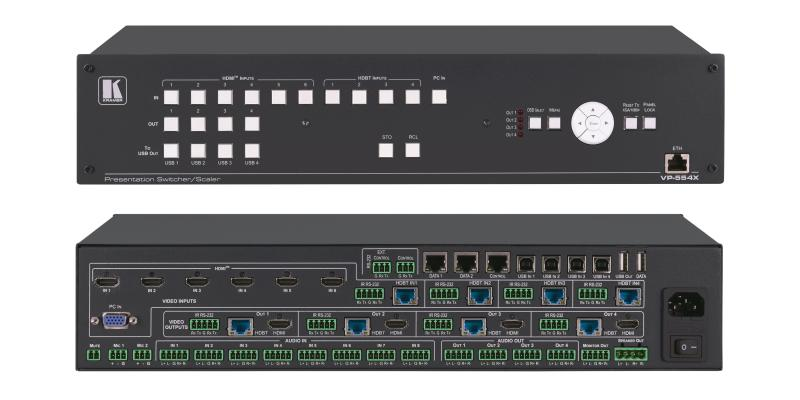

VP-554X 11x4:2 Presentation Boardroom Router / Scaler System - Product - Midwich

The VP−554X is a high−performance presentation scaler/switcher with 4 pairs of independent and scaled outputs. It includes multiple HDMI and HDBaseT inputs – supporting resolutions up to 4K – as well as a legacy VGA input, and each of the 4 outputs is mirrored on both HDMI and HDBT.

VP−554X supports embedded and balanced analog stereo audio, up to 2 microphone inputs, DSP audio features and a built−in stereo power amplifier. It includes a built−in Ethernet switch and supports legacy RS−232, and IR, Ethernet and RS−232 tunneling over HDBT.

• Pix–Perfect™ Scaling Technology
• HDBaseT Input and Output Range — up to 100m at 4K@60 (330ft)
• PoE support for each HDBaseT port
• Minimal latency, Clean Switching Transitions
• Rich Audio Processing
• Selectable Microphone Talkover or Mix Modes
• Built–in Power Amplifier
• Built–in ProcAmp
• 2x2 Videowall option
• Front panel control with OSD (On Screen Display)
• Control — RS–232, Ethernet with built–in Web pages
• 4x1 USB Switcher
