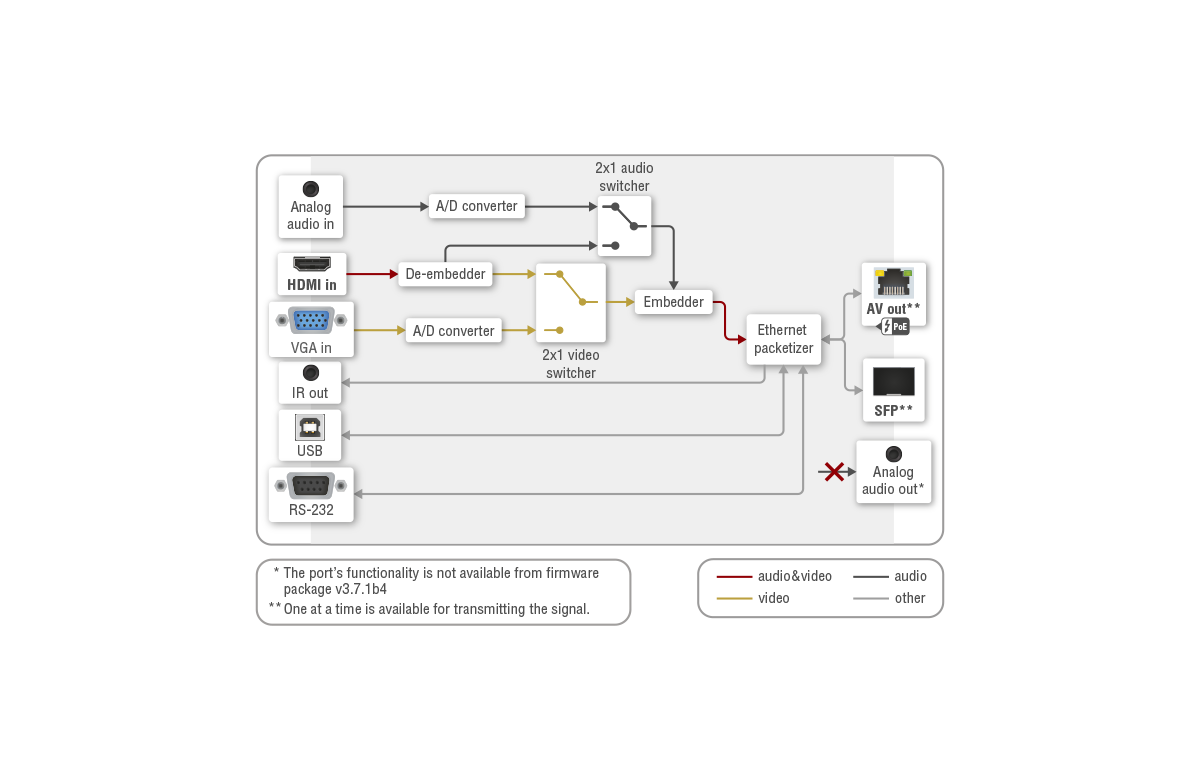

The operation of VINX-210AP-HDMI-ENC, VINX-120AP-HDMI-ENC and VINX-110AP-HDMI-DEC, can be expanded from a simple point-to-point application to unlimited endpoints for the ultimate in virtual matrix switching, digital signage and signal extension. The extenders include our Advanced EDID Management system and decoders are capable of scaling the video signal up to the maximum supported resolution of 4K UHD @ 30 Hz. RS-232 and IR control channels are supported. The built-in USB ports support KVM function and can also handle USB 2.0 mass storage. The units are HDCP compliant. These models feature options for fiber optical transmission in the form of an SFP port, audio embedding and de-embedding, and also return audio features. These VINX devices can be powered by PoE remote powering. Contrary to common belief, PoE systems, like VINX, can run on much less power than PoE+ devices, contributing to carbon footprint reduction and energy saving. Nevertheless, VINX devices can also receive power from PoE+ sources as well. While VINX-210AP-HDMI-ENC has a direct VGA input port, VINX-120AP-HDMI-ENC features a local HDMI output port for monitoring.

Silent Operation

The efficient design of all VINX models allows passive, fanless cooling. VINX have noiseless operation, fitting even the most silent application environments.

Features

• USB 1.1K+M (HID) extension
• USB 2.0 MSC (Mass Storage Class) extension
• Audio embedding or replace original audio
• Built-in website for device configurations
• Can be remote powered through CATx cable PoE PD
