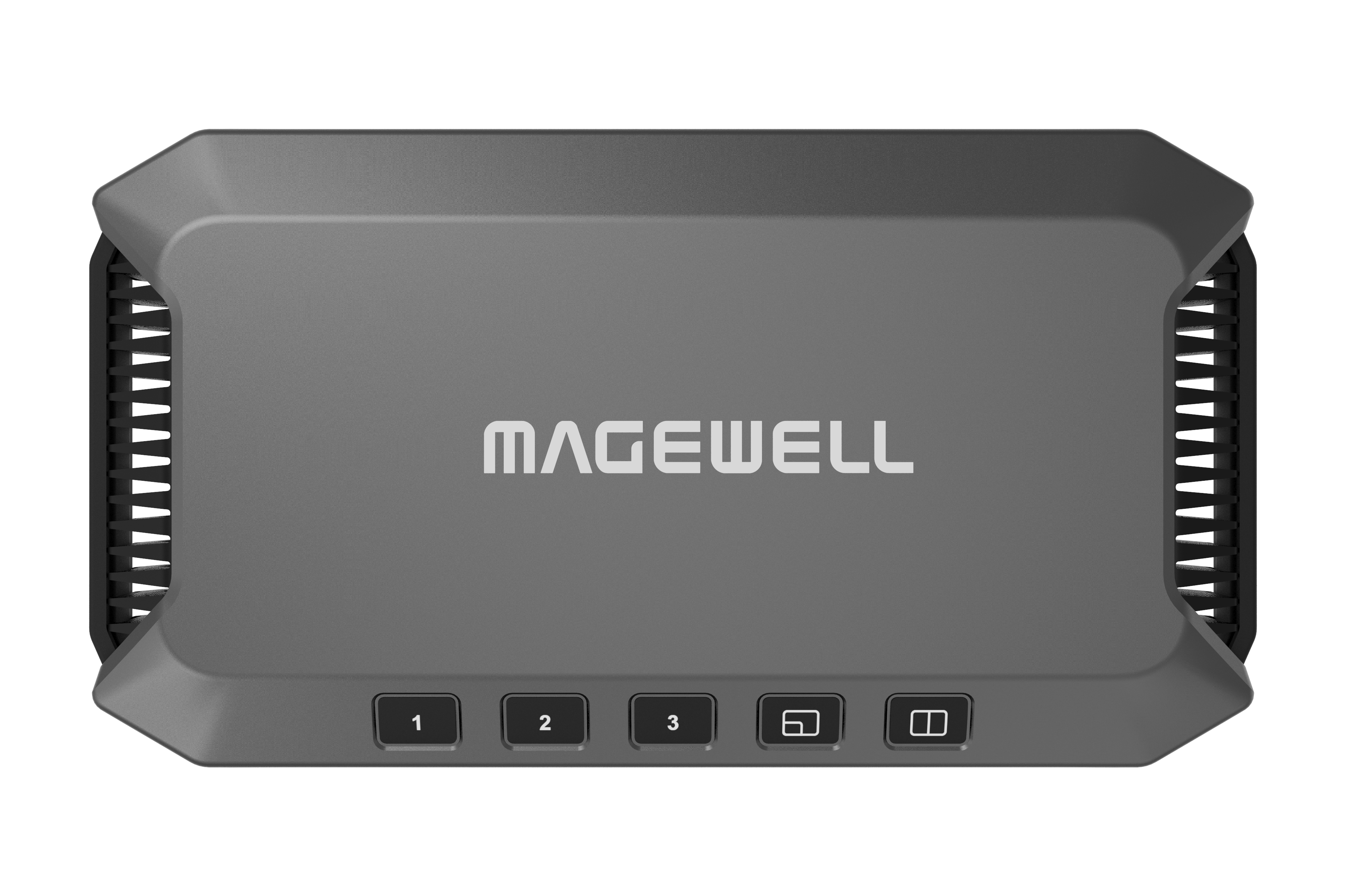

Magewell Multi-input USB video capture device with integrated switching and layout control. - USB Fusion

List $1,375.00
MAP $1,375.00

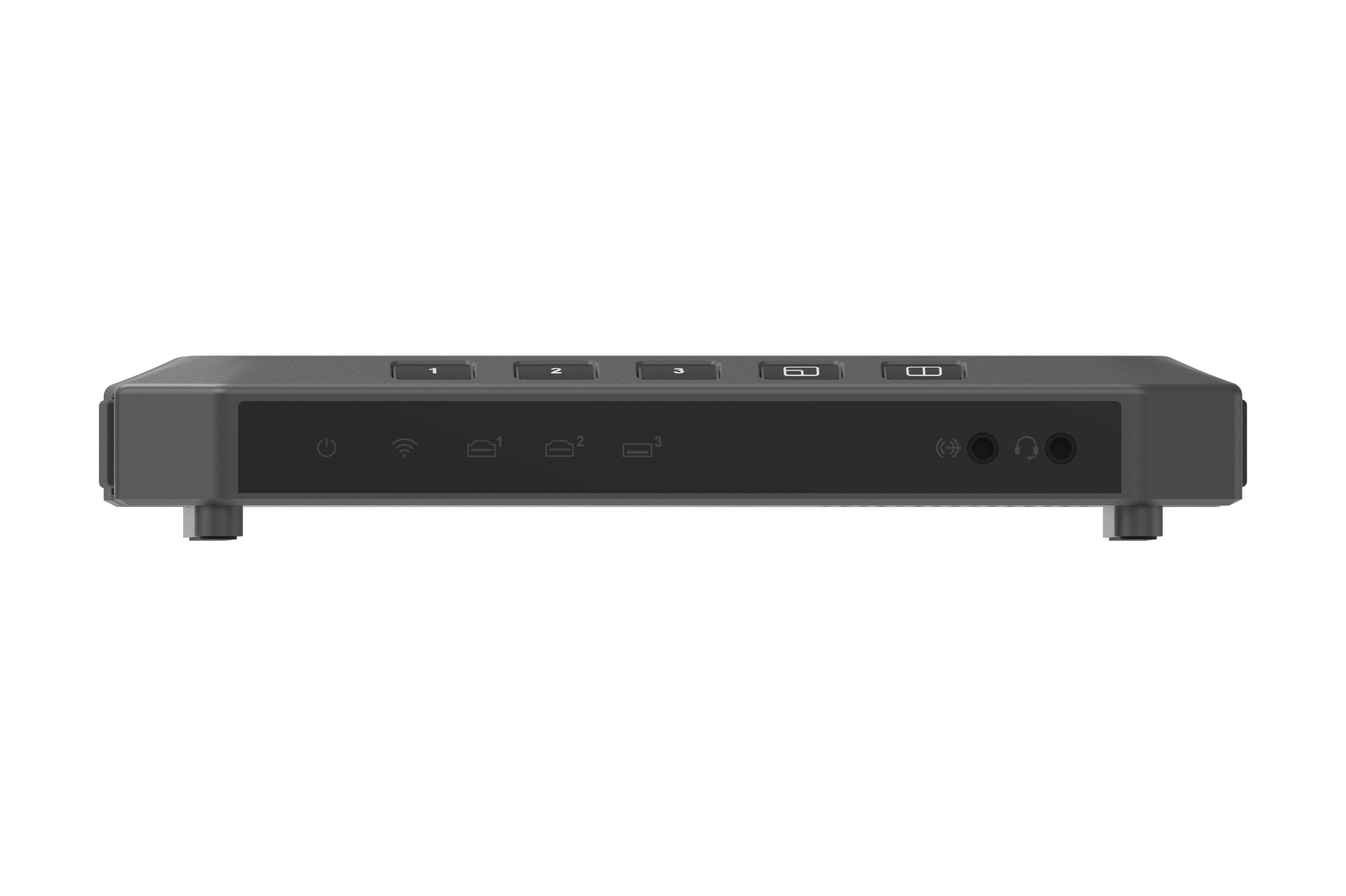

Multi-input USB video capture device with integrated switching and layout control. Dual HDMI inputs and USB webcam input, plus line audio in / headset audio out. Video mixing (PIP, custom layout), simultaneous HDMI and USB output supported. Device control through iPad app or on board buttons.

Combines live video sources for a more engaging presentation

  • Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
  • Switches between sources or combines two simultaneously into one output
  • Companion tablet app for more advanced features

USB Fusion

USB Fusion hardware lets you easily combine cameras, screenshares and media file sources into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.

Capture and Combine Sources

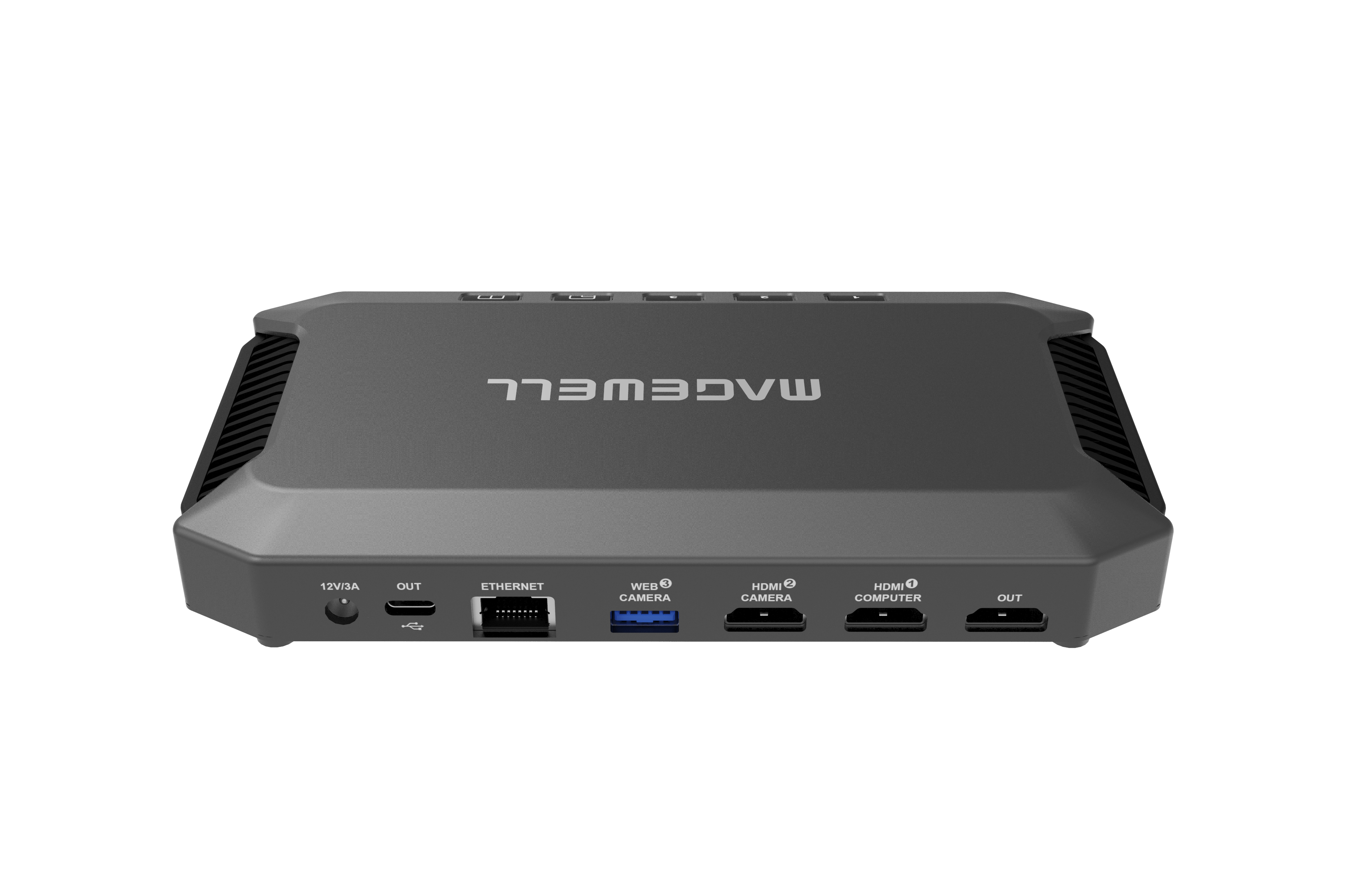

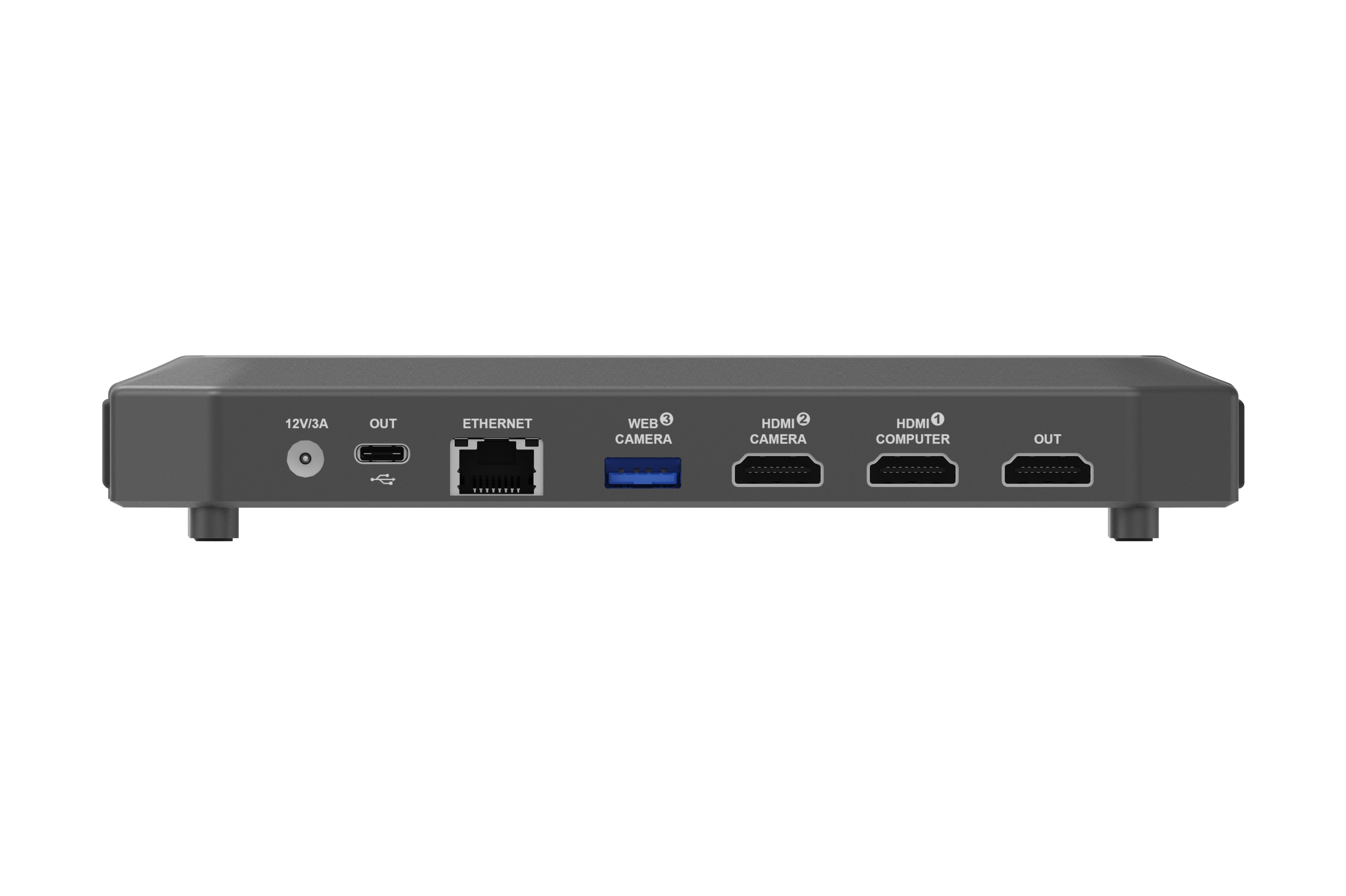

USB Fusion lets producers and presenters switch between multiple live and file-based sources, or to combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface. USB Fusion offers two 1080p60 HDMI inputs plus one USB webcam input. It also supports wireless sharing input protocols including AirPlay®, Google Cast™ and Miracast™. Users can easily switch or combine sources via on-device buttons or the companion tablet app.

MFG PART # 35060

Shipping
Master product height 0.0
Shipping height (in.) 0.0
Master product width 0.0
Master carton quantity 1.0
Master product length 0.0
Quantity unit of measure EA
Shipping width 0.0
UPC code 0814395021409
Shipping depth 0.0
Shipping weight 0.0
Master product weight 0.0
USBFusion_Specs_en.pdf
