Q-SYS 4x2 Channel Dual Gang, Dante/AES67 US Wall Plate 4 Mic/Line In (XLR), Phoenix I/O, PoE - unDX4I

List $1,230.00
MAP $1,230.00

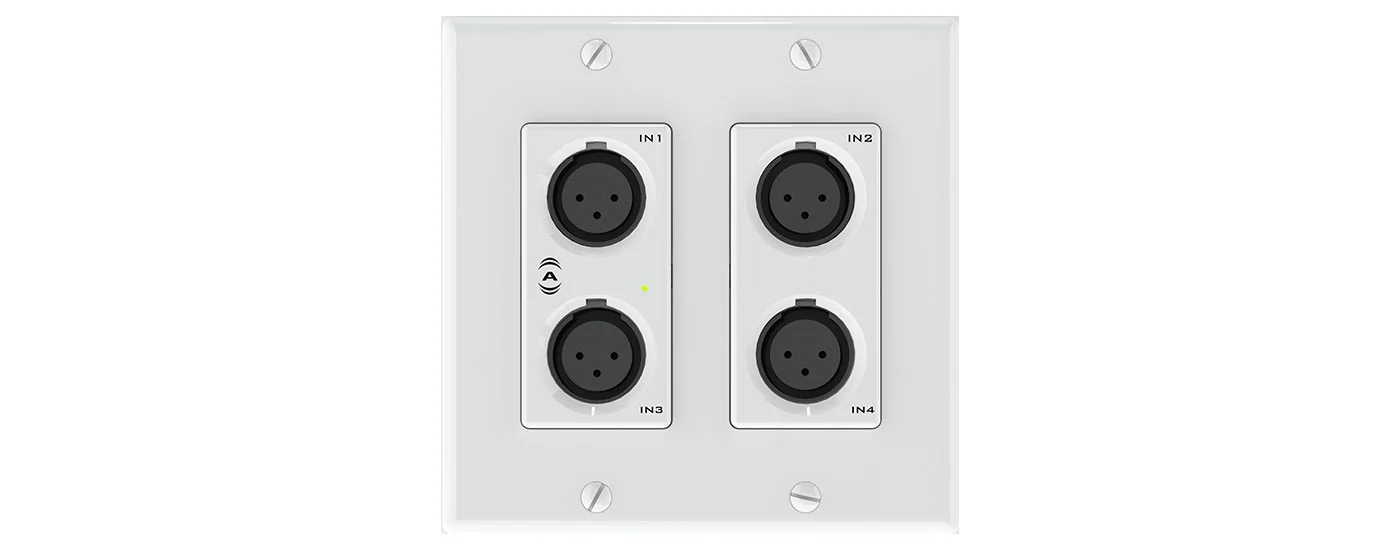

The Attero Tech unDX4I is a cost-effective multi-IO Dante network audio I/O wall plate, featuring four balanced mic/line XLR inputs and two balanced line outputs on a Phoenix connector. Designed to fit into most dual gang US junction boxes, the unDX4I is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX4I’s size and I/O density make it easy to put Dante connectivity wherever it’s needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

Features:

  • Dante Domain Manager ready
  • Four balanced XLR mic/line inputs
  • Two balanced line outputs on Phoenix depluggable connectors
  • PoE powered
  • Three software-adjustable input gains accommodate common line levels, phantom power and dynamic microphones.
  • +48 V phantom power per channel
  • Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design

Shipping
Master product height 0.0
Shipping height (in.) 4.0
Master product width 0.0
Master carton quantity 1.0
Master product length 0.0
Quantity unit of measure EA
Shipping width 6.0
Shipping depth 6.0
Shipping weight 1.2
Master product weight 0.0
Harmonize code 8517.62.0090
Country of origin US
q_dn_undx4i_specs.pdf
