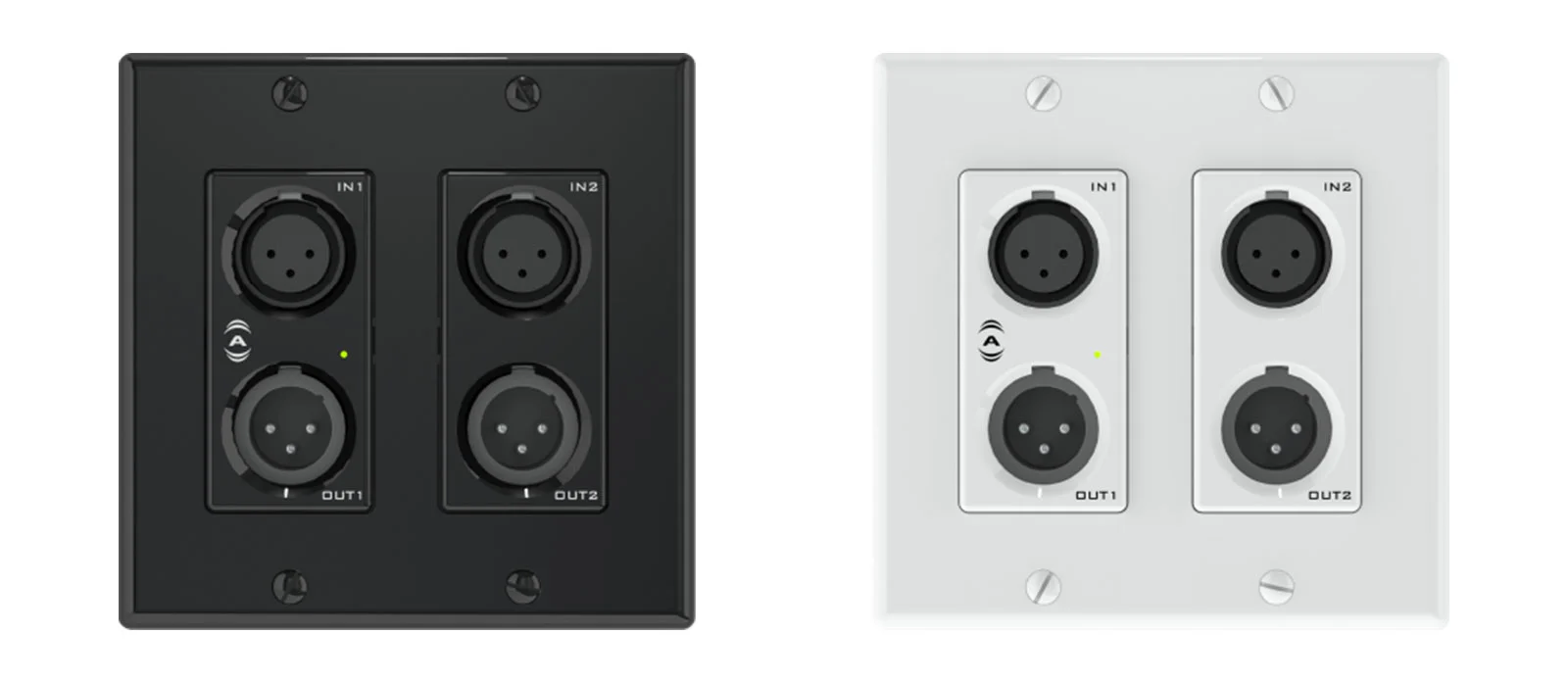

The unDX2IO+ is a cost-effective multi-IO Dante™ audio network wallplate, featuring two balanced mic/line XLR inputs, two balanced XLR line outputs and two balanced line level inputs. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings and old work brackets. This accessory is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT-5/6 cable.

Features:

• Dante Domain Manager™ ready
• Small form factor allows for easy co-location near analog sources or sinks
• PoE powered (802.3af)
• Four input gains to accommodate common line levels and dynamics
• +48 V phantom power per channel
• Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment - both consumer and professional levels
• Industry standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
• Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
