UHDS-OUT2-F16/STANDALONE 2–Channel 4K HDMI Scaler–Switcher Output Card - Product - Midwich

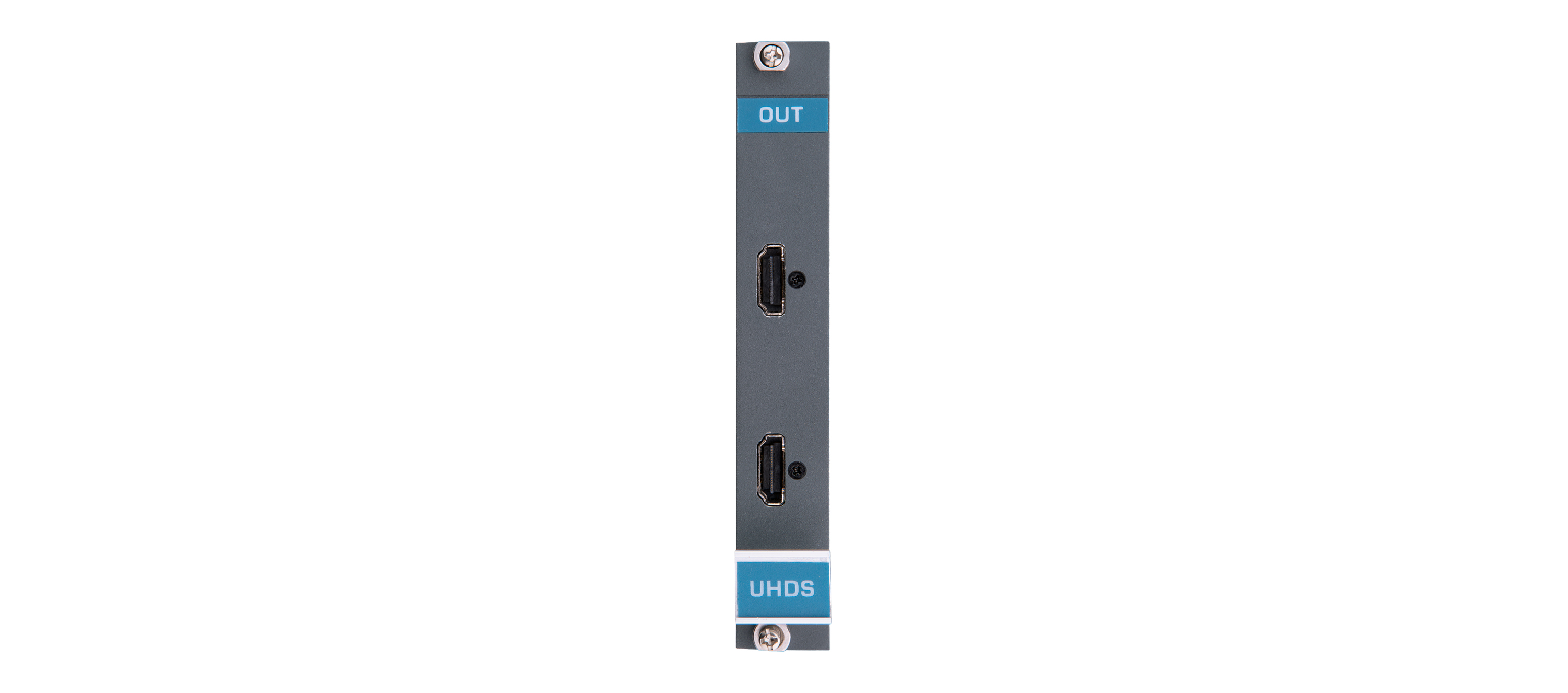

UHDS−OUT2−F16 is a two−channel HDMI scaler card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The card scales each output signal separately to a set resolution, aspect ratio and color depth according to the native requirements of the screen or to a user setting. The scaling ensures ultra−fast switching by eliminating dependency on the display's scaling capabilities while keeping a constant output signal. In addition, it features immediate (between frame) cut switching between both ports on the same card for live−event switching/scaling.

•  Max. Data Rate — 8.91Gbps (2.97Gbps per graphic channel)
•  Max. Scaled Output Resolution — 4K@30Hz (4:4:4)
•  Max. Input Resolution — 4K@30Hz (4:4:4)
•  HDMI, HDCP, EDID Support.
•  Immediate Frame–to–Frame Switching Support.
