UHDA-OUT4-F32/STANDALONE 4–Channel 4K60 4:2:0 HDMI Output Card with Selectable Embedded, De–embedded or ARC Analog Audio - Product - Midwich

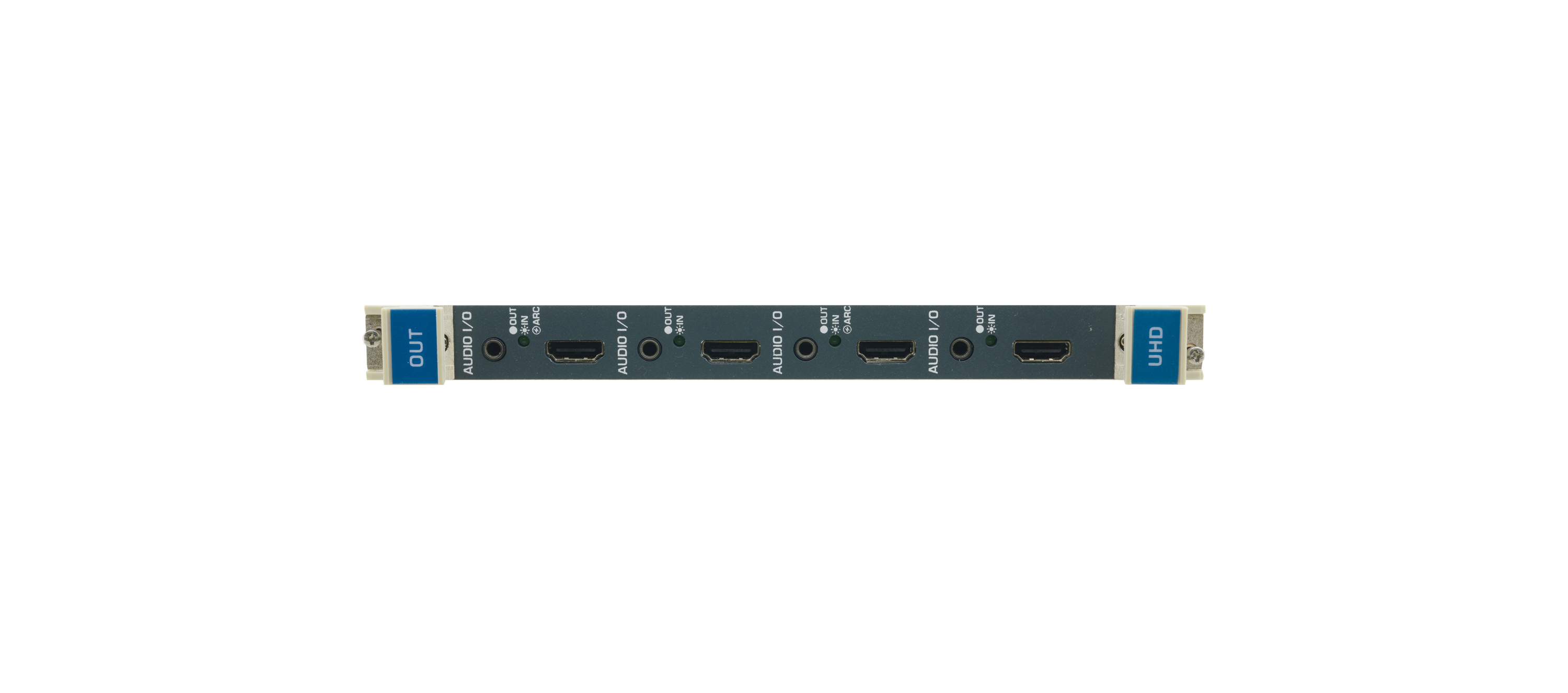

UHDA−OUT4−F32 is a four−channel 4K@60Hz (4:2:0) HDMI output card with configurable analog audio features for the VS−3232DN−EM Modular Multi−Format Digital Matrix Switcher. UHDA−OUT4−F32 outputs four 4K HDMI signals with selectable embedded, de−embedded, or ARC unbalanced stereo analog audio.

•  Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
•  Max. Resolution — 4K@60Hz (4:2:0).
•  HDMI Support — 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
•  Selectable Analog Audio Mode — On the top and third jacks, select embedded, de–embedded or ARC. On the second and bottom jacks, select embedded or de–embedded.
•  HDTV Compatible.
•  HDCP Compliant.
•  3D Pass–Through.
•  EDID Capture — Copies and stores the EDID from a display device.
•  Kramer Equalization and re–Klocking Technology.
