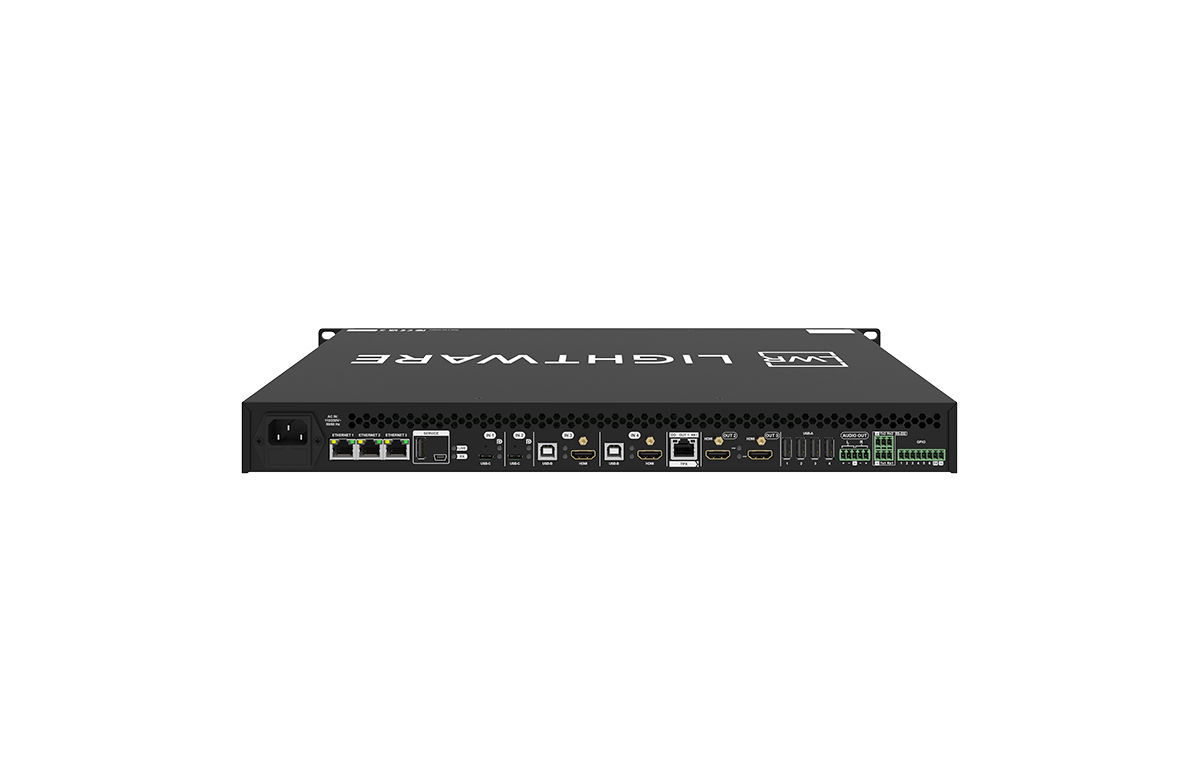

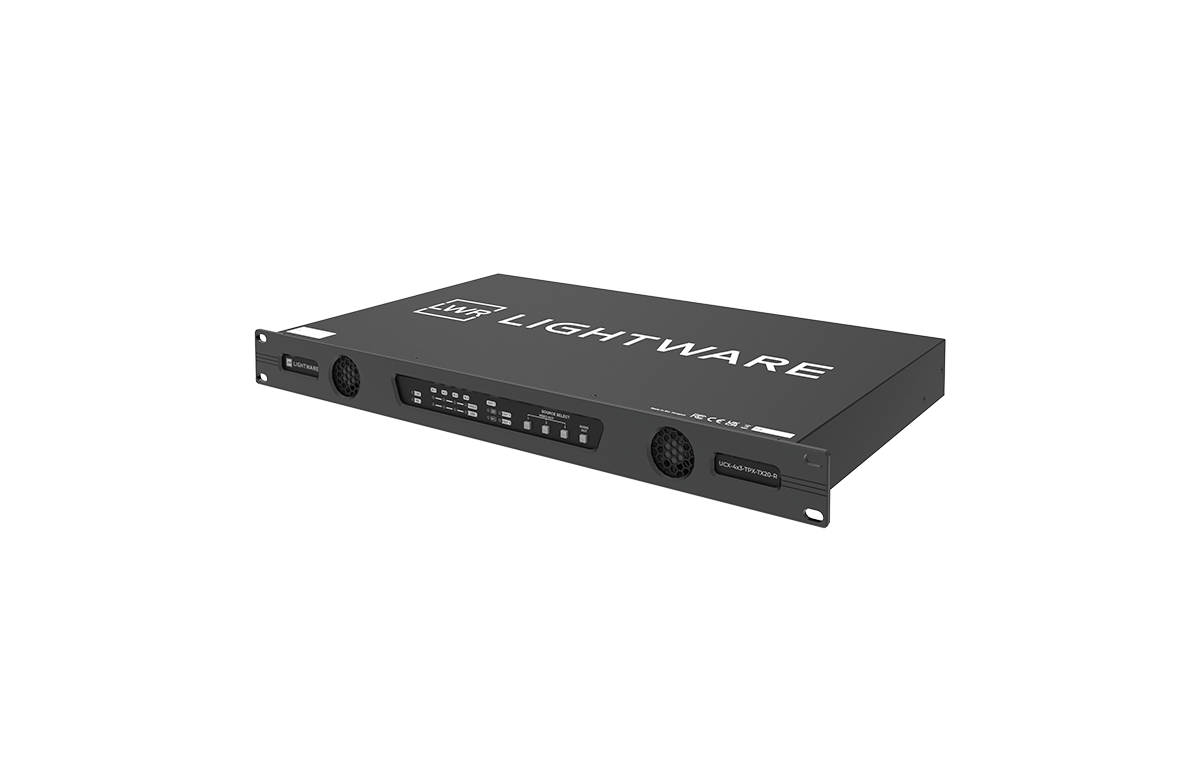

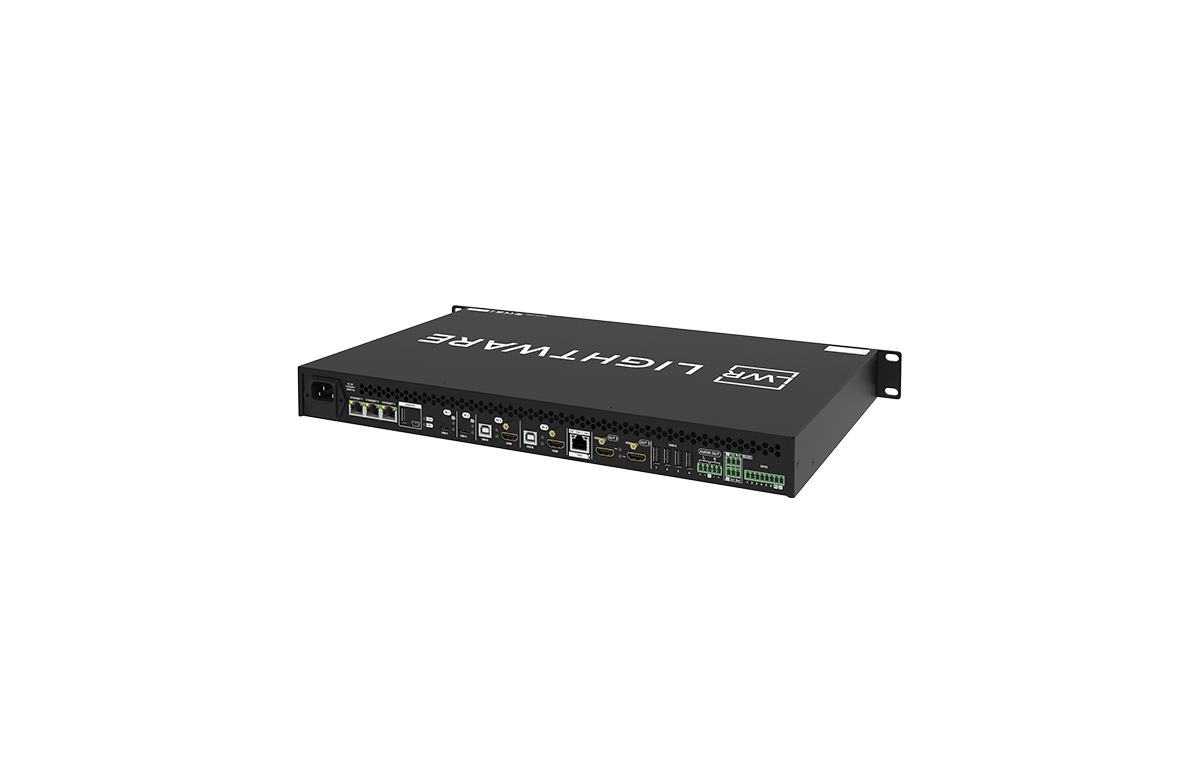

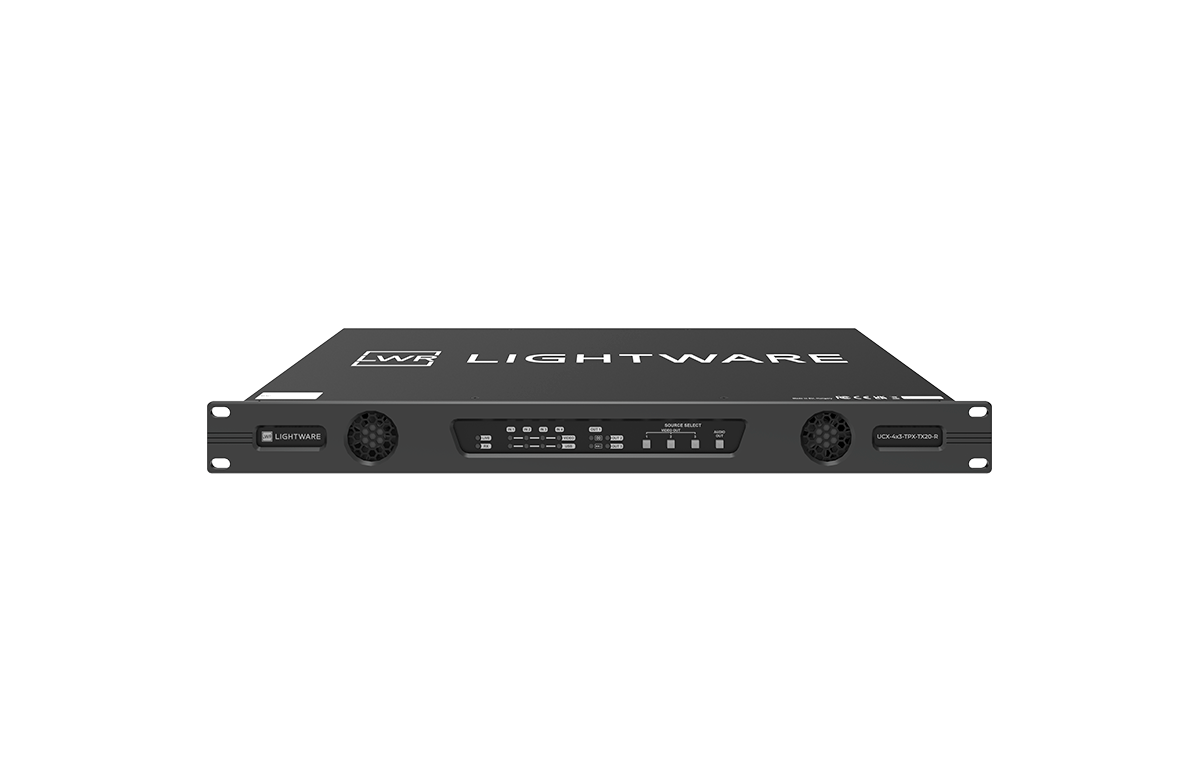

1 RU sized rack mountable Taurus UCX 4x3 switcher with TPN, USB-C, HDMI 2.0 and USB 2.0 ports. Full 4K HDMI 2.0 TPN transmitter (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps). USB-C connectivity for video, audio, USB 2.0 signals and charging via USB-C up to 2 x 100W. POE at ethernet port. 10 GbE Port for SDVoE network connection with 4K video and USB 2.0 transmission. Advanced automated room automation/control features.

Rack-mountable universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks. All the cabling on the rear and internal power supply allow easy installation in racks, lecterns or credenzas. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and the USB 2.0 data in the other up to a transmission distance of 100m.

Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.

Supporting 5K

Taurus devices deliver flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, Taurus provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.

Features

• USB-C charging up to 100W, with 120W total output
• Over a single USB-C connection Dual port Video, Audio, Data and Charging Power
• Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
• Room device control Via Ethernet (TCP/IP), Serial, OCS or local GPIOs
• Independent USB Host switching layer for for multiple USB hosts, for devices connected to TPN receivers and for 4 devices at TX side
• Allows transmission of USB-C, HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
• SDVoE Control Integrated SDVoE Control Server
• Supports HDMI 5K signal formats 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
