Lightware UCX-4x3-TPN-TX20

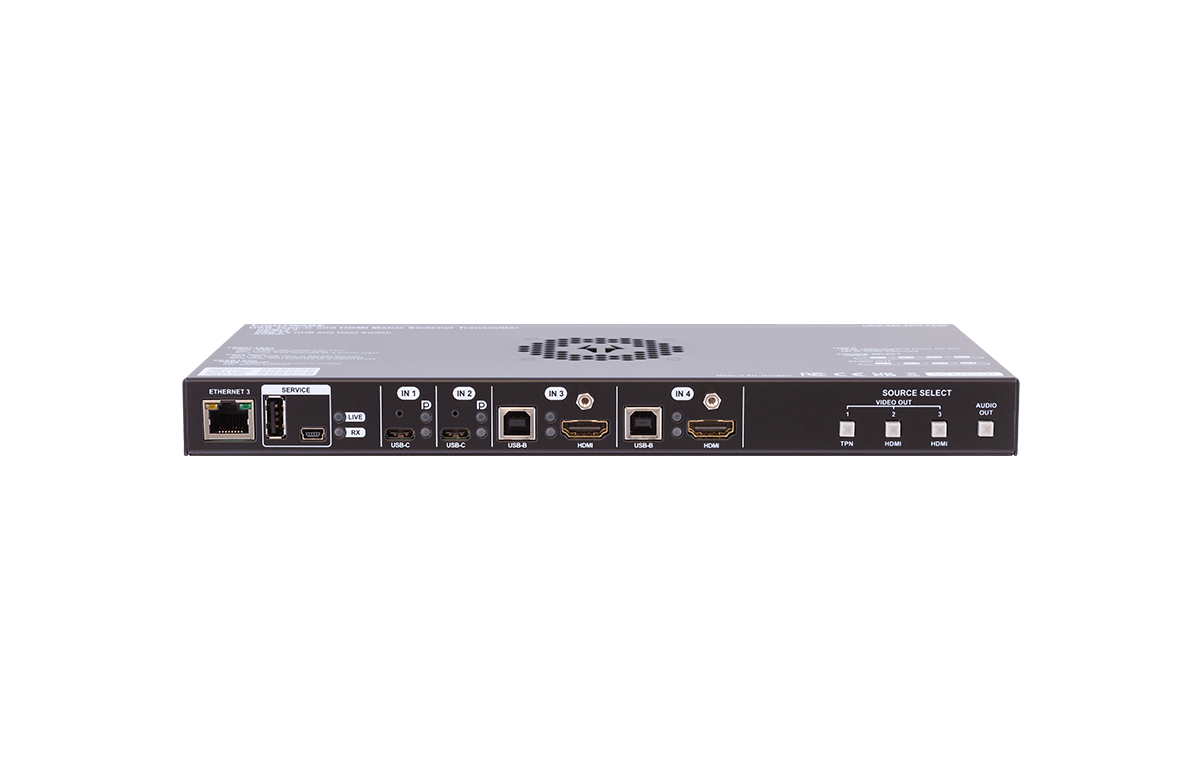

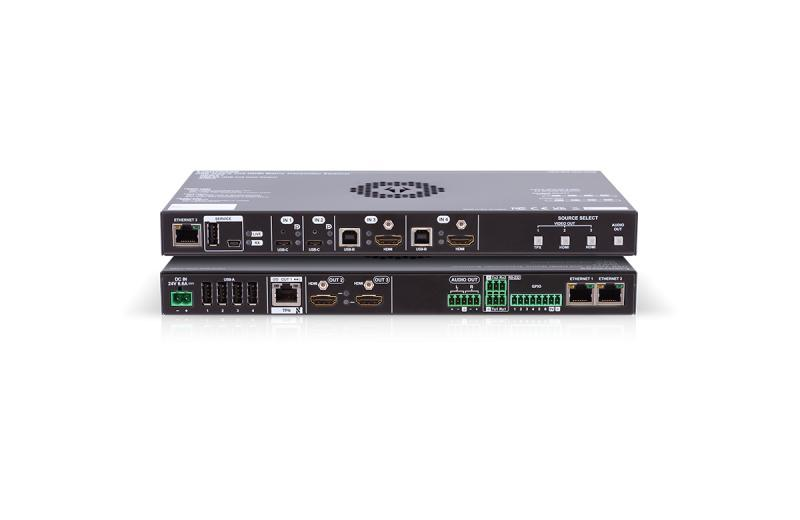

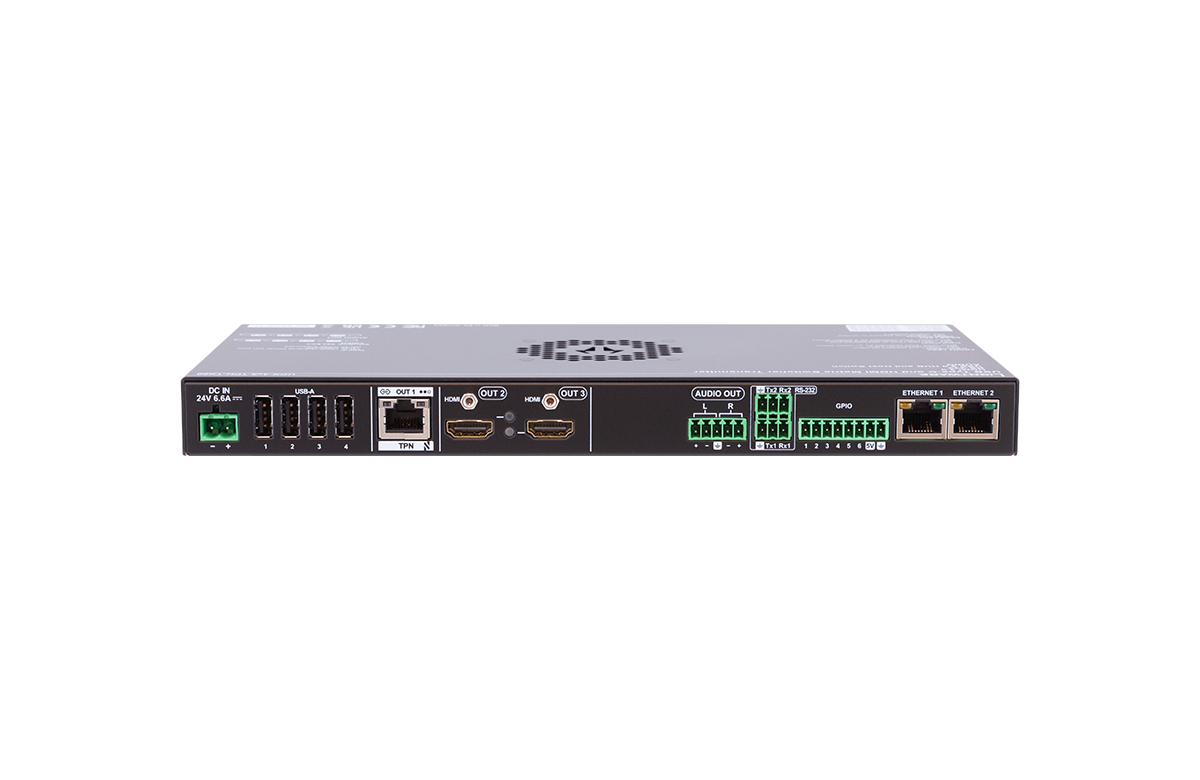

Lightware UCX-4x3-TPN-TX20 USB Type-C and HDMI Matrix Transmitter Switcher - 91310097
Taurus UCX 4x3 switcher with TPN, USB-C, HDMI 2.0 and USB 2.0 ports. Full 4K HDMI 2.0 TPN transmitter (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps). USB-C connectivity for video, audio, USB 2.0 signals and charging via USB-C up to 100W. 10 GbE Port for SDVoE network connection with 4K video and USB 2.0 transmission. Advanced automated room automation/control features.
Bring Collaboration Spaces to the Next Level

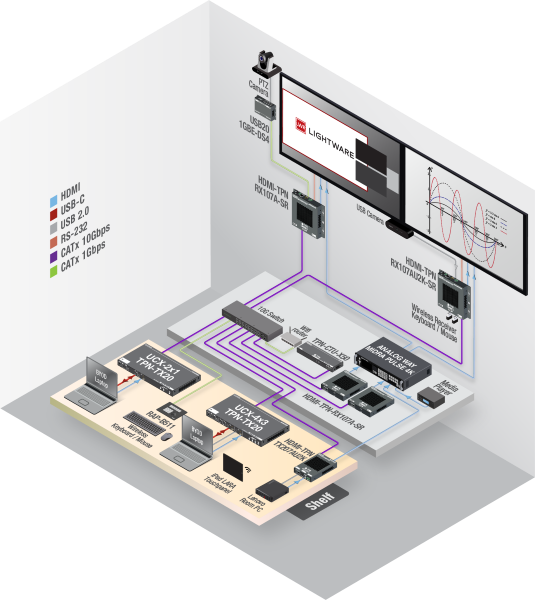

Universal transmitter switcher is part of the AV over IP ecosystem with SDVoE technology that provides the same functionality as the UCX product range from a single source to multiple destinations through 10G Ethernet networks.
- UCX-TPN combines Full-Featured USB-C and SDVoE

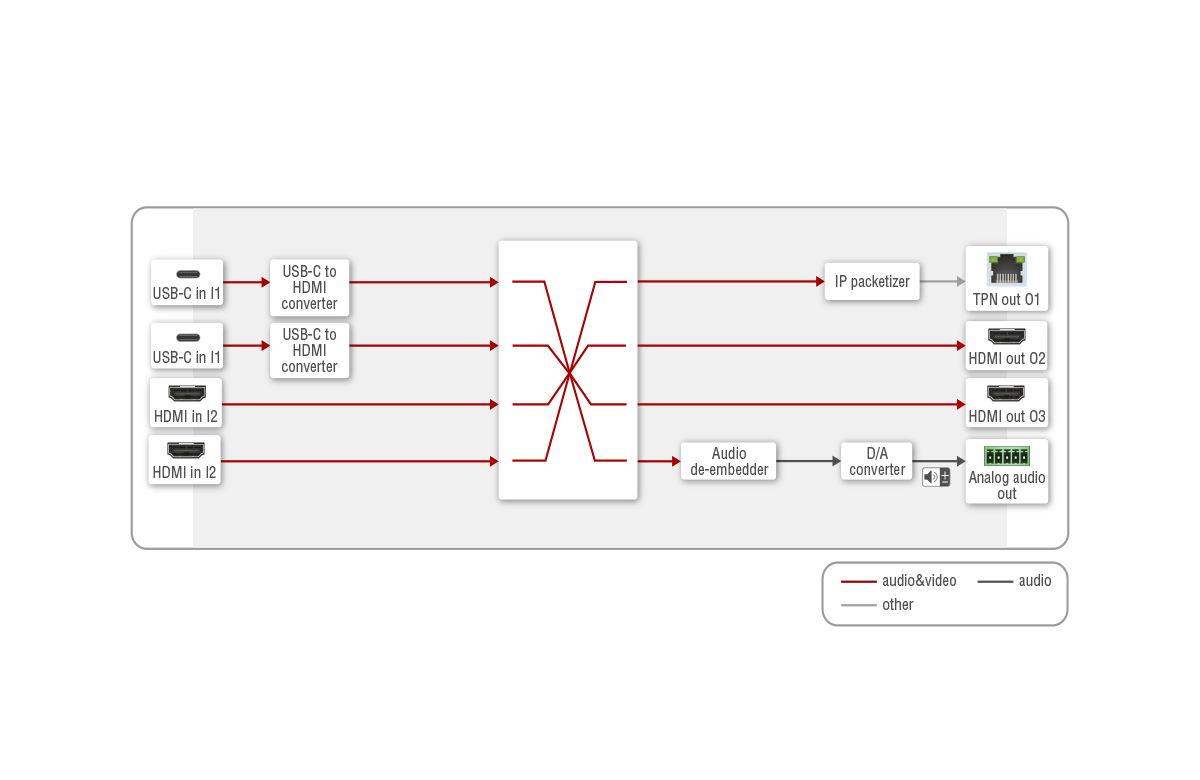

- HDMI2.0 4K@60 4:4:4 matrix switching over 10G network
- Independent, full bandwidth USB 2.0 matrix switching layer, supporting multiple USB camera sources
- Taurus UCX, DCX and HDMI-TPN devices can be combined in a media-over-IP matrix switching system
Supporting 5K
Taurus devices deliver flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, Taurus provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.
Features
- USB-C charging up to 100W (120W total)
- Dual port Video, Audio, Data and Charging Power over a single USB-C connection
- Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
- Room device control via Ethernet (TCP/IP), Serial, OCS or local GPIOs

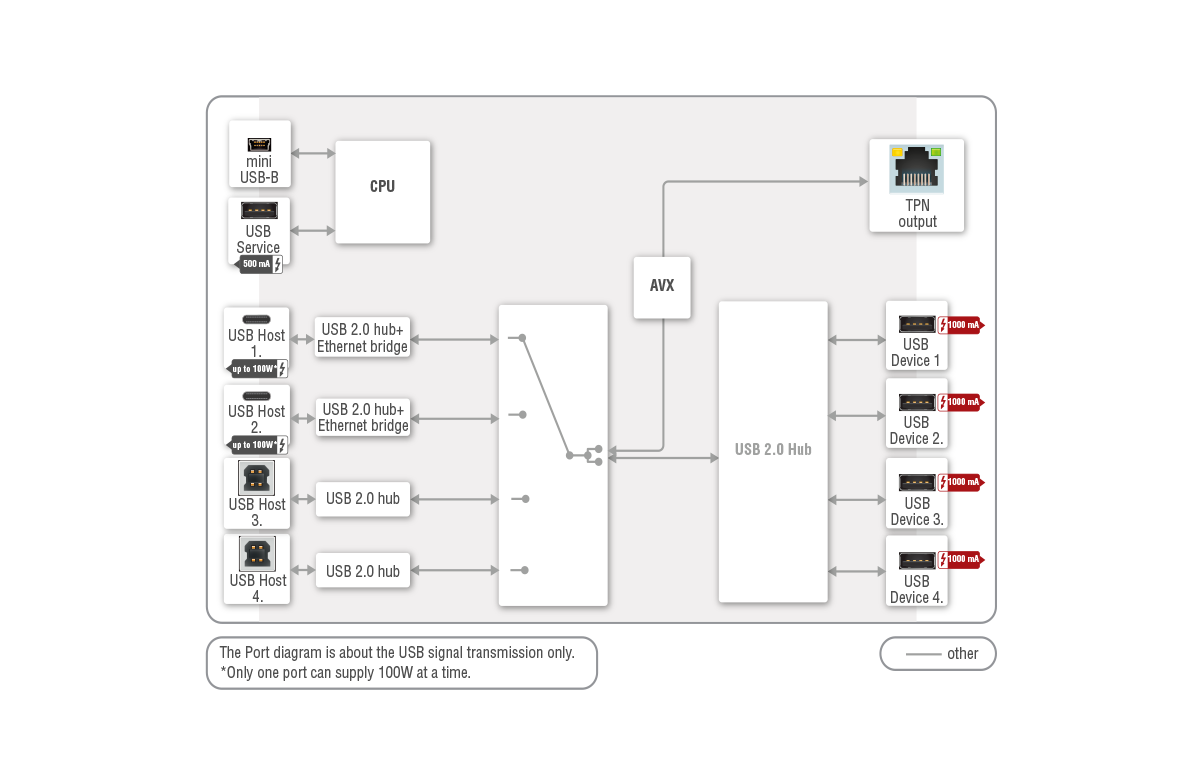

- Independent USB Host switching layer for multiple USB hosts, for devices connected to TPN receivers and for 4 devices at TX side

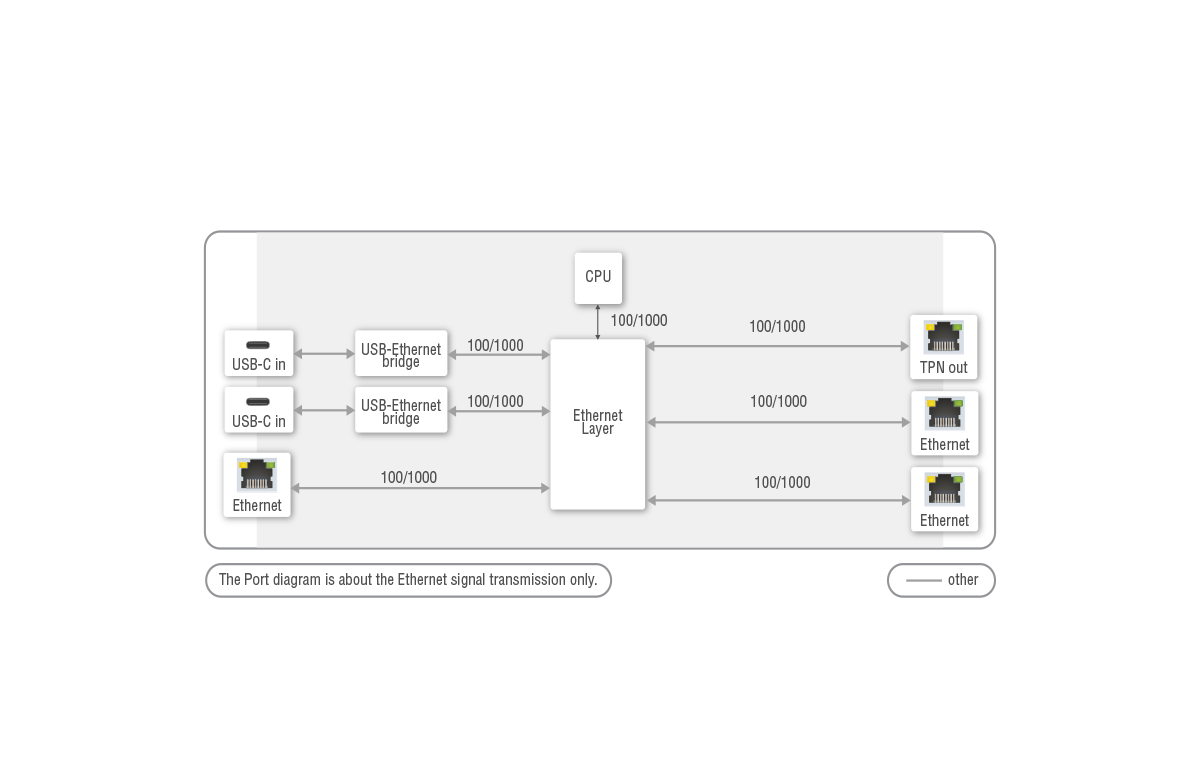

- Allows for the transmission of USB-C, HDMI 2.0, embedded audio, Ethernet, RS-232 to multiple TPN receiver devices through a 10G Ethernet switch
- Integrated SDVoE Control Server
All products will be drop shipped from Lightware. For stock availability, please email [email protected]
| Shipping | |
|---|---|
| Master product height | 0.0 |
| Shipping height (in.) | 0.0 |
| Master product width | 0.0 |
| Master carton quantity | 1.0 |
| Country of origin | TW |
| Master product length | 0.0 |
| Quantity unit of measure | EA |
| Shipping width | 0.0 |
| Shipping depth | 0.0 |
| Shipping weight | 0.0 |
| Master product weight | 0.0 |
