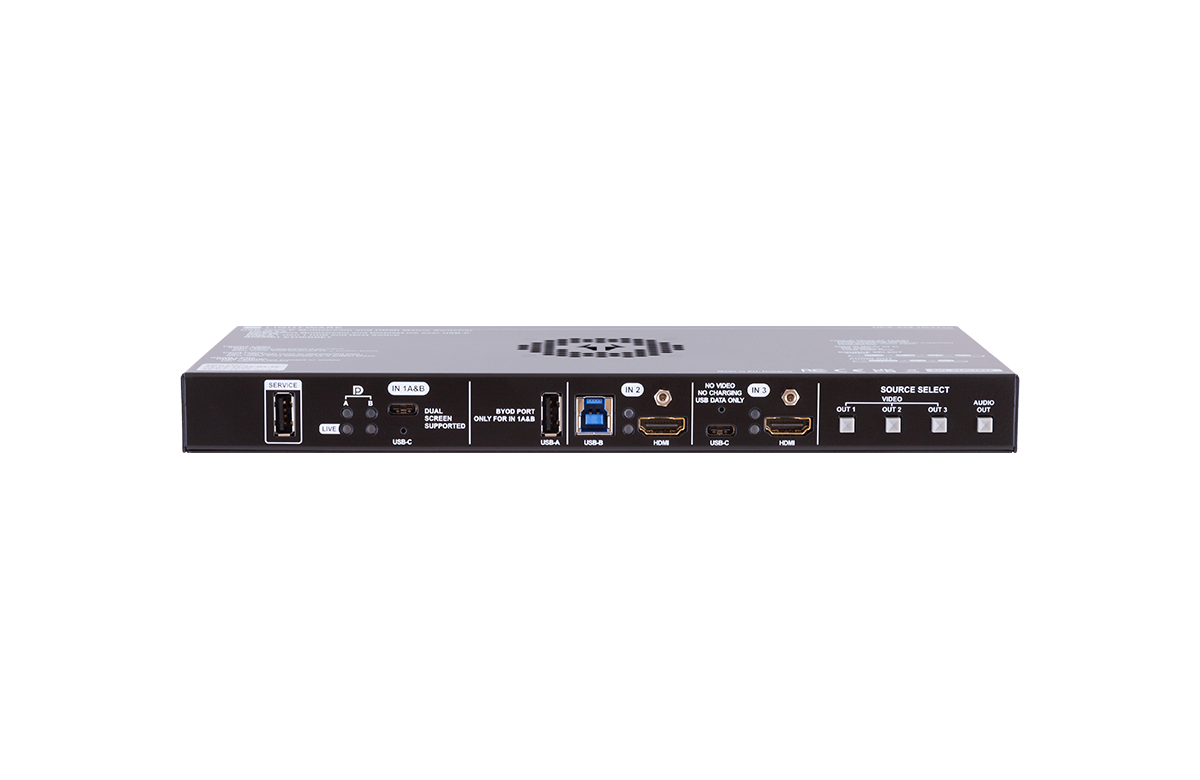

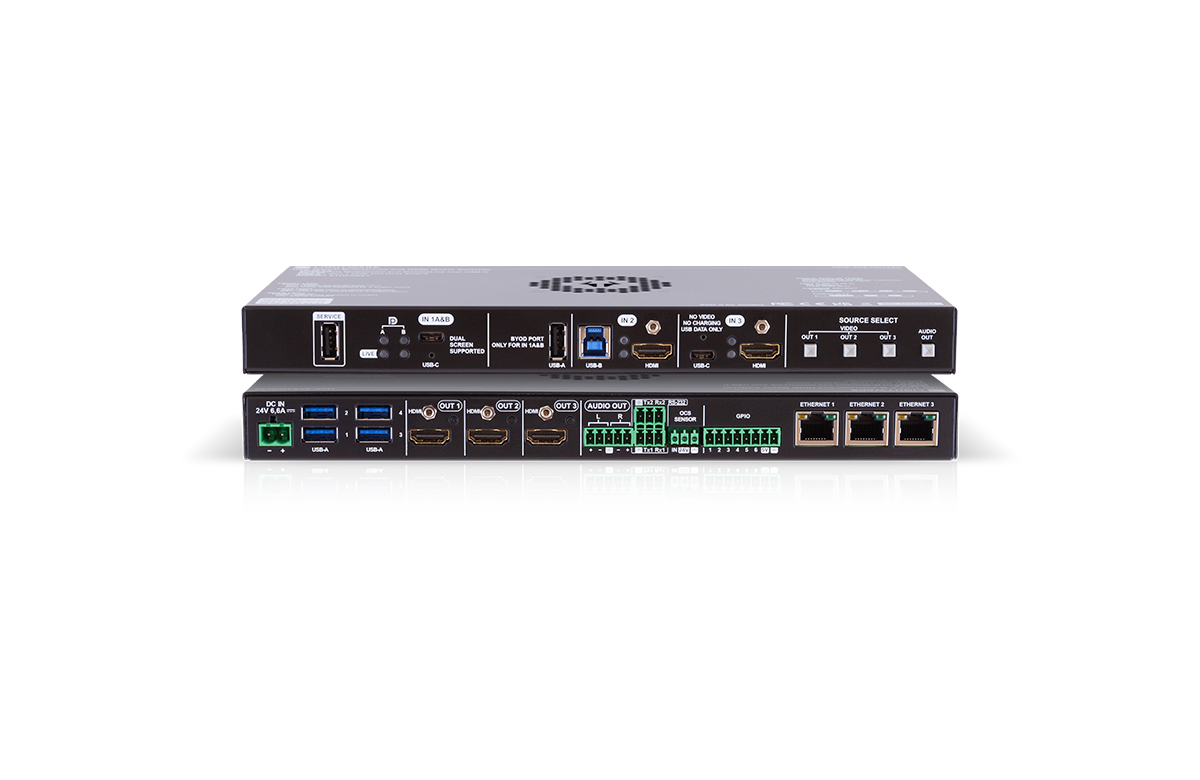

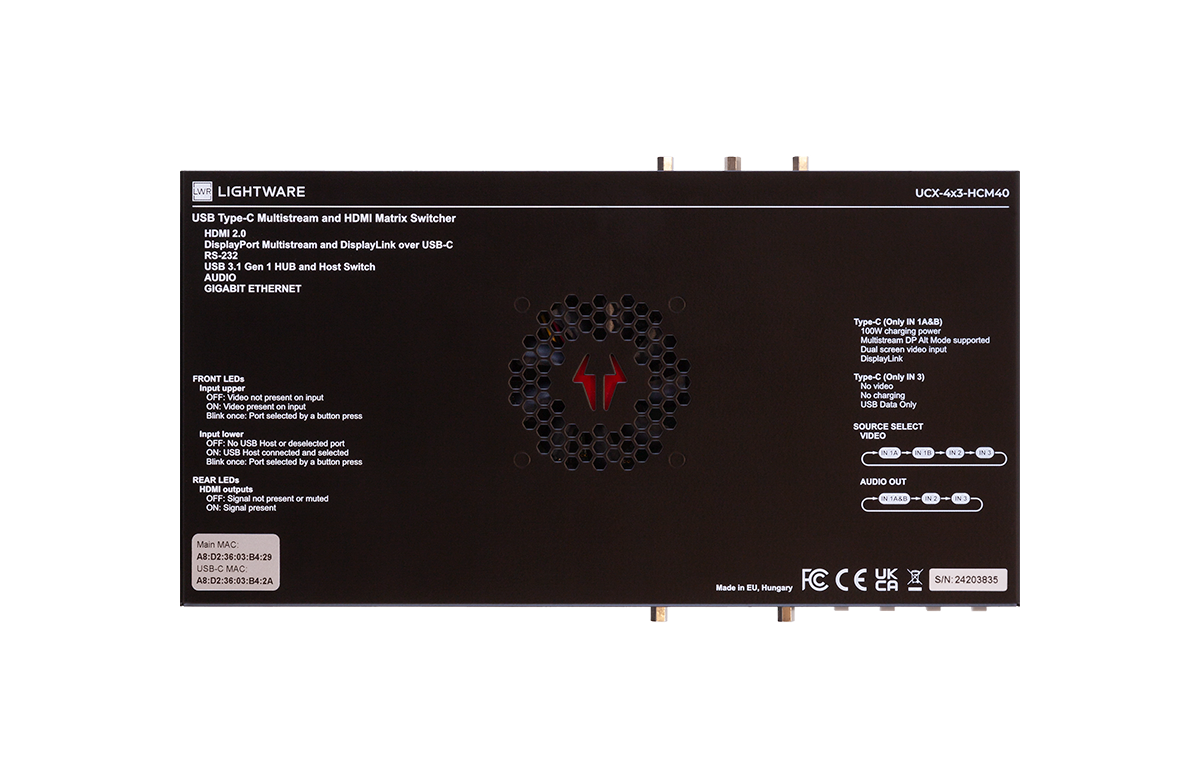

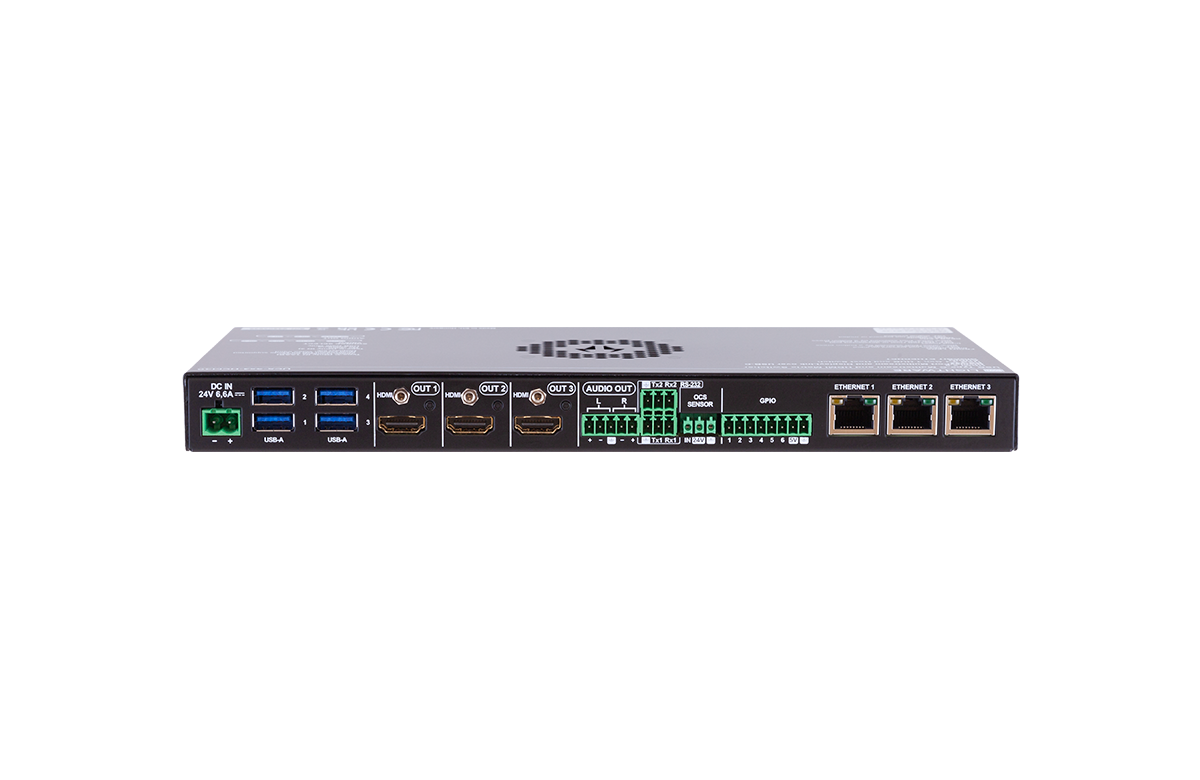

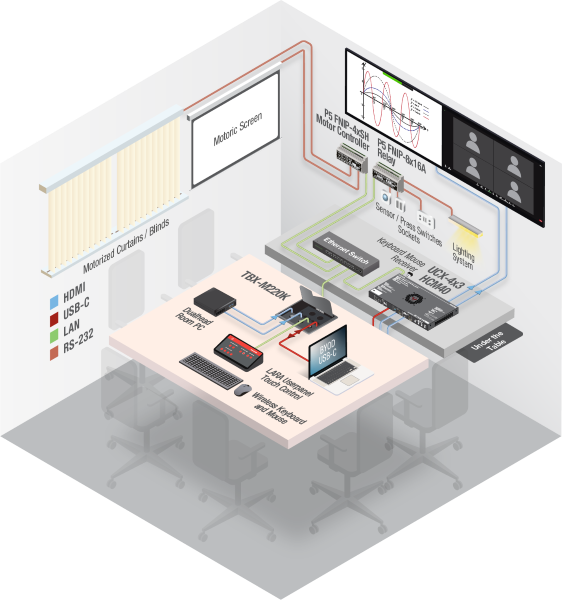

Taurus UCX 4x3 matrix for dual 4K video signal through single connection over DP Alt Mode or DisplayLink with USB-C, HDMI 2.0 and USB 3.1 ports supporting 4K signal formats (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps), secure control Ethernet interface. USB-C connectivity for dual 4K video, audio, control signals and charging up to 100W. Advanced room automation and control features.
Features
Multiple USB 3.1 Gen 1 connectivity for any type of USB devices (Camera, speakerphone, touch monitor, USB-HID devices etc…)
Multistream DP Alt Mode and DisplayLink supported
Smart & noiseless cooling system
CEC at the HDMI outputs (from Firmware V1.4)
MultiStream USB-C input connectivity for 4K Video, Audio, Data, and Power
Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x3-HCM40-LCC, SKU: 91360031)
Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
Dedicated secure corporate and room utility Ethernet connectivity
Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
USB-C charging up 100W
*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
