The UCX-4x2-HC60D universal switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also utilizing the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.

Features

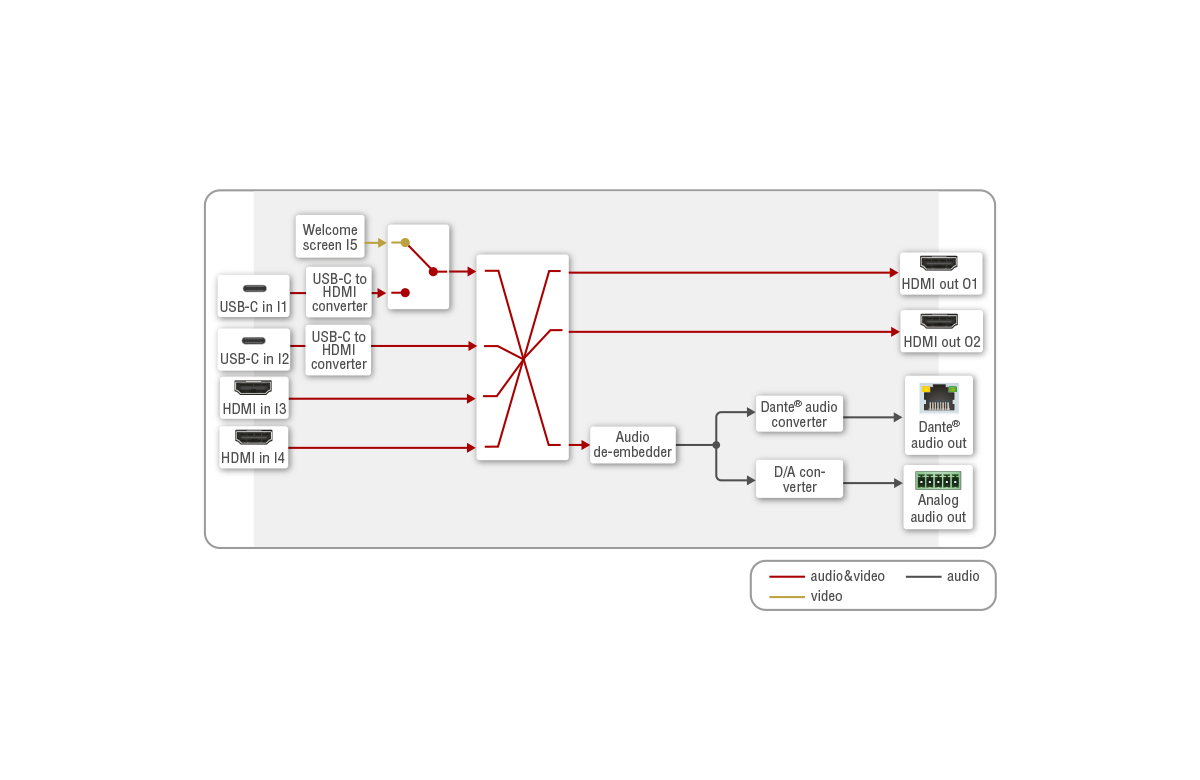

• HDMI Stereo embedded Audio can be de-emb. audio and converted to 2 channel streams
• USB-C charging up to 100W (120W total)
• Variant with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-4x2-HC60D-LCC)
• USB-C input connectivity for 4K Video, Audio, Data, and Power over 1 USB-C
• USB 3.1 Gen 1 connectivity Camera, speakerphone, touch monitor, USB-HID devices

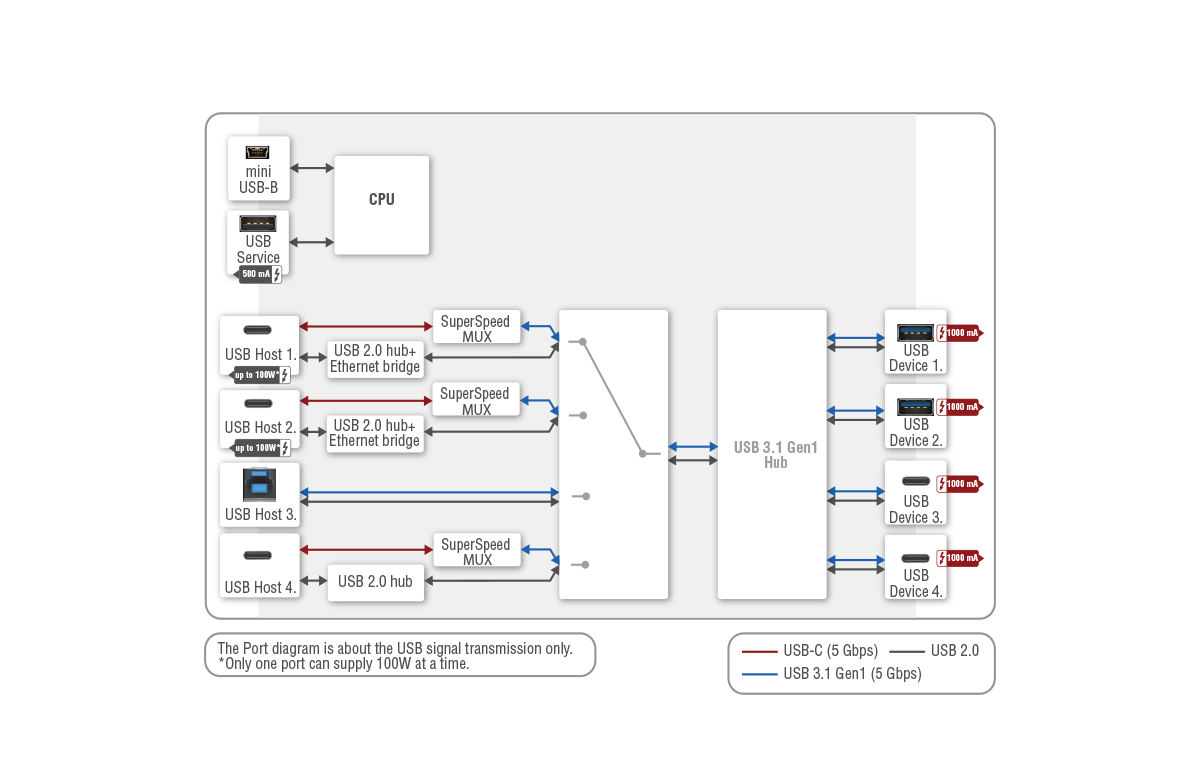

• Separate USB 3.1 Host layer for multiple USB hosts and USB devices
• Secure corporate and room utility Ethernet connectivity
• Supports HDMI 5K signal formats 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
• Passive, noiseless cooling
• CEC at the HDMI outputs
• Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
• Remote system logging
• Smart HDMI 5V Signal Tracking The “Follow Signal Present” mode powers the 5V output
• Secure and Flexible Room LAN Isolated VLAN network for secure room control
