Lightware UCX-3x3-TPX-RX20

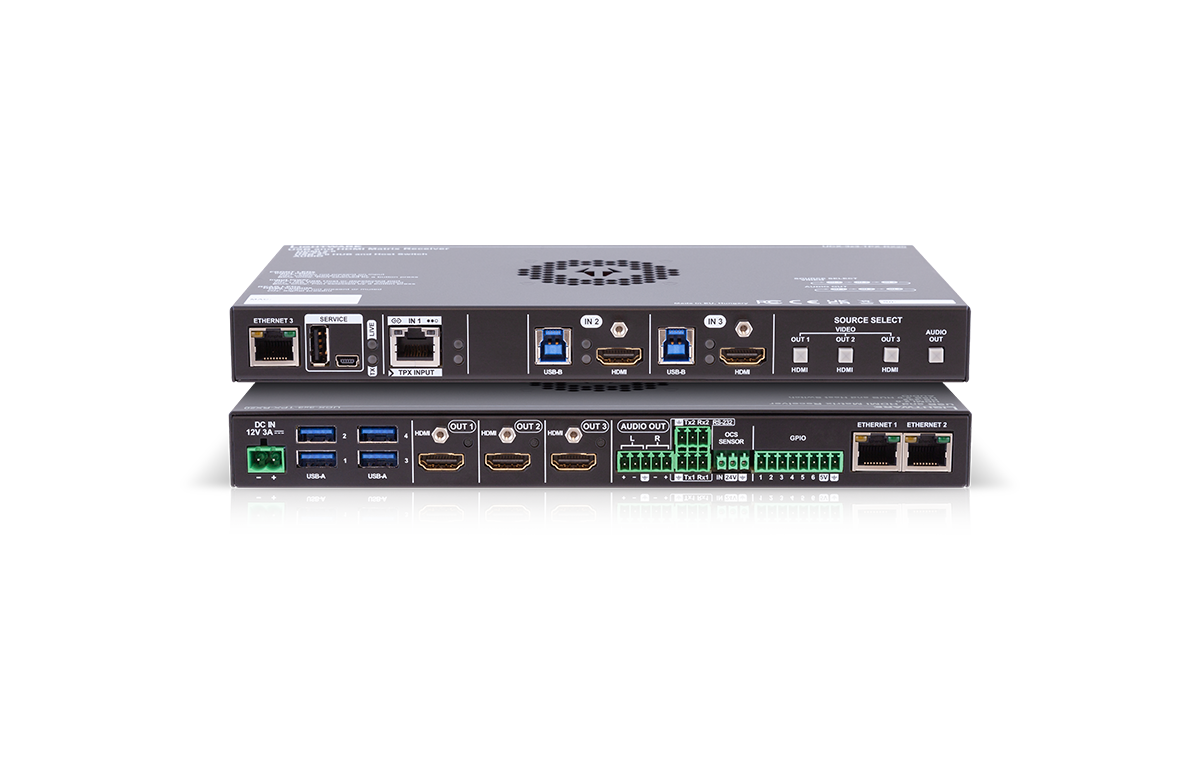

Lightware UCX-3x3-TPX-RX20 Taurus UCX 3x3 switcher with TPX, HDMI 2.0, USB 3.1, Ethernet, OCS and Serial ports - 91310100
Taurus UCX 3x3 switcher with TPX, HDMI 2.0, USB 3.1, Ethernet, OCS and Serial ports. Full 4K HDMI 2.0 TPX receiver (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps). TPX input for transmitter video and USB 2.0 connectivity, HDMI 2.0 and USB 3.1 ports for local connectivity. Advanced room automation/control features. Independent USB Host switching layer for multiple USB hosts at TX and RX side, up to 8 devices (4x at the TX side, 4x at the RX side).
Lightware’s UCX Smart Matrix Switcher receiver is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management adding extra connectivity on the receiver side. Next to the TPX input the device also has 2 local HDMI 2.0 and USB3.1 Gen1 connectors for Room PC and other room equipment (e.g. webcamera, speakerphone, multitouch display, etc.).

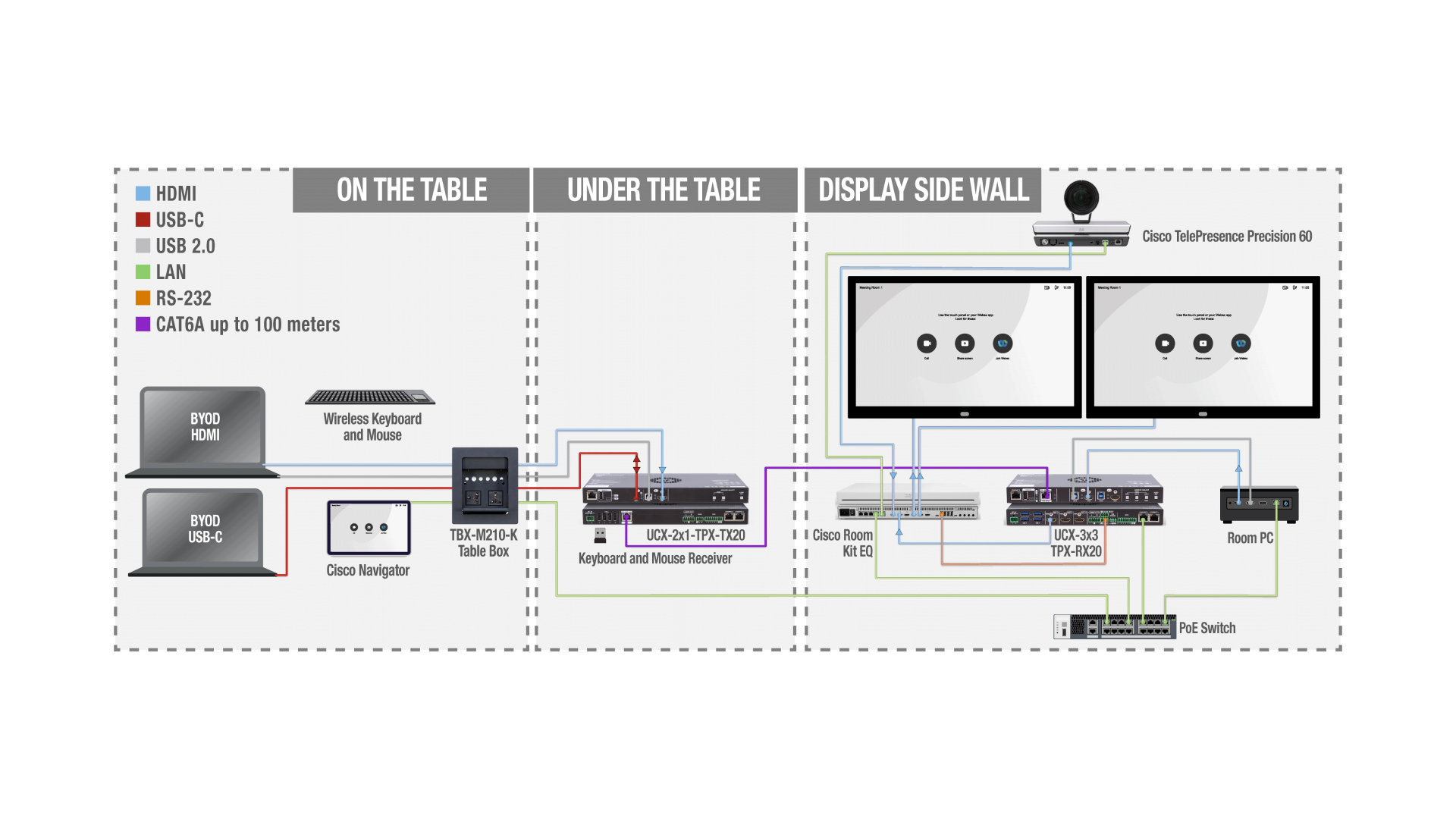

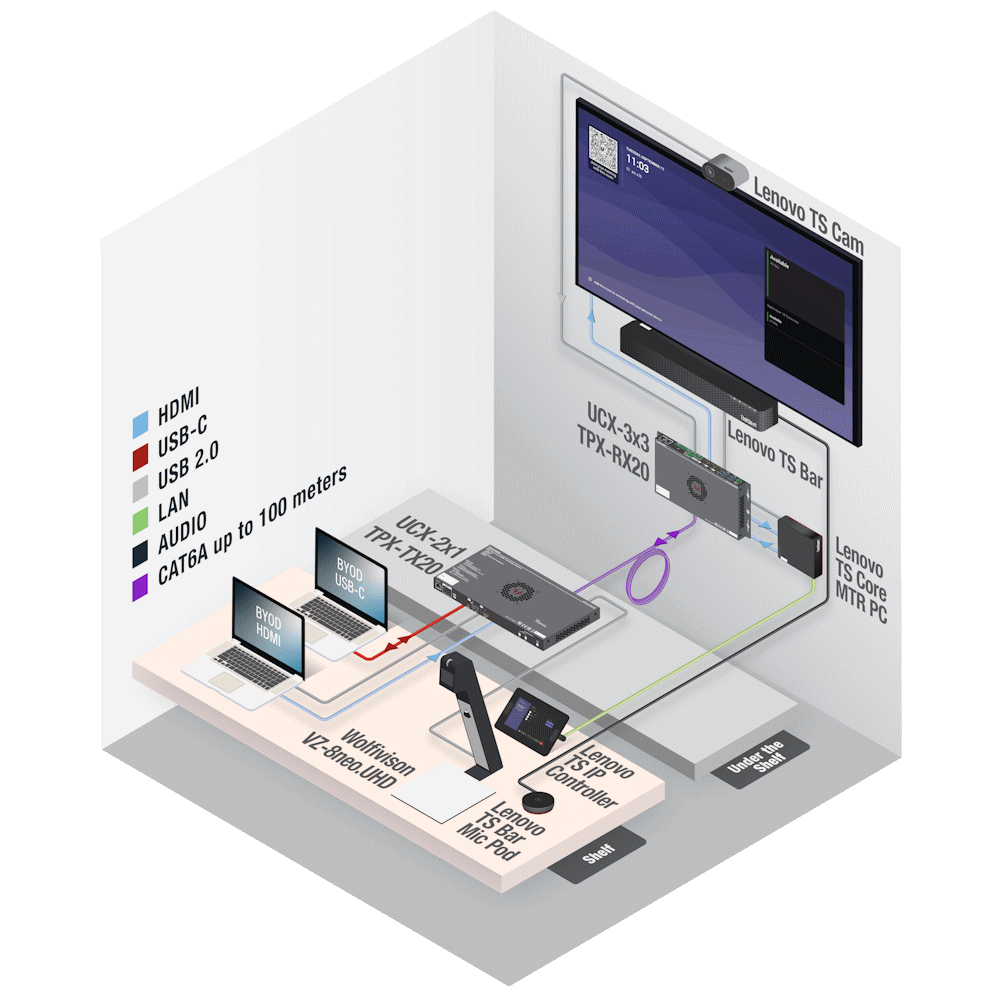

Its functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and USB 2.0 and control data in the other, up to a transmission distance of 100m.
Features
- Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
- Local HDMI 2.0 and USB3.1 Gen1 connectivity for Room PC and other room equipment
- Single CAT connectivity between TX and RX devices, Video, USB2.0, Ethernet, OCS, GPIO and Serial
- Multiple USB connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.)
- Three independent HDMI 2.0 outputs
- Room device control via Ethernet (TCP/IP) or Serial or GPIO or OCS
- CEC at the HDMI outputs
- Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
- Welcome screen for custom corporate logo and on-screen display warning messages

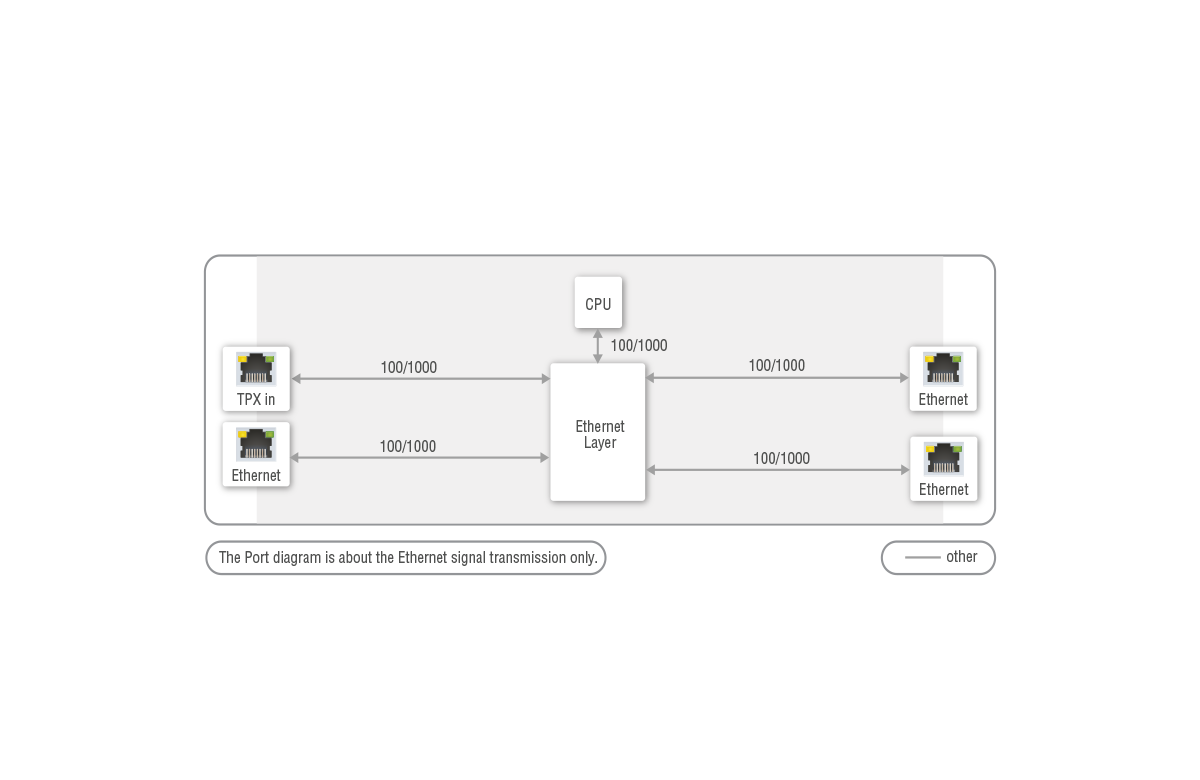

- Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
- SSH, SSL, HTTPS for IT security

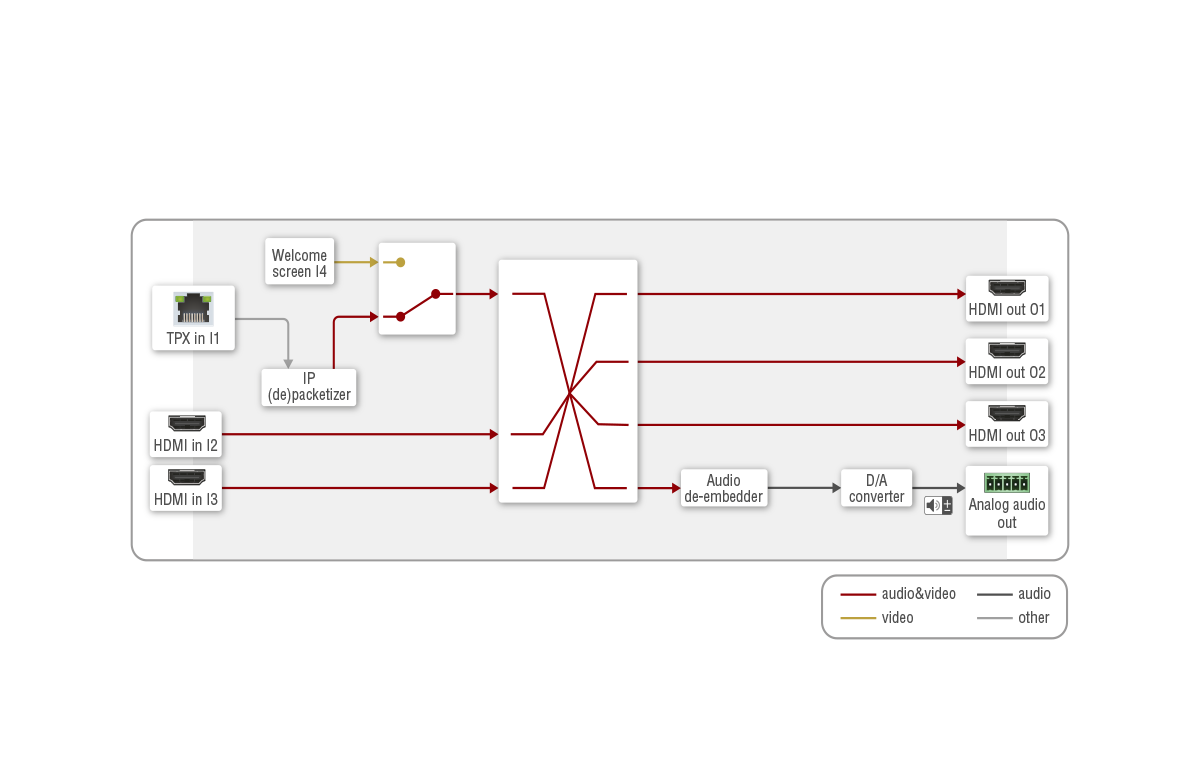

- Audio de-embedding
*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
| Shipping | |
|---|---|
| Master product weight | 0.0 |
| Master product height | 0.0 |
| Shipping height (in.) | 0.0 |
| Master product width | 0.0 |
| Master carton quantity | 1.0 |
| Country of origin | TW |
| Master product length | 0.0 |
| Quantity unit of measure | EA |
| Shipping width | 0.0 |
| Shipping depth | 0.0 |
| Shipping weight | 0.0 |
