Lightware UCX-2x2-H60 Taurus UCX 2x2 matrix with HDMI 2.0 and USB 3.1 ports supporting 4K (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps) and 5k signal formats, secure control 1GB Ethernet interface. Advanced room automation and control features. - 91310117

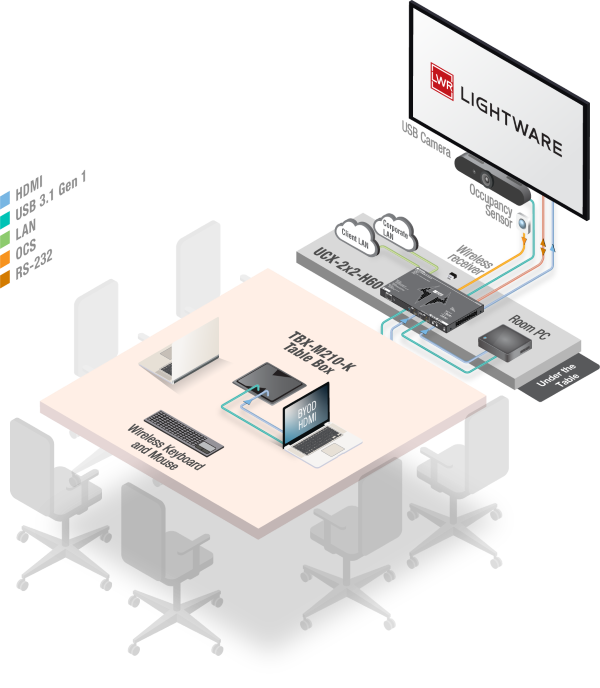

The UCX-2x2-H60 universal matrix switcher enhances and extends the possibilities of a meeting room and allows meeting participants to easily use their own devices such as laptops, and preferred video conference platforms while also to utilize the available assets of the meeting space, just like the HDMI displays, room cameras and other USB peripherals.
Features
Passive noiseless cooling
CEC at the HDMI outputs
Variant available with NIST FIPS 140-2 certified Lightware Crypto Core (UCX-2x2-H60-LCC)
USB 3.1 Gen 1 connectivity Camera, speakerphone, touch monitor, USB-HID devices

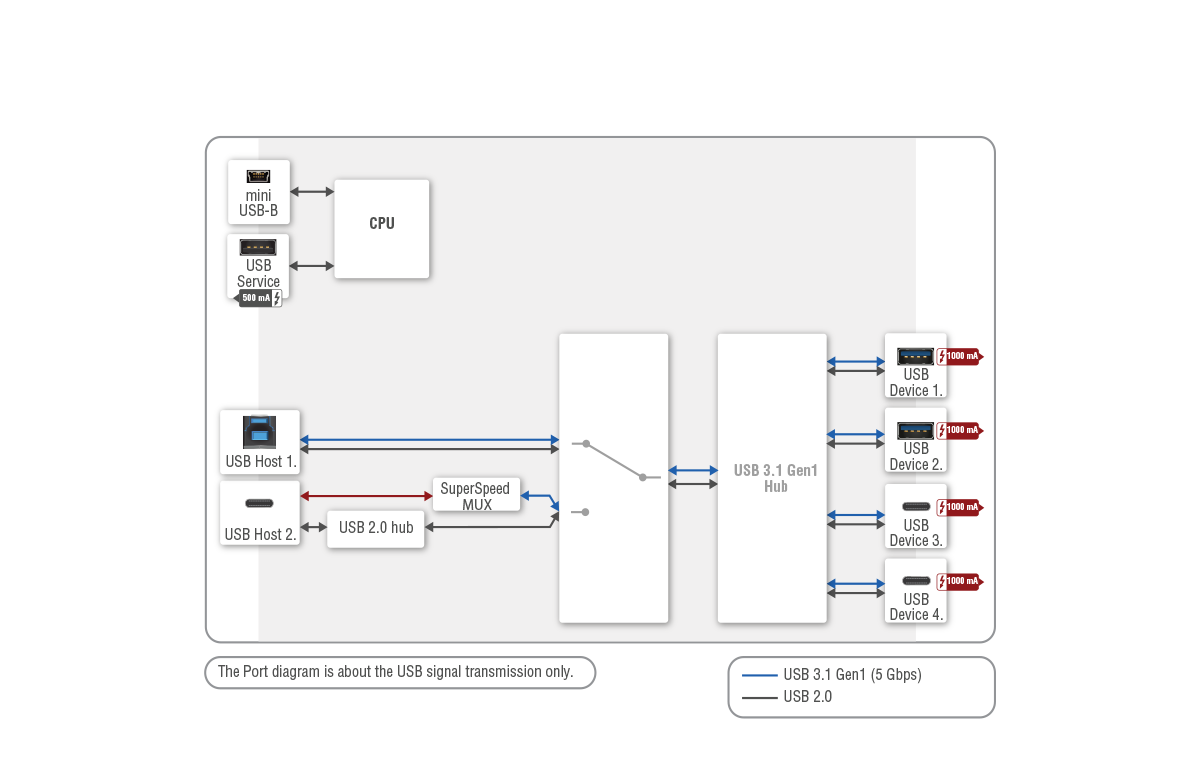

Separate USB 3.1 Host layer for multiple USB hosts and USB devices
Secure corporate and room utility Ethernet connectivity
Remote system logging
Supports HDMI 5K signal formats 5120×2160 HDMI 2.0: 30hz 4:4:4 or 60hz 4:2:0
Supports HDMI 4K signal formats 4K UHD @60Hz RGB 4:4:4, up to 18 Gbps
Smart HDMI 5V Signal Tracking The “Follow Signal Present” mode powers the 5V output
Secure and Flexible Room LAN Isolated VLAN network for secure room control
*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
