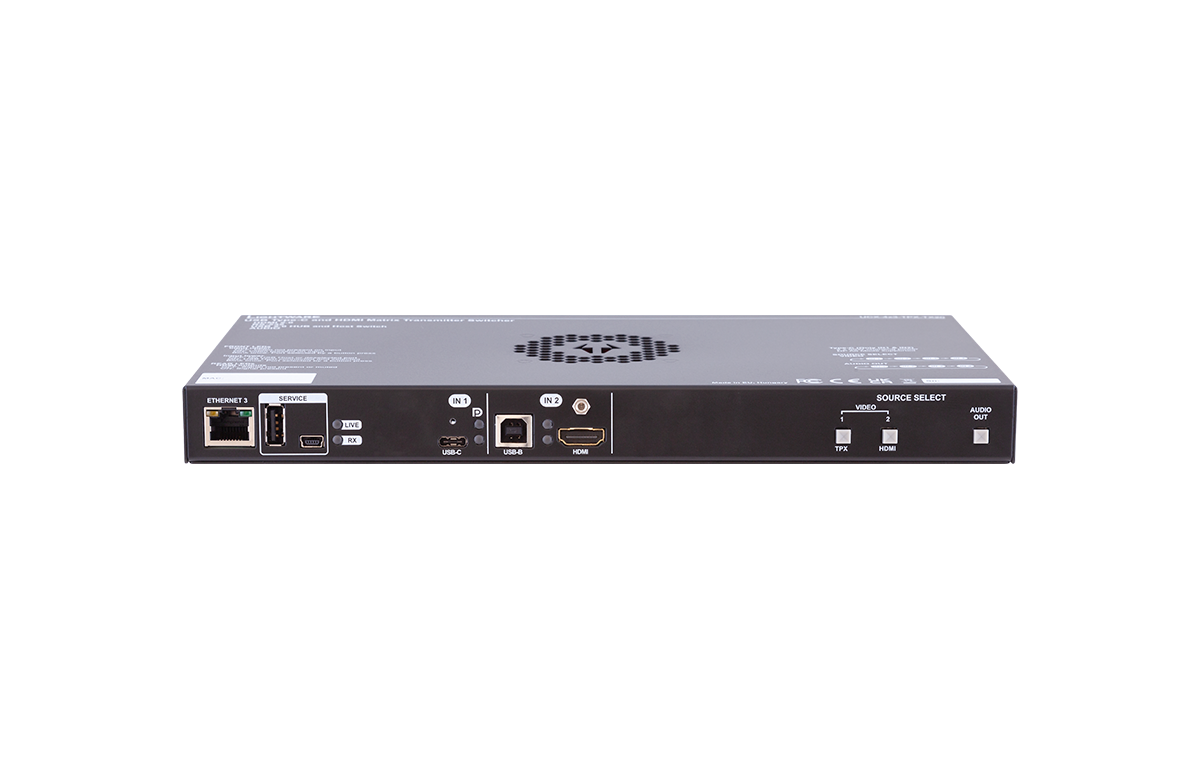

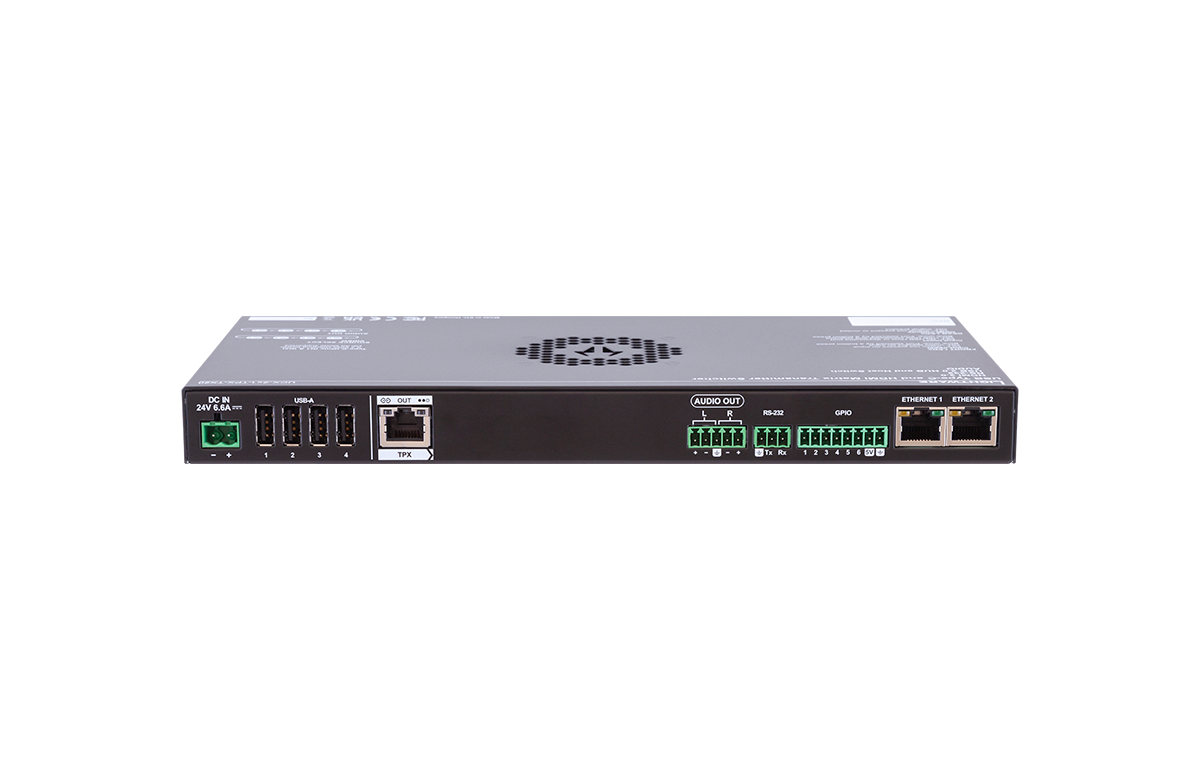

Taurus UCX 2x1 switcher with TPX, USB-C, HDMI 2.0 and USB 2.0 ports. Full 4K HDMI 2.0 TPX transmitter (4K UHD @ 60Hz RGB 4:4:4, up to 18 Gbps), with Power delivery from TX to RX, Video, USB2.0, Ethernet, Serial and OCS to RX. USB-C connectivity for 4K video, audio, control signals and charging up to 100W. Advanced room automation/control features. Independent USB Host switching layer for USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side).

Universal Switcher Transmitter for Simple 4K Signal Extension

Lightware’s universal switcher transmitter is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity. Such functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and USB 2.0 data in the other, up to a transmission distance of 100m.

The transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.

Supporting 5K

Taurus devices deliver flawless switching for 5K 21:9 ultrawide displays, unlocking a new level of visual performance for modern meeting and control environments. Designed to enhance layouts like Microsoft Teams Front Row and other collaboration platforms, Taurus provides expanded screen real estate for design, data visualization, and multi-window workflows. With uncompressed HDMI 2.0 video and ultra-low latency, it’s the ideal choice for simulation, engineering, broadcast, and executive boardroom applications.

Features

• Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial
• USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
• USB-C charging up to 100W on the TX
• Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX

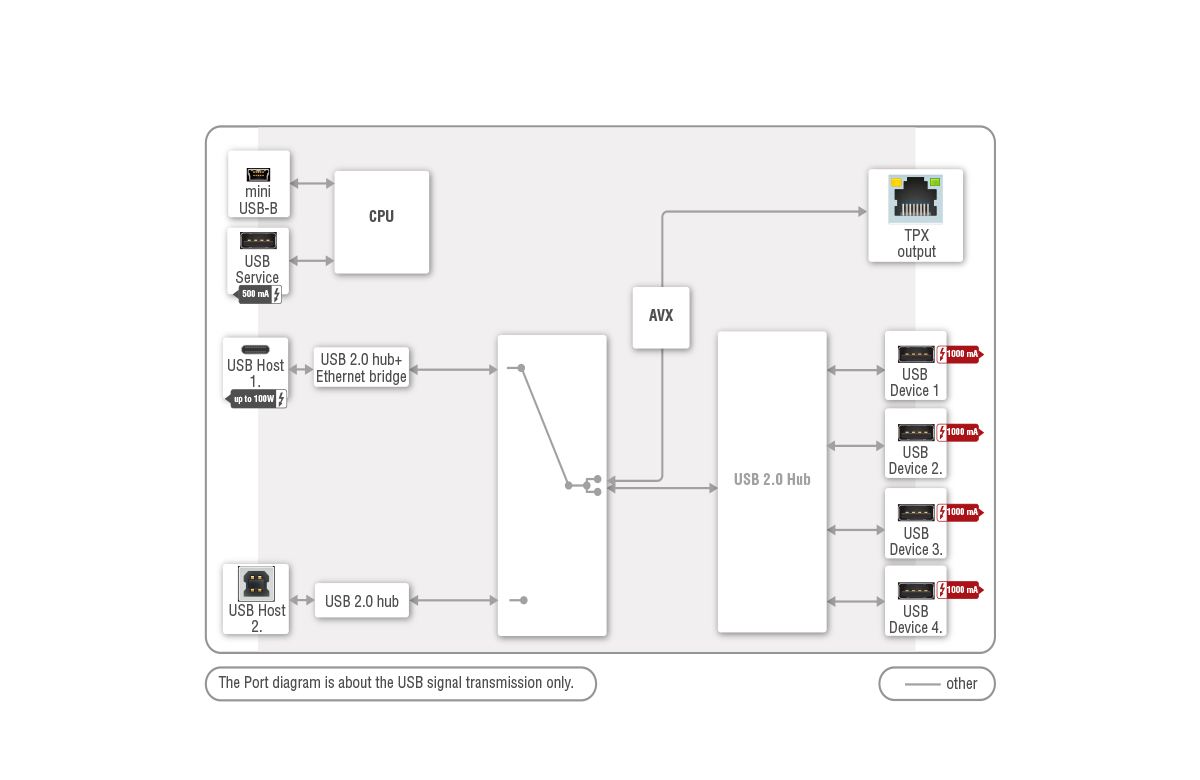

• Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
• Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
• Multiple Ethernet network configurations fitting various corporate network topologies and IT security standards (e.g. 802.1x compliance)
• SSH, SSL, and HTTPS for IT security
• Occupancy sensor (OCS) connection at the RX device (with 24V power supply), GPIO control ports at TX device
• Welcome Screen for custom corporate logo and on-screen display warning messages

*All products will be drop shipped from Lightware. For stock availability, please email [email protected]
