The INOGENI U-BRIDGE USB-C is a purpose-built extender that extends full USB-C functionality—including USB 2.0, power, and DisplayPort Alternate Mode—up to 70 m (230 ft.) over a single CAT6A cable via HDBaseT® technology, while also enabling Ethernet LAN connectivity to the laptop, as well as control and management. It is ideal for extending USB-C laptops to videoconferencing equipment, for room displays, and with networks in modern meeting spaces. The extender can connect to an all-in-one videobar that supports BYOM.

The U-BRIDGE USB-C provides reliable long-distance extension while maintaining high-quality, uncompressed video. It extends the videobar’s UVC/UAC interface (camera and audio) and simultaneously sends video content to the in-room display.

Tested and proven compatible with USB-C systems from Lenovo, Cisco, Poly, Logitech, and ClickShare. Discover the U-BRIDGE USB-C DUO delivers the same robust technical features as the standard single-display model, now enhanced with a second HDMI output for seamless dual-display and extended desktop functionality.

High-performance audio/video connectivity and 100W charging

• USB-C extension over CAT6A U/FTP cable up to 70 m (230 ft.)
  • Uncompressed video signal via HDBaseT® proven technology
  • Reach: 40 m (132 ft.) at 4K60 and 70 m (230 ft.) at 1080p
  • Supports USB 2.0 and DisplayPort Alternate Mode
  • PoE powers the PC host module from the device module
  • USB-C power supply included to enable 100W laptop  charging
• 2x USB 3.0 device ports
  • USB 2.0 data rate: up to 480 Mbps when extending USB devices
  • Note: If USB 3.2 Gen 1 connectivity is required, users can link both units via the USB3-EXT ports and use the INOGENI U-BRIDGE 3 to extend SuperSpeed USB 3.2 Gen 1 signals.
• 4K60 HDMI output
  • Compatible with HDCP 2.3, HDMI 2.0b, and DVI 1.0
• Advanced video processing with 4:4:4 and 4:2:2 chroma subsampling

Versatile USB and video extension

• Supports all USB peripherals, including webcams, videobars, audio devices, and HID
• Ideal for systems with USB-C connectivity, such as Lenovo Core Gen 2, Cisco Room Bar Pro, Cisco Room Kit EQ, Poly G62, Logitech MeetUp 2 and ClickShare CX50 Gen 2.
• Provides up to 1.8A of shared USB power
• IP interface with DHCP/static IP support for control and network bridging

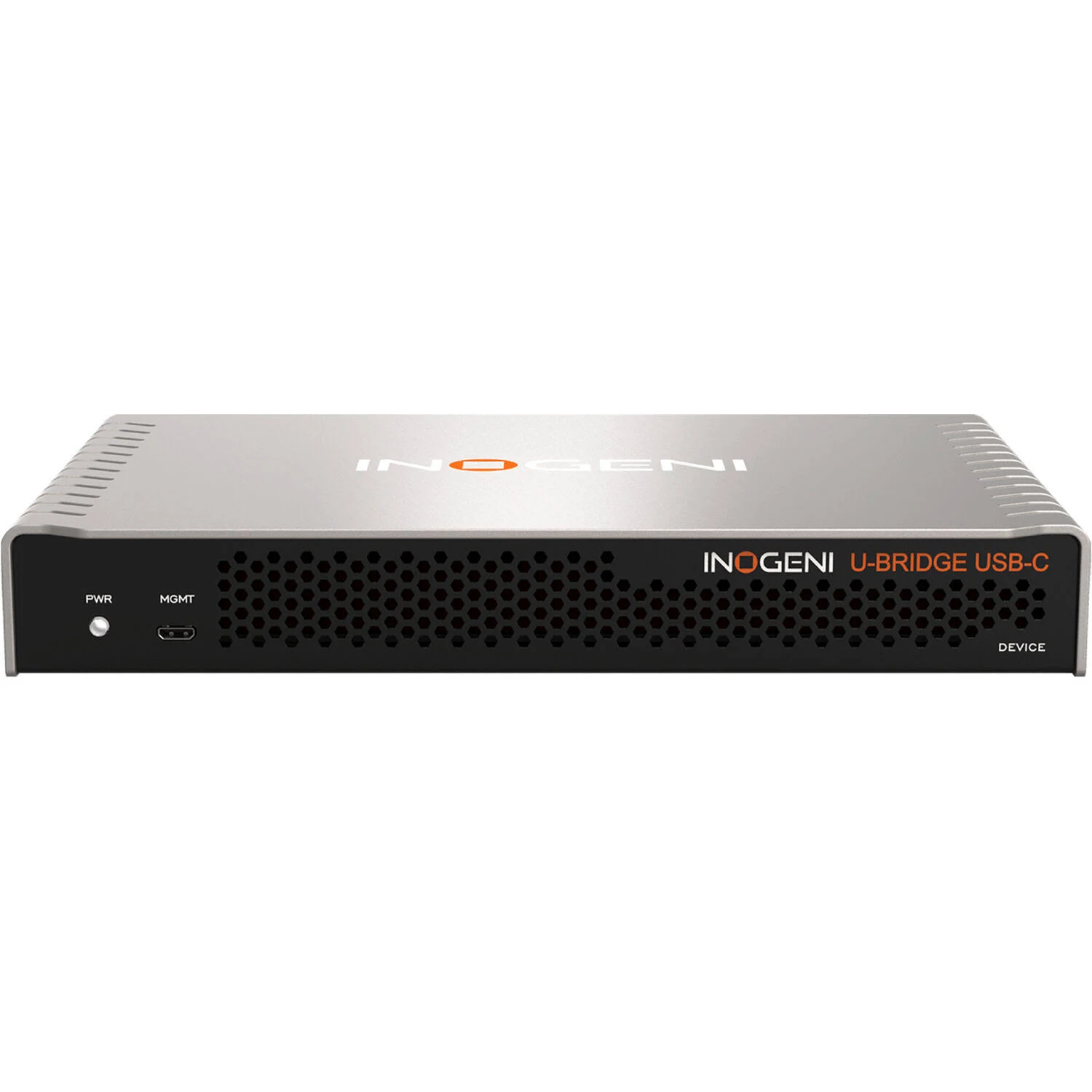

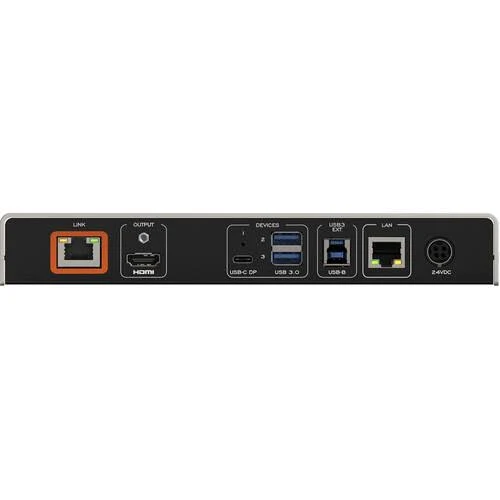

The DEVICE module includes:

• 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
• 2x USB-A 3.0 for cameras, videobars or speakerphones
• 1x USB3-B for USB 3.0 extension (when needed)
• 1x 4K60 HDMI output
• 1x RJ-45 for LAN control
• 1x RJ-45 for CAT6A HDBaseT link to the PC HOST module
• Power 12V and PoE to the PC HOST module over a CAT6A link

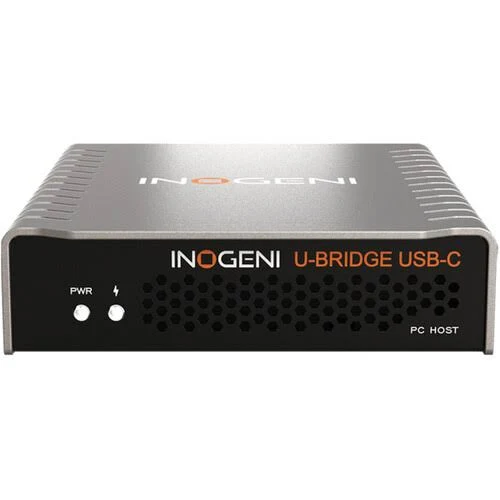

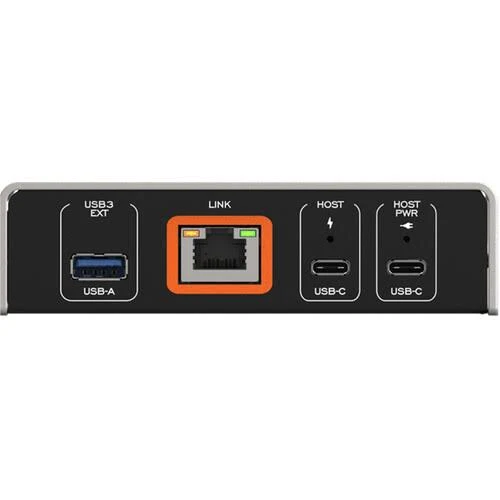

The PC HOST module includes:

• 1x USB-C port for DisplayPort, Alt Mode and USB 2.0 extension
• 1x USB-C ports for laptop charging up to 100W
• 1x USB3-A for USB 3.0 extension
• 1x RJ-45 for HDBaseT Link to the DEVICE module
• USB-C and HDMI connectors with lock screws for secure attachment
• Compact, professional-grade aluminum housing with mounting brackets
• Plug-and-play compatibility with Windows, macOS, and Linux—no drivers required

Reliable performance

• Direct connection up to 70 m (230 ft.) using CAT6A U/FTP cable
• LED indicators for power and charging status
• Backed by a 5-year warranty
• Made in Canada and TAA-compliant
