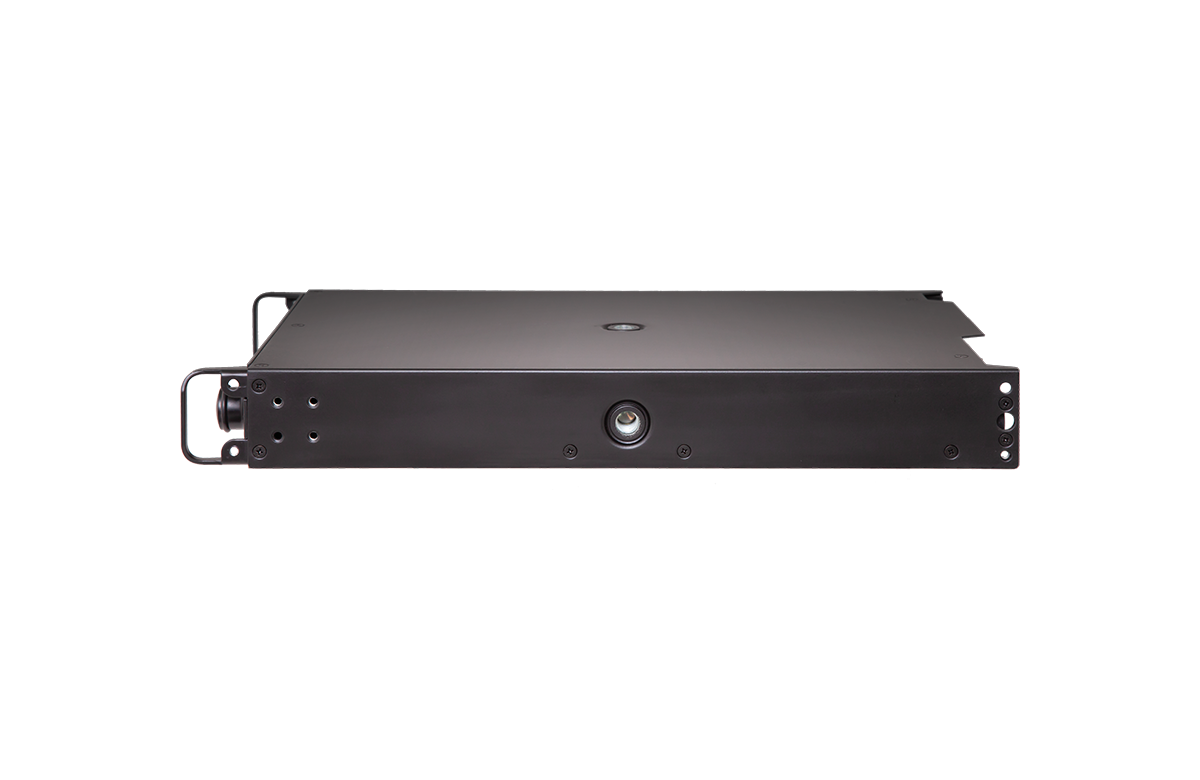

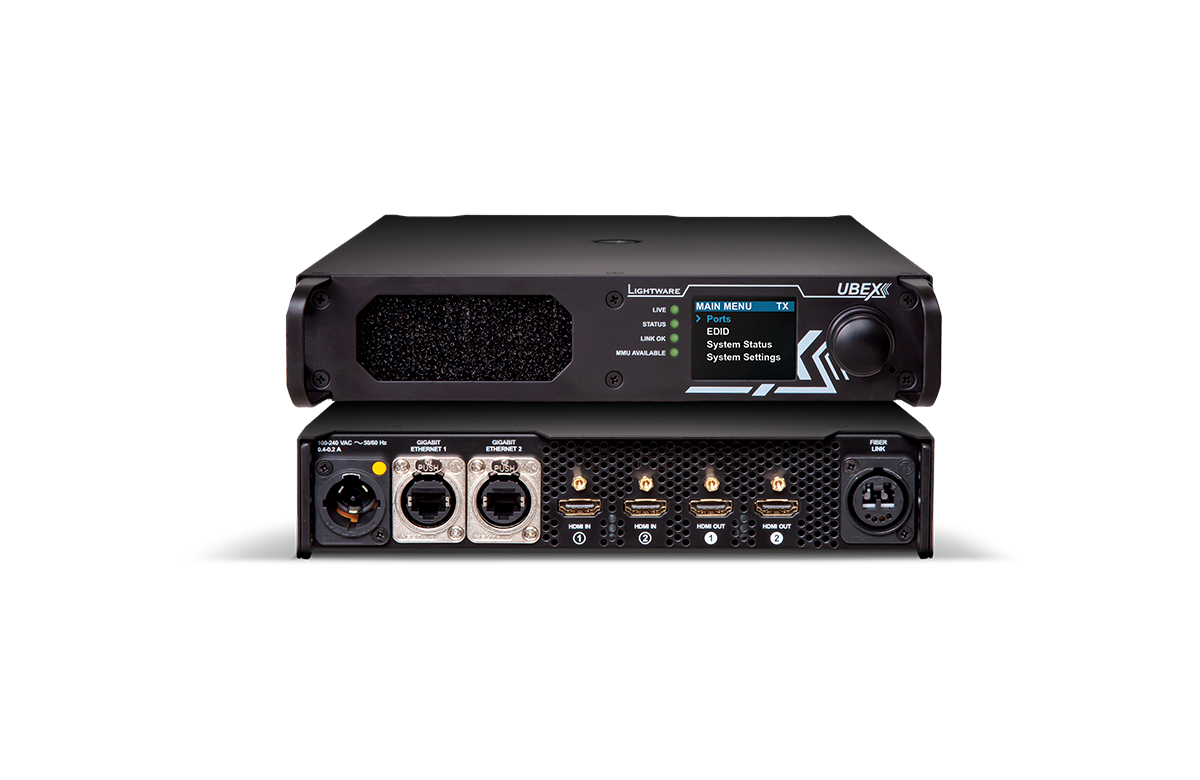

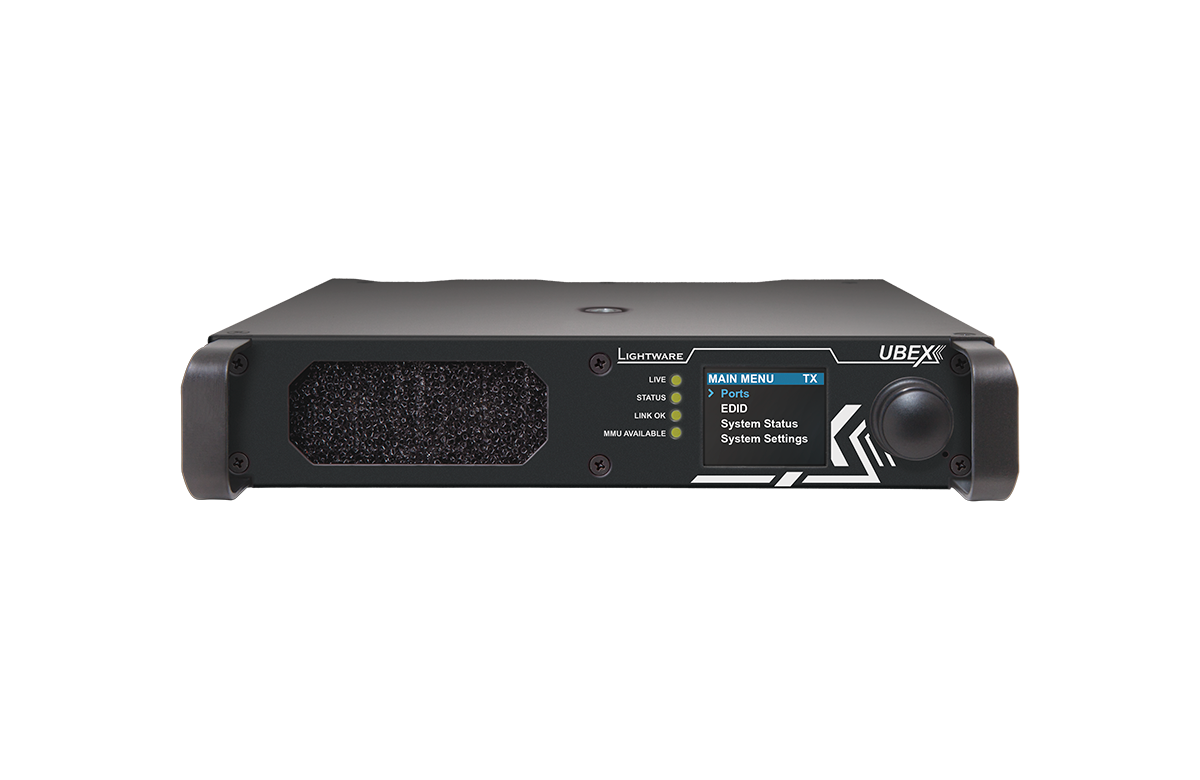

Lightware’s high-performance AV-over-IP receiver enabling uncompressed 4K60 4:4:4 video transmission over a 10G Ethernet network, ensuring seamless, low-latency signal distribution with advanced security, redundancy, and full integration for mission-critical applications.

Next-Gen AV-Over-IP Solutions

Ubex is a fiber-optical, scaling AV-Over-IP system which allows uncompressed 4K UHD@60Hz 4:4:4 signal extension with latency-free multistreaming, designed to use in a 10G Ethernet network. UBEX operates with zero frame latency, provides seamless switching and lossless reproduction of source signals of up to 4K60Hz 4:4:4, without artifacts. Uncompressed 4K60Hz 4:4:4 data transmission, or visually lossless compression at higher data rates.

Flexible Fiber-Optic Performance

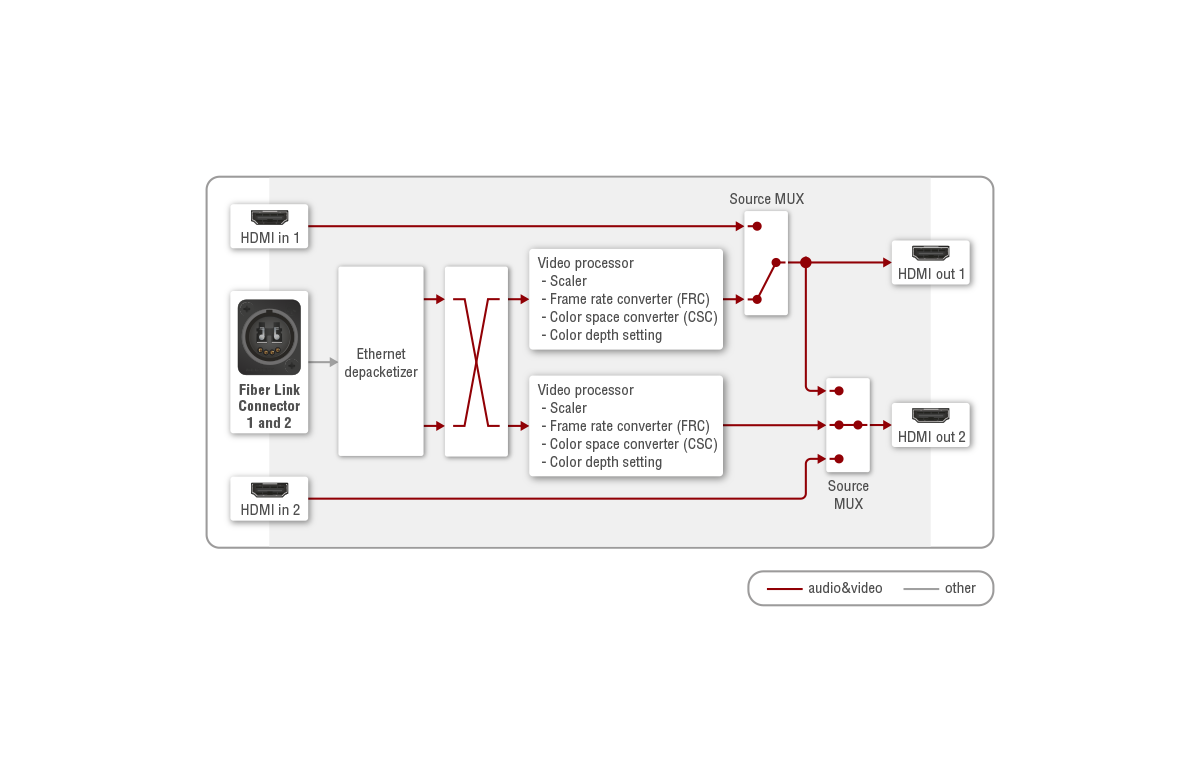

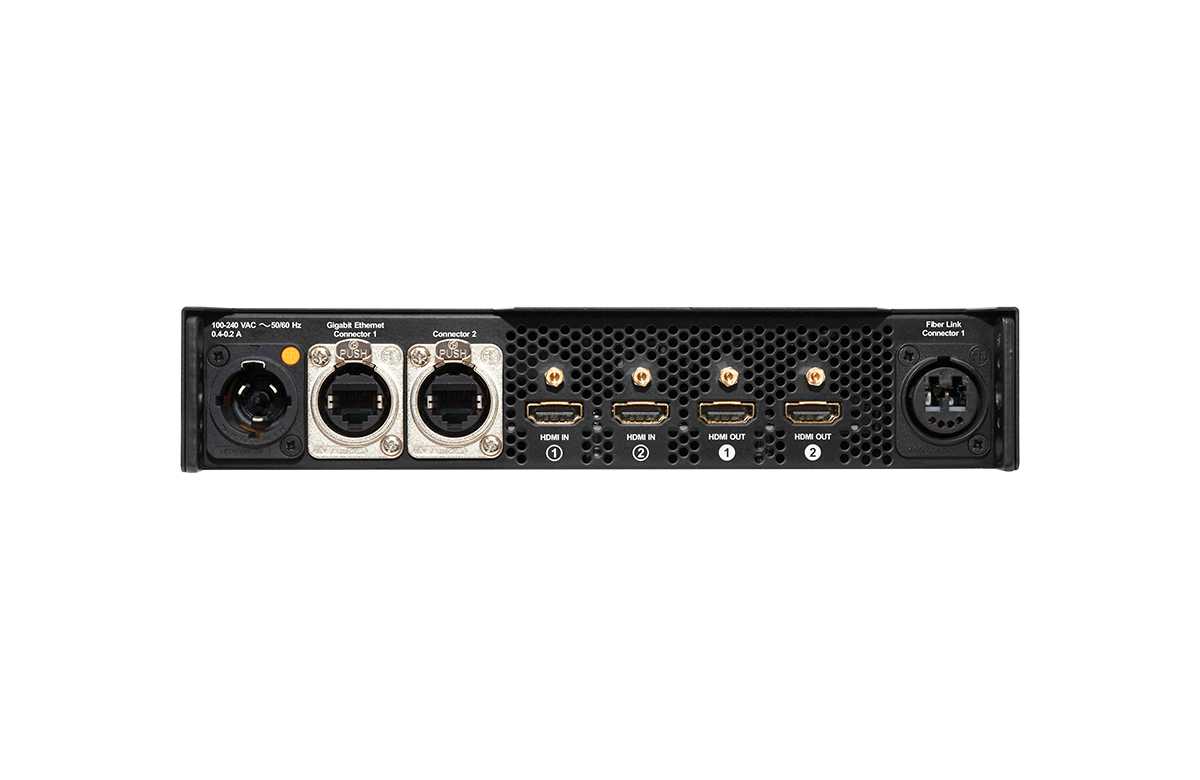

It has standard, 10 Gbps SFP+ optical modules installed, which are fieldexchangeable by the user. UBEX can transfer two video signals over a single 10G link with minimal compression, which requires half the router size compared to the needs of similar, 10G IP based architectures. With a 20G configuration, UBEX can transfer 4K@60Hz 4:4:4 over two links uncompressed. The maximum reachable distance is ranging between 400 m and 80 km, depending on the type of singlemode or multimode SFP+ optical modules installed in the device. The UBEX design also favors dual-screen applications as a single UBEX device can handle 2x HDMI 2.0 video ports. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.
