Seamlessly Integrate USB 2.0

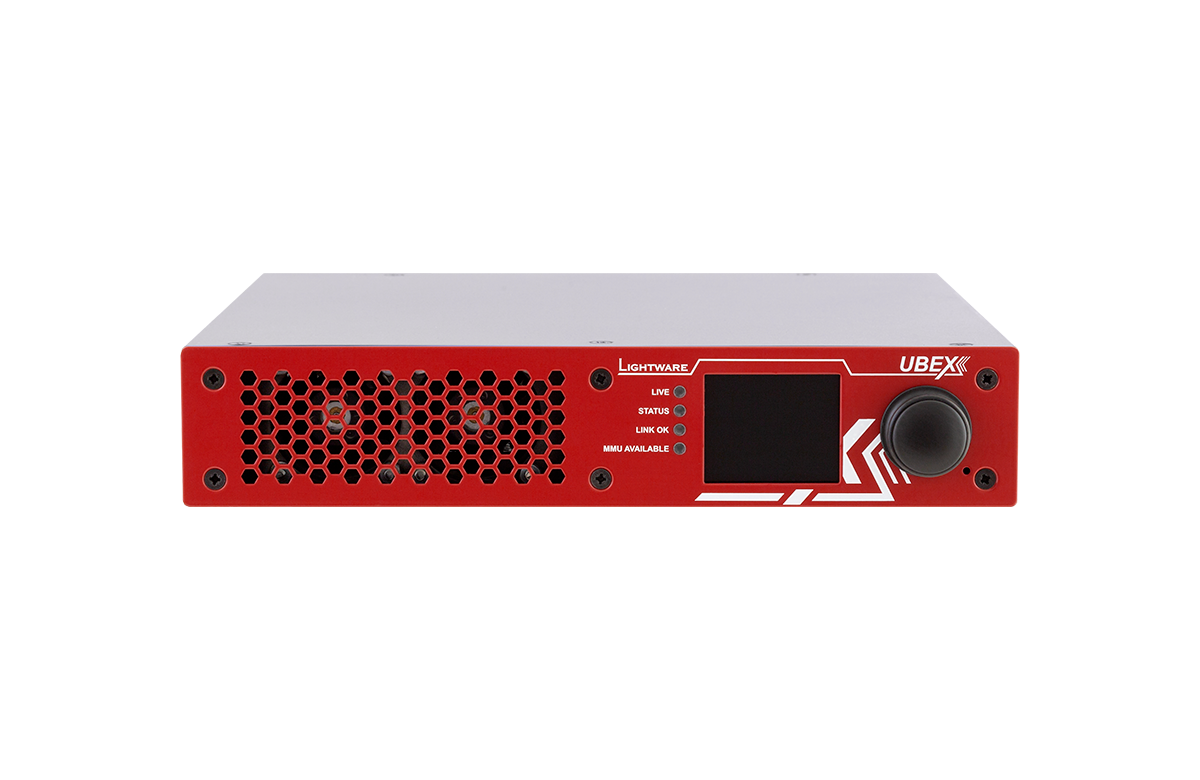

The UBEX-PRO20-HDMI-F130 integrates the Icron USB 2.0 extension solution into the UBEX system. The resulting product variants are able to transmit USB 2.0 traffic to compatible UBEX endpoints as well as to the USB20-1GBE-DS and USB20-1GBE-HS types of standalone USB 2.0 extender boxes. Reliable USB 2.0 transmission is ensured by proper Ethernet QoS.

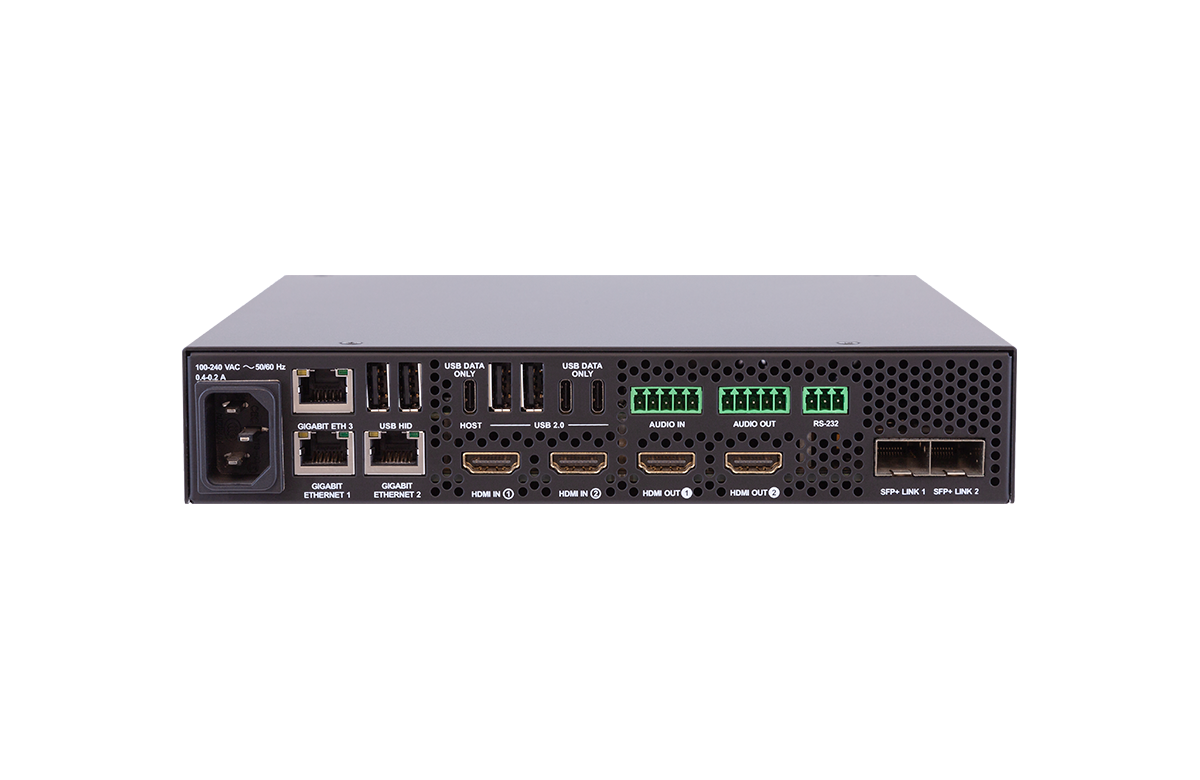

The F130 genre is very similar to the F120, but without IR and with full USB 2.0 support. Moreover, the USB-B type of host connector is replaced with a USB-C connector (with USB 2.0 data only support).

Latency-Free Multistreaming

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user.

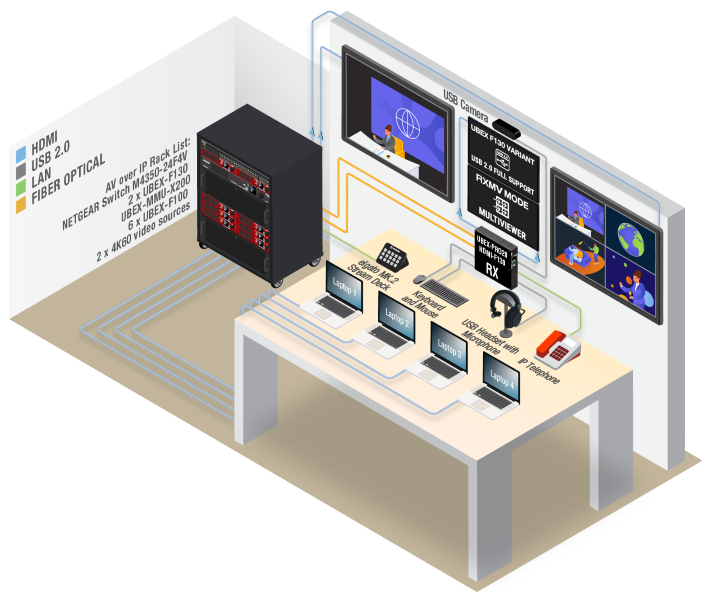

UBEX units can connect to create a complex network with the use of a standard Ethernet switch.

Uncompressed Signal Management Over IP

Lightware’s Ultra Bandwidth Extender, the UBEX is a new, optical solution, which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension without latency, operating using a packet-based transmission instead of the conventional method.

User-installable Optical Modules

The device has standard, certified 10 Gbps SFP+ optical modules, which are plug and play and interchangeable by the user. Either duplex multimode/singlemode modules (one fiber for each direction per 10 Gbps link) or bi-directional singlemode modules (one fiber for both direction per 10 Gbps link) can be installed.

Features

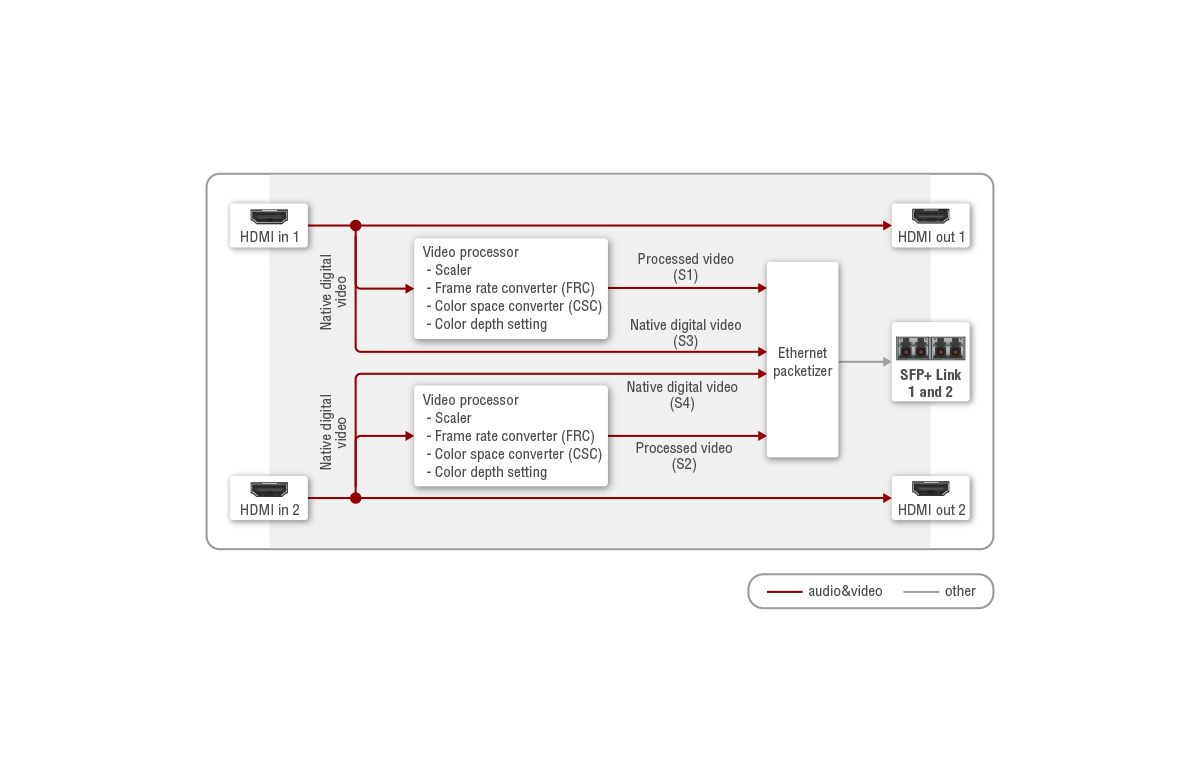

• Scaling of video signals Matching the properties of the target display/sink
• Full USB 2.0 support
• Support for high bitrate audio Including Dolby TrueHD, Dolby ATMOS and DTS-HD Master Audio

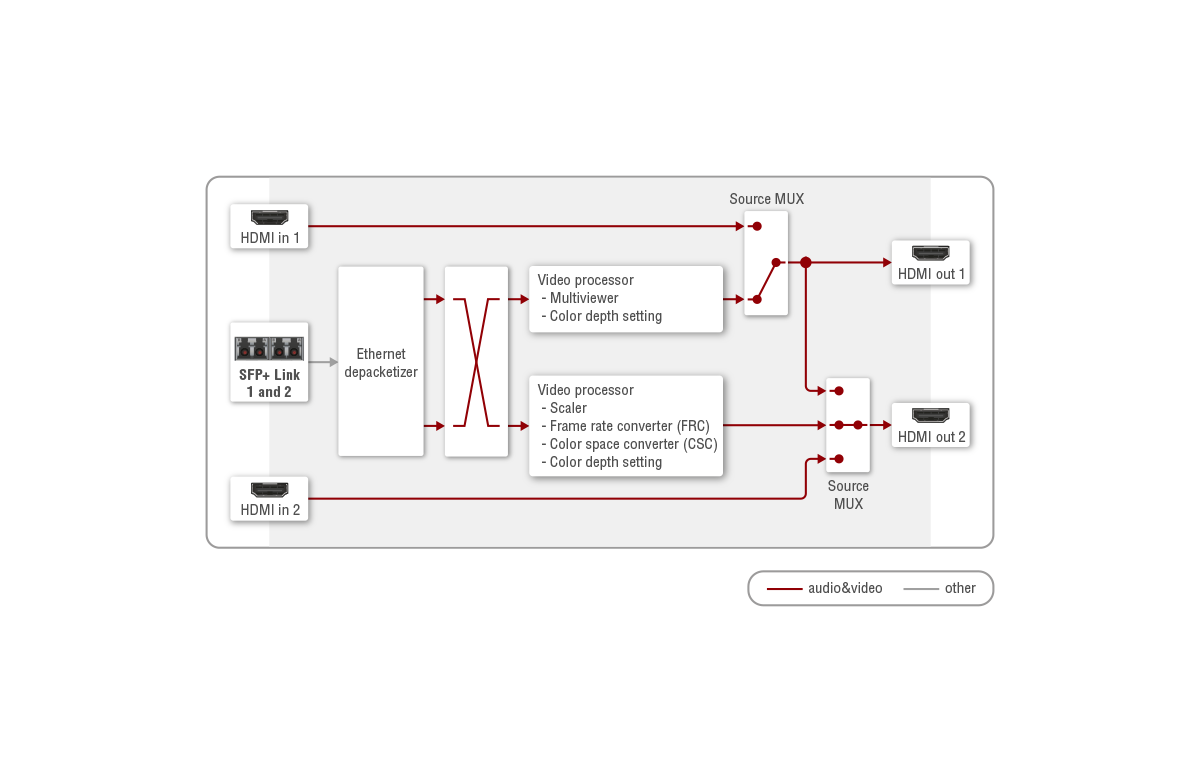

• Multiviewer operation mode
• Ethernet extension (1 Gbps)

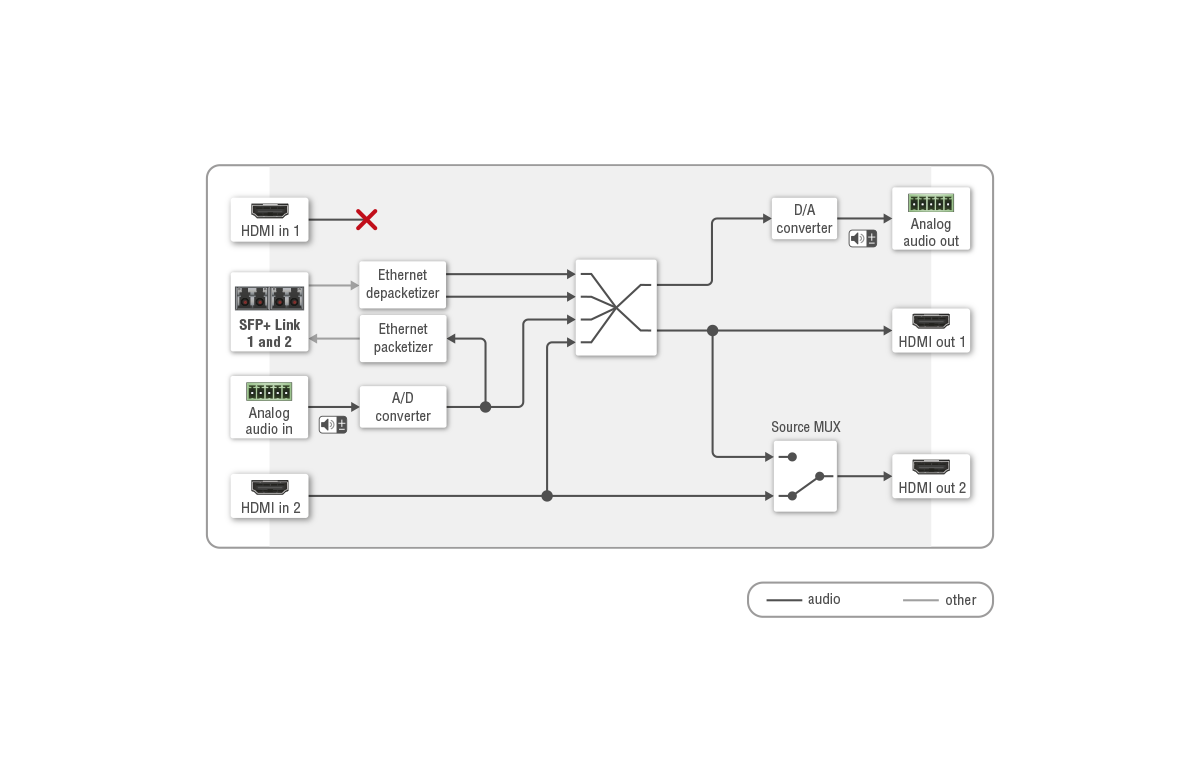

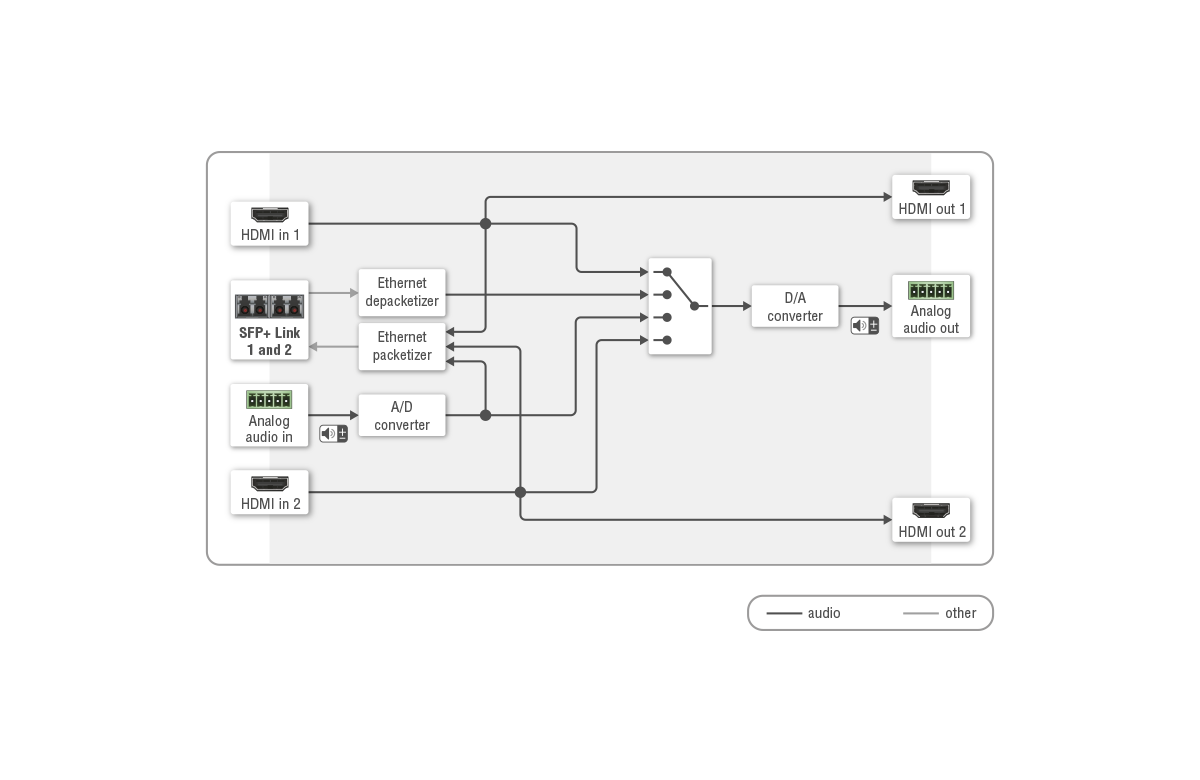

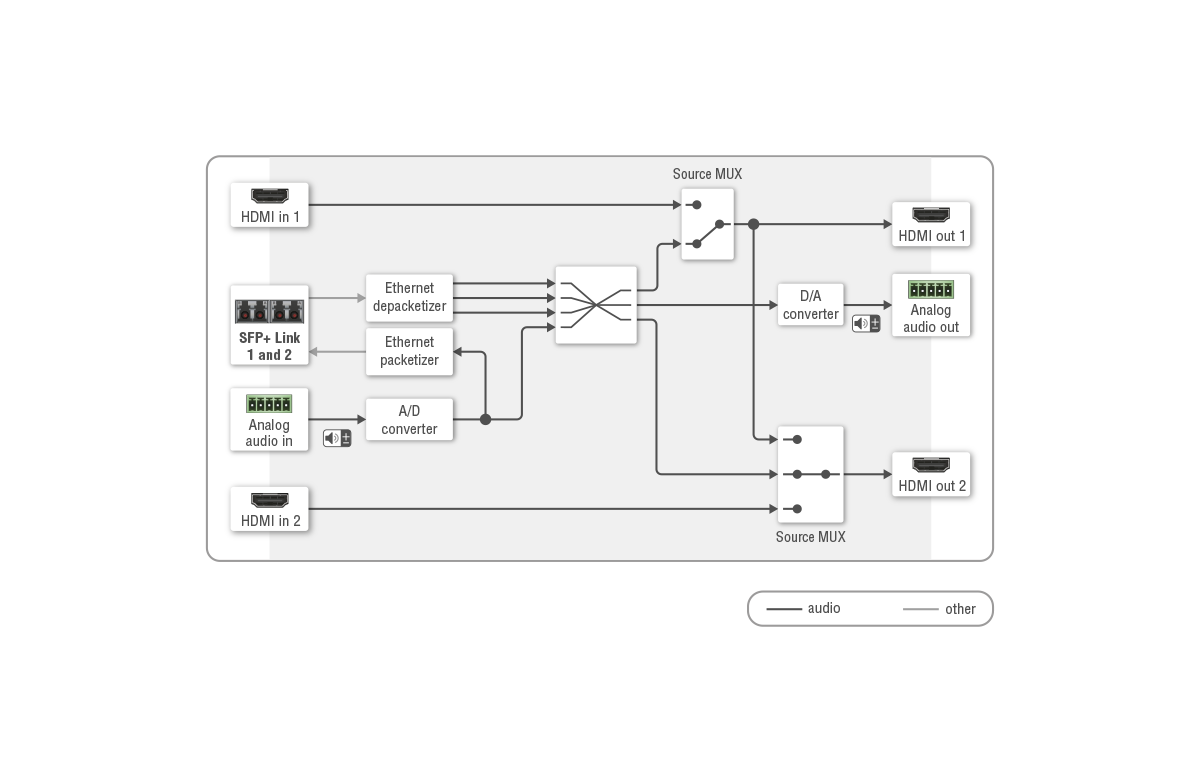

• Audio embedding and de-embedding
• USB KVM (HID) extension
• 4096x2160@60Hz 4:4:4 maximum resolution (600MHz)
• Uncompressed video up to 18 Gbps datarate (600 MHz Pixel clock)
