Meeting the Highest Standards for Security and Reliability

The UBEX-Pro20-HDMI-F100 successfully passed and got certified for the Tempest SDIP27 Level B standard, making it suitable for defense and intelligence projects where high levels of reliability is critical.

Scalable, Latency-Free 4K Video Over IP

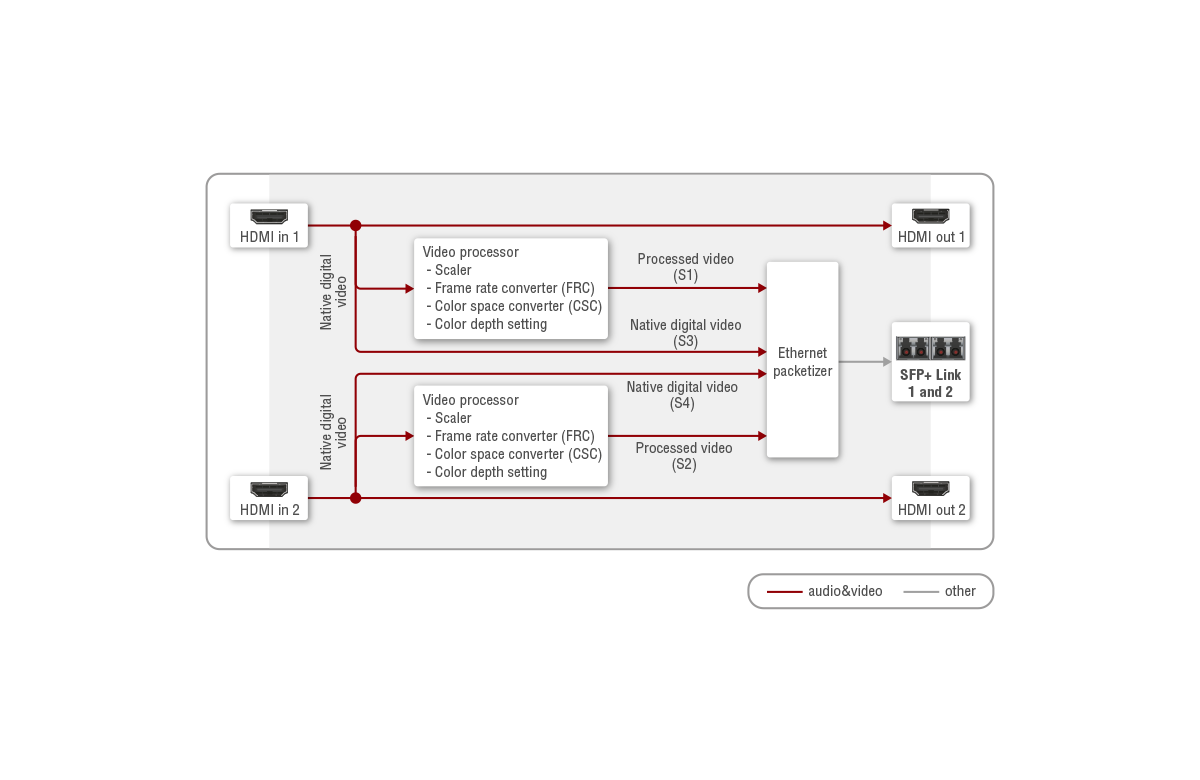

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user.

UBEX units can connect to create a complex network with the use of a standard Ethernet switch.

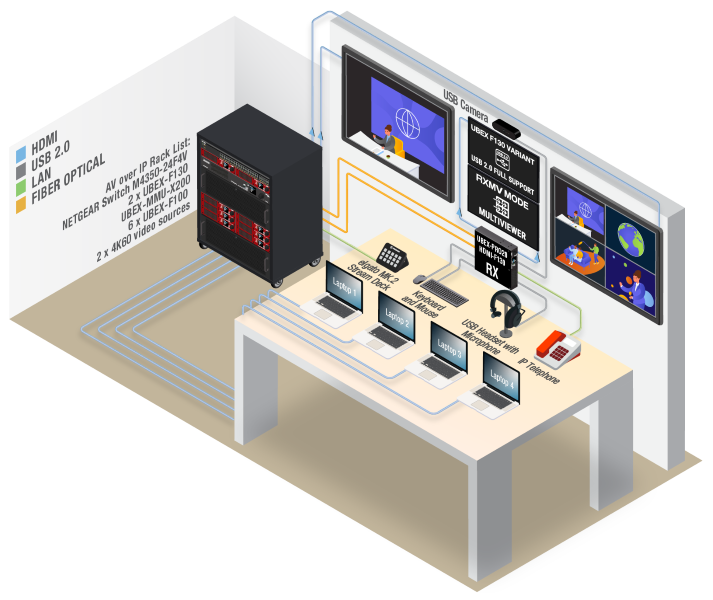

An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint. The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup.

One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units.

Using visually lossless compression, UBEX can extend two signals over a single, 10 Gbps Ethernet port. This generates substantial cost saving on the required Ethernet switch side, as with UBEX only half the router size is required compared to the needs of similar, 10 Gbps IP based architectures. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.

Uncompressed Signal Management Over IP

Lightware’s Ultra Bandwidth Extender, the UBEX is a new, optical solution, which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension without latency, operating using a packet-based transmission instead of the conventional method.

User-installable Optical Modules

The device has standard, certified 10 Gbps SFP+ optical modules, which are plug and play and interchangeable by the user. Either duplex multimode/singlemode modules (one fiber for each direction per 10 Gbps link) or bi-directional singlemode modules (one fiber for both direction per 10 Gbps link) can be installed.

Features

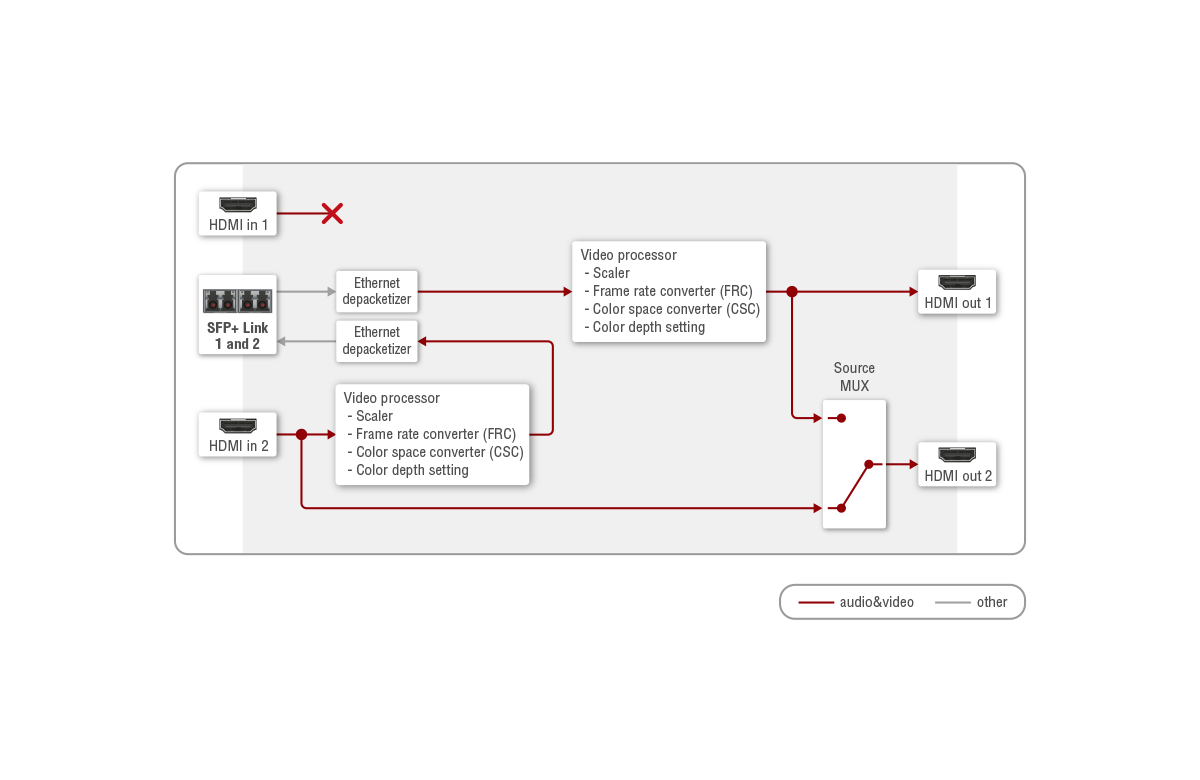

• Scaling of video signals Matching the properties of the target display/sink

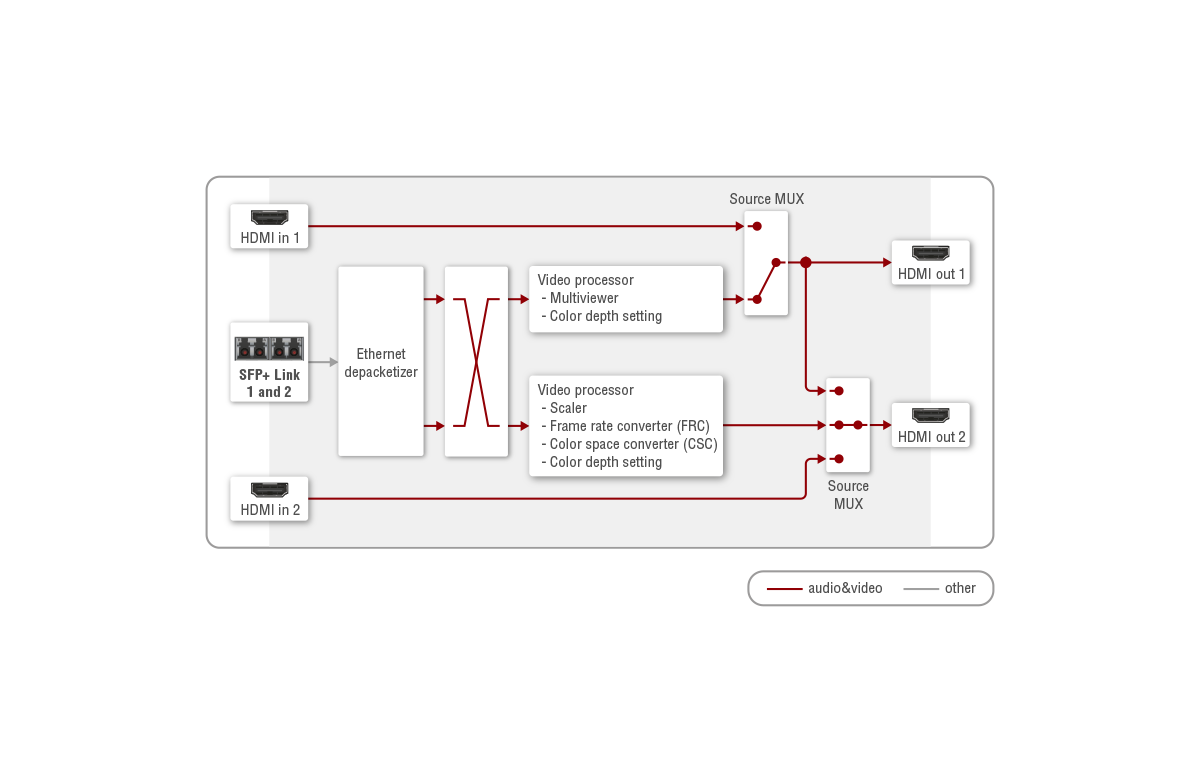

• Multiviewer operation mode
• Support for high bitrate audio Including Dolby TrueHD, Dolby ATMOS and DTS-HD Master Audio
• HDR Support
• 4096x2160@60Hz 4:4:4 maximum resolution (600MHz)
• Uncompressed video up to 18 Gbps datarate (600 MHz Pixel clock)
