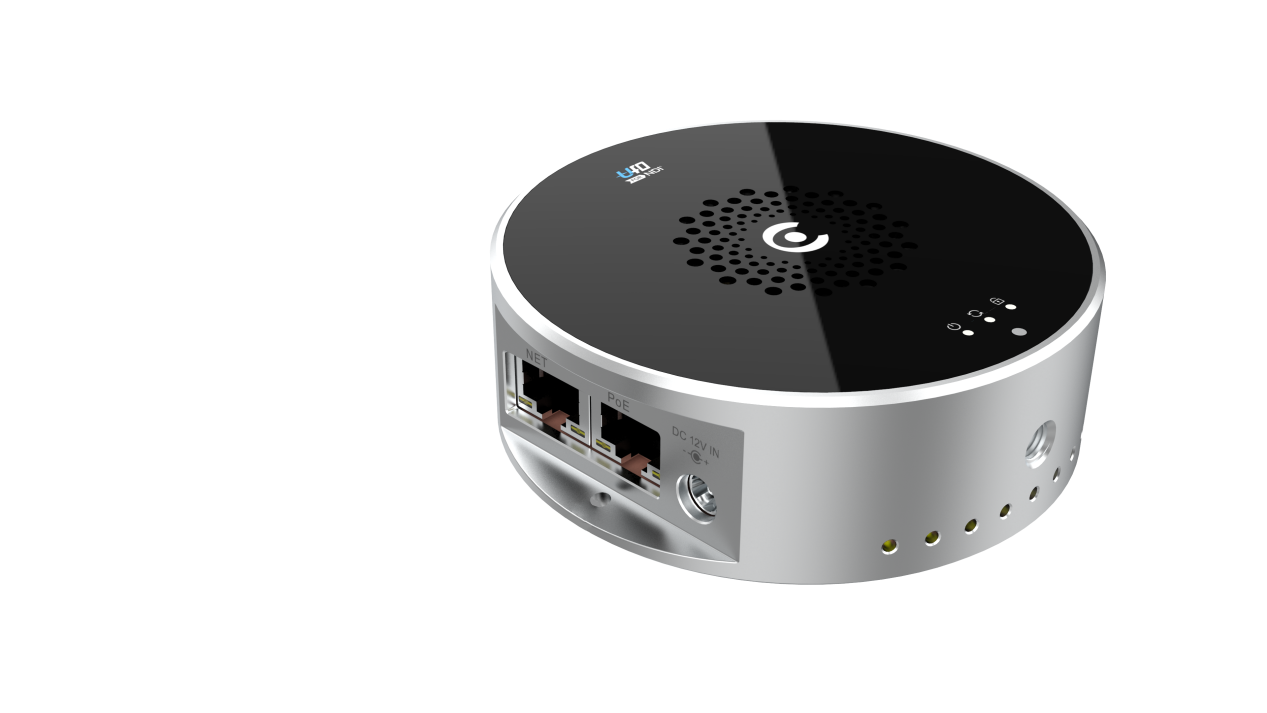

Utilizing the advantages of NDI IP-based interconnection and a complete product ecological chain, U40 supports bi-directional conversion of HD HDMI and NDI®, convert and output RTSP, RTMP, SRT, HLS, UDP, etc. to NDI|HX.
It features 4K P60 input, HDMI/USB/IP to NDI®, PoE + DC Out, PTZ, Tally, cold shoe camera mount. The small and exquisite U40 4K NDI encoder is equipped with all the functions you want, with only one network cable, video sources from HDMI cameras, web cameras, USB cameras and others can easily go into the NDI world and enjoy the advantages of IP-based transmission featuring ultra-high image quality and ultra-low latency.
Features
Comprehensive NDI® performance, support multiple interfaces to NDI®
Convert 4Kp60 HDMI to full NDI®, compatible with HD resolution
Support 3.5mm analog audio embedded in full NDI®
Support USB video to NDI® (customization)
Convert IP streams such as SRT/RTMP/RTSP/UDP/HLS to NDI®|HX. Dual Gigabit Ethernet ports, super PoE performance and PTZ Control
Dual Gigabit Ethernet ports can be applied to two different networks simultaneously, like SRT/RTMP input via WAN which can be output to NDI®|HX via LAN
One Ethernet port with super PoE power supply function, it not only can power the device itself, but also can output DC 12V1A to power other devices
Built-in Tally for PVW/PGM
Support serial port and PTZ control, support Sony Visca/PELCO-D/PELCO-P and other protocols
