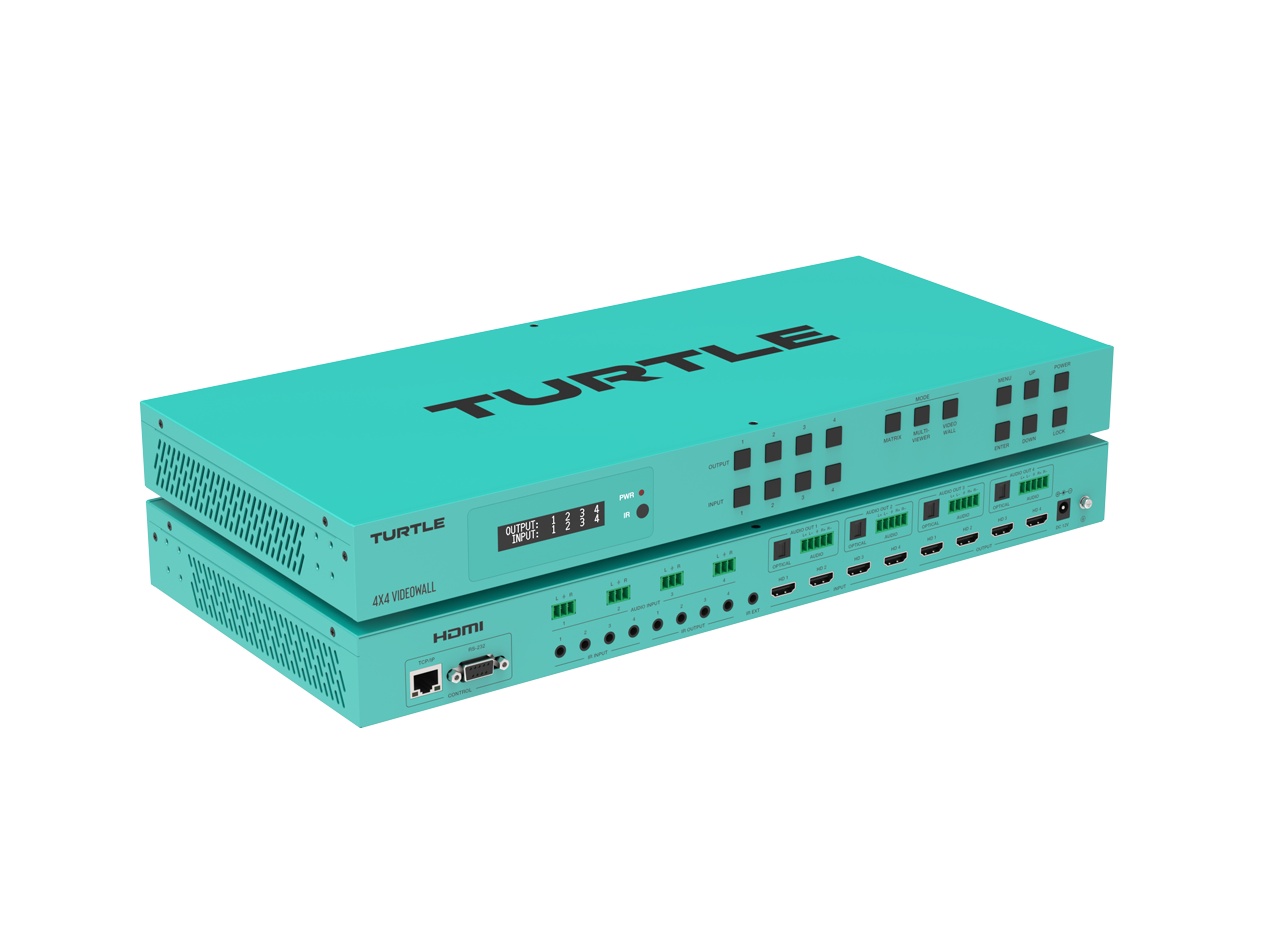

Turtle AV Video Wall 4x4 - Product - Midwich

The Turtle 4x4 Video Wall can be configured as a 1x4 Video Wall, 4x4 Matrix, or 1x4 Multiview. Each input and output supports up to 4K60, 4:4:4 video via HDMI 2.0 with seamless scaling, and audio embedding and de-embedding via optical or line in/out over Phoenix connectors. With WebGUI controls and API integration, it’s the ultimate versatile solution for professional AV environments.

Key Features:

• 4K60 4:4:4. 18Gbps HDMI 2.0.
• 4x4 Video Wall, Matrix, Multivew all in one
• Audio Embedding / De-embedding
• API Support
• Seamless switching
• HDCP 2.2. Advanced EDID management.
• Easy set up via WebGUI
• TAA Compliant
• 5 Year Warranty

4K60 4:4:4. 18Gbps HDMI 2.0

Experience uncompromising video quality with full 4K60 resolution, HDR support, and an 18Gbps HDMI 2.0 pipeline for vibrant, crystal-clear visuals.

Video Wall, Matrix, Multiview - All in One

Switch effortlessly between a Video Wall, 4x4 Matrix, or Multiview configurations—all in a single, powerful device tailored to your needs.

10 Modes of Video Wall

Choose from 10 preset layouts to create stunning video walls, perfect for any display scenario. Switch between display modes with the front buttons, WebGUI, or by RS-232.

12 Multiview Configurations

Display up to 12 customizable layouts on one screen, perfect for monitoring or presentations. Easily switch layouts via WebGUI, API, or front panel controls for ultimate flexibility.

4x4 Matrix

Route any input to any output or create multiple simultaneous configurations with the robust 4x4 Matrix functionality.

Audio Embedding / De-Embedding

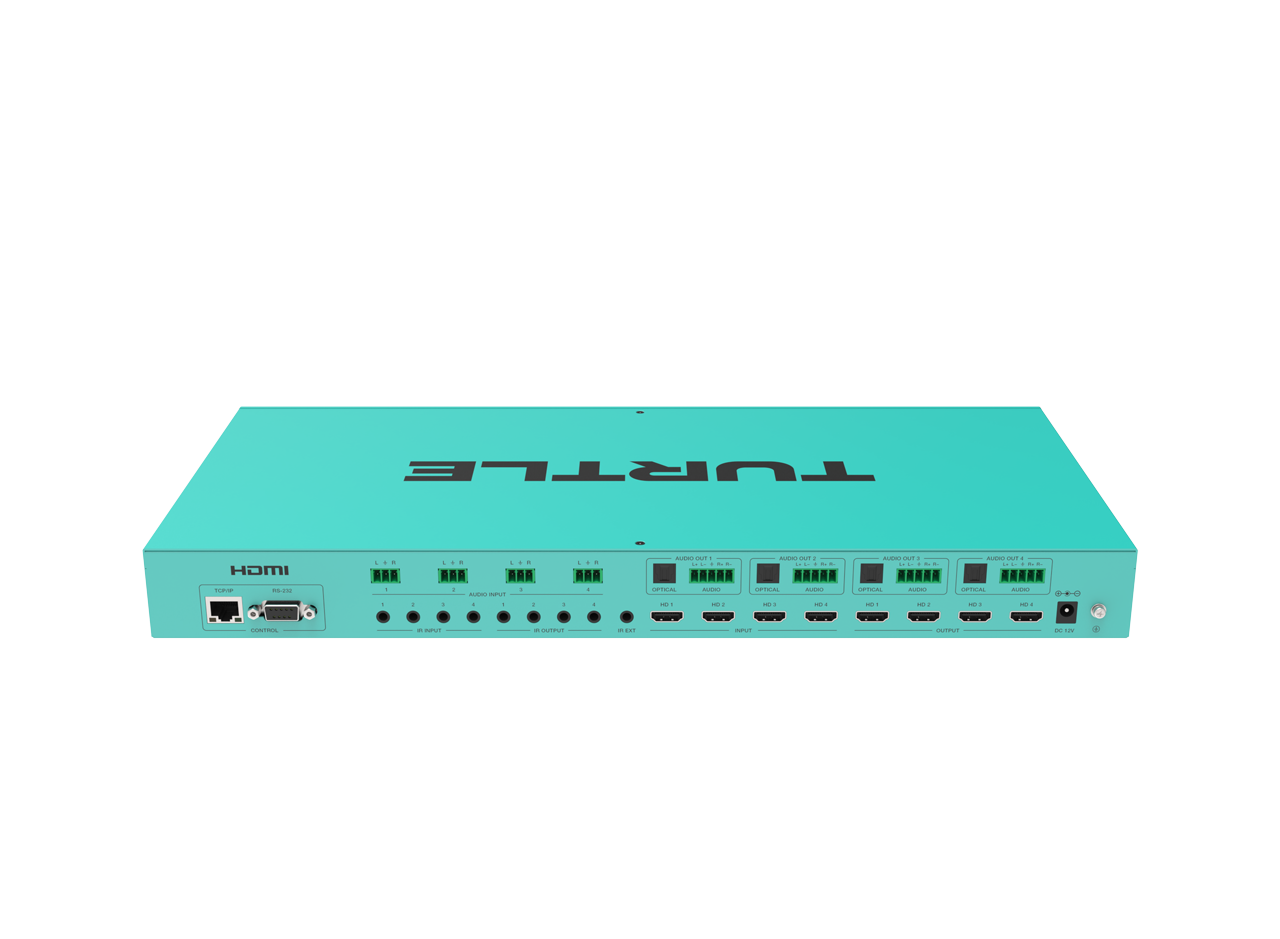

Seamlessly embed or de-embed audio as needed via the Optical or Phoenix connectors for total flexibility in any AV setup.

Seamless Switching

Enjoy instant, lag-free switching between inputs, ensuring smooth transitions without frame loss.

Scaling

Individually scale each source with precision, supporting resolutions up to 4K60 4:4:4.

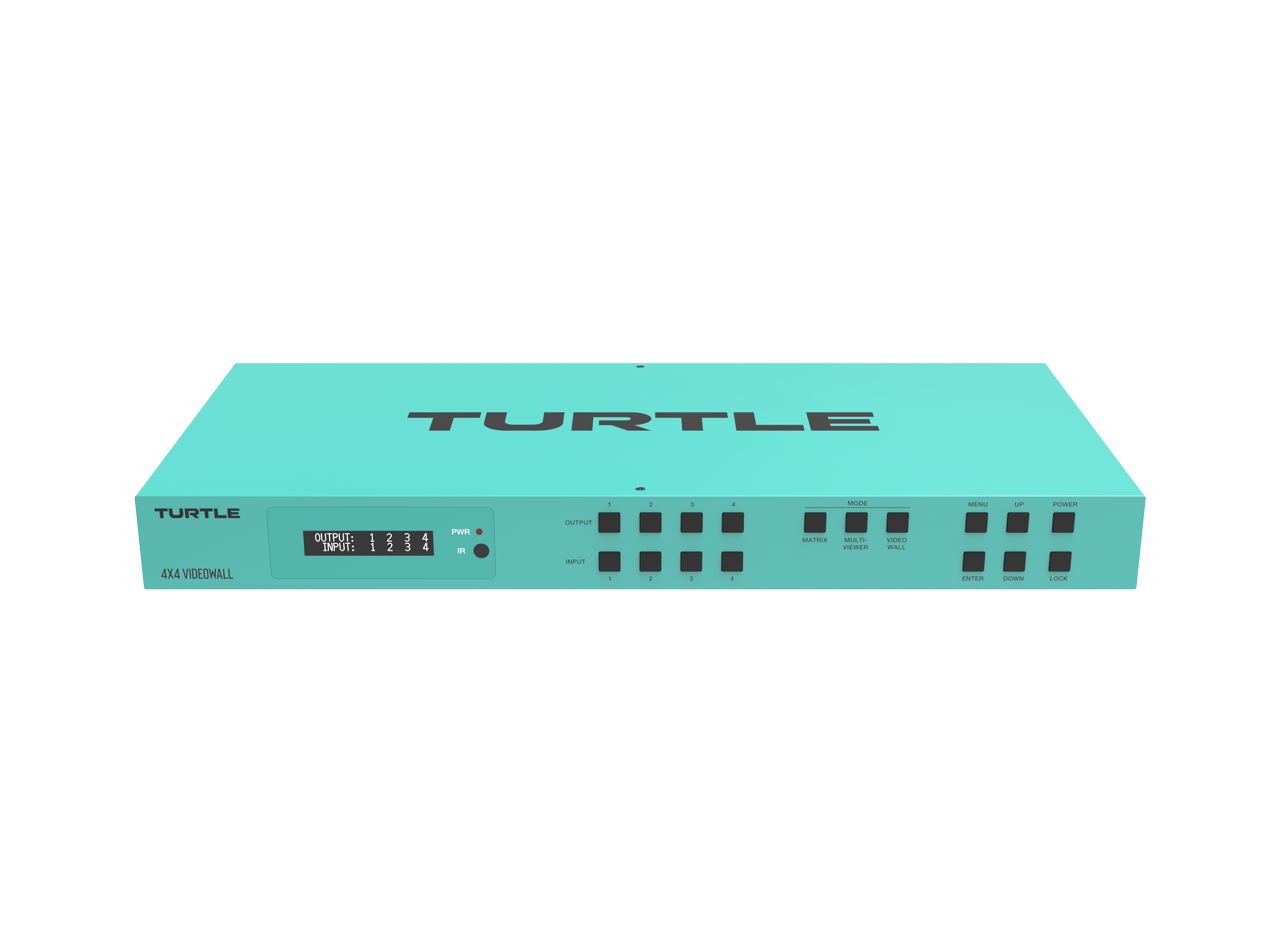

Easy Setup via WebGUI or Front Buttons.

Set up and manage configurations effortlessly using the intuitive WebGUI, or go hands-on with the front panel controls.

API Support

Integrate easily with third-party systems via robust API support for advanced control and automation.

HDCP 2.2

Fully compliant with HDCP 2.2, ensuring compatibility with the latest 4K content and devices.

Advanced EDID Management

Manage EDID with ease using 12 factory-defined settings, 2 user-defined modes, and 4 copy modes. Select the desired EDID mode or copy an EDID to an input port via the front panel, RS-232 control, or WebGUI for seamless integration and optimal compatibility.

Built tough with all metal chassis

Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

TAA Compliant

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
