Turtle AV Phoenix 8x8 Dante Audio Bridge - Product - Midwich

Phoenix. 8 in. 8 out. Dante over Euroblock.

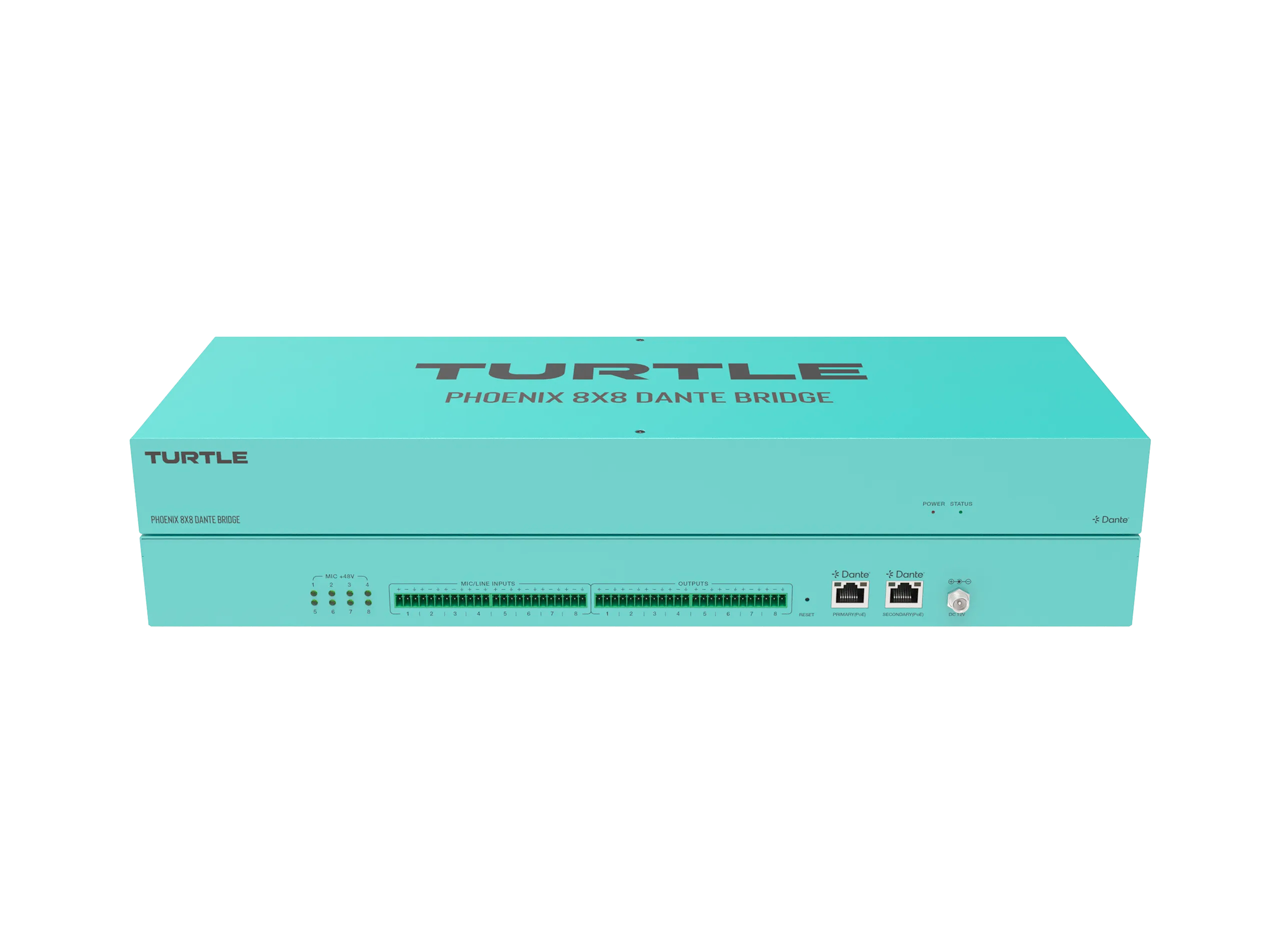

Phoenix 8x8 is a compact Dante bridge with 8 analog inputs and 8 outputs, each on Euroblock connectors with 48V phantom power for easy mic integration. Dual network ports provide Primary and Secondary Dante support, PoE on both ports, and a locking DC connector for triple power redundancy.

Built for professional installs, Phoenix includes a full-featured WebGUI for DSP control, preset management, EQ, delay, and system settings. It’s API controllable, rack-mountable with included Turtle Ears, housed in a rugged metal chassis, and finished in signature Turtle Aqua.

TAA compliant and backed by a 5-year advance replacement warranty, Phoenix 8x8 is fully compatible with all Dante tools and software, making it an ideal choice for AV, broadcast and live production environments.

Euroblock connectors.

Phoenix 8x8 has Euroblock connectors on all analog inputs and outputs for fast and easy installations.

Phantom Power.

Phoenix provides 48V Phantom Power on all 8 Euroblock inputs for easy integration with microphone set ups.

Mic preamps.

Phoenix 8x8 features built-in mic preamps with individual gain control on all eight inputs, making it easy to dial in the perfect level for each source. Whether you’re connecting dynamic or condenser mics, Phoenix gives you the flexibility to fine-tune your audio right at the input.

Primary and Secondary Dante networks for redundancy.

Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications.

PoE Redundancy.

Both network ports offer PoE power for PoE power redundancy. Plug in the locking DC connector in addition to dual PoE and you have triple power redundancy.

Total Dante Compatibility.

Phoenix 8x8 is 100% compatible with all Dante hardware and software products from other manufacturers, including the amazing software tools from Audinate including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

DSP control via WebGUI

The built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely

Adjust input and output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall Presets

Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings

Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities

Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup

Control everything from input sources to auto-standby times, all through an easy-to-use interface.

1RU Rackmount

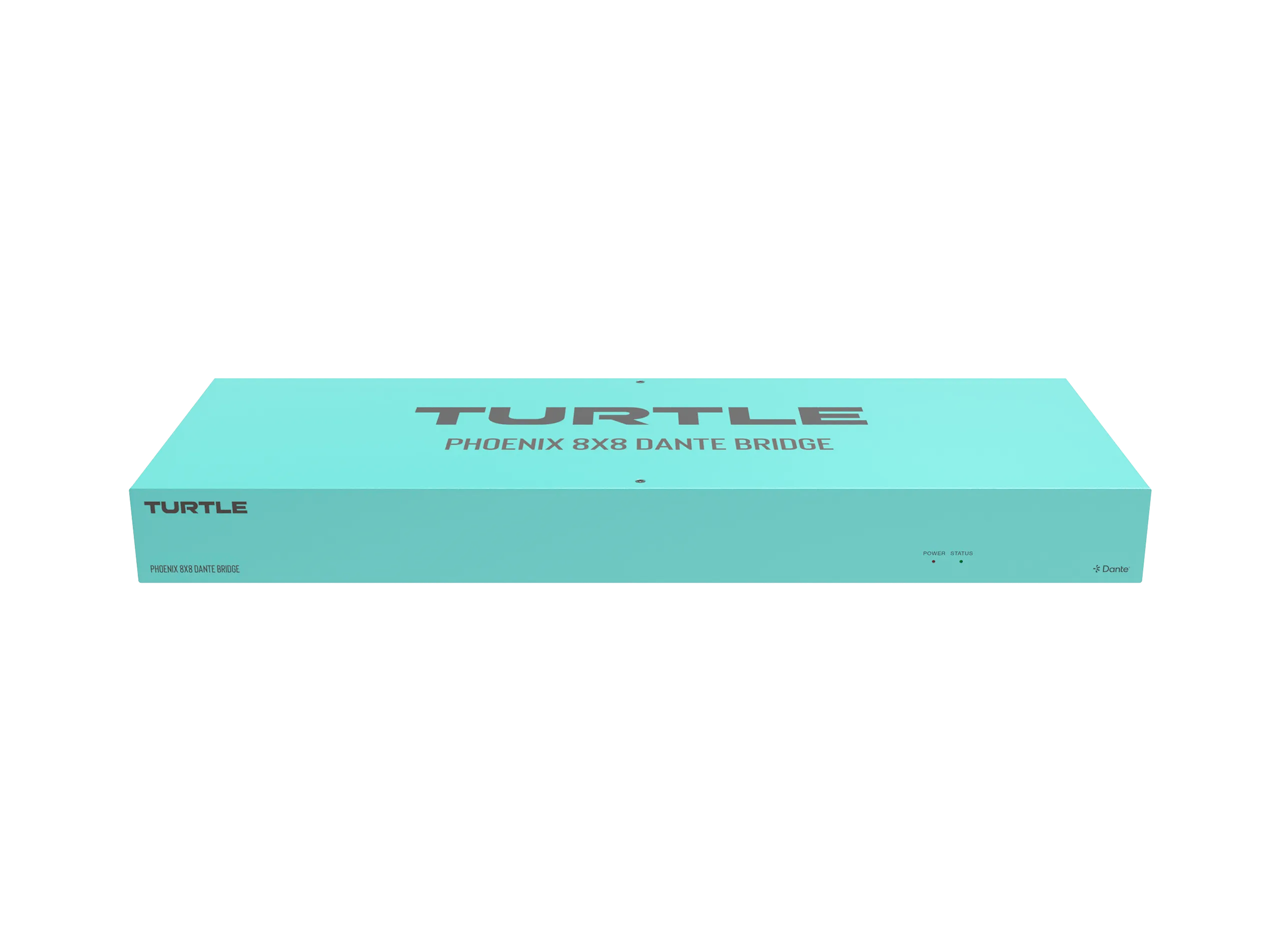

The Phoenix 8x8 is an elegant 1RU box for permanent installations with included rack ears which we are now calling Turtle Ears.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
