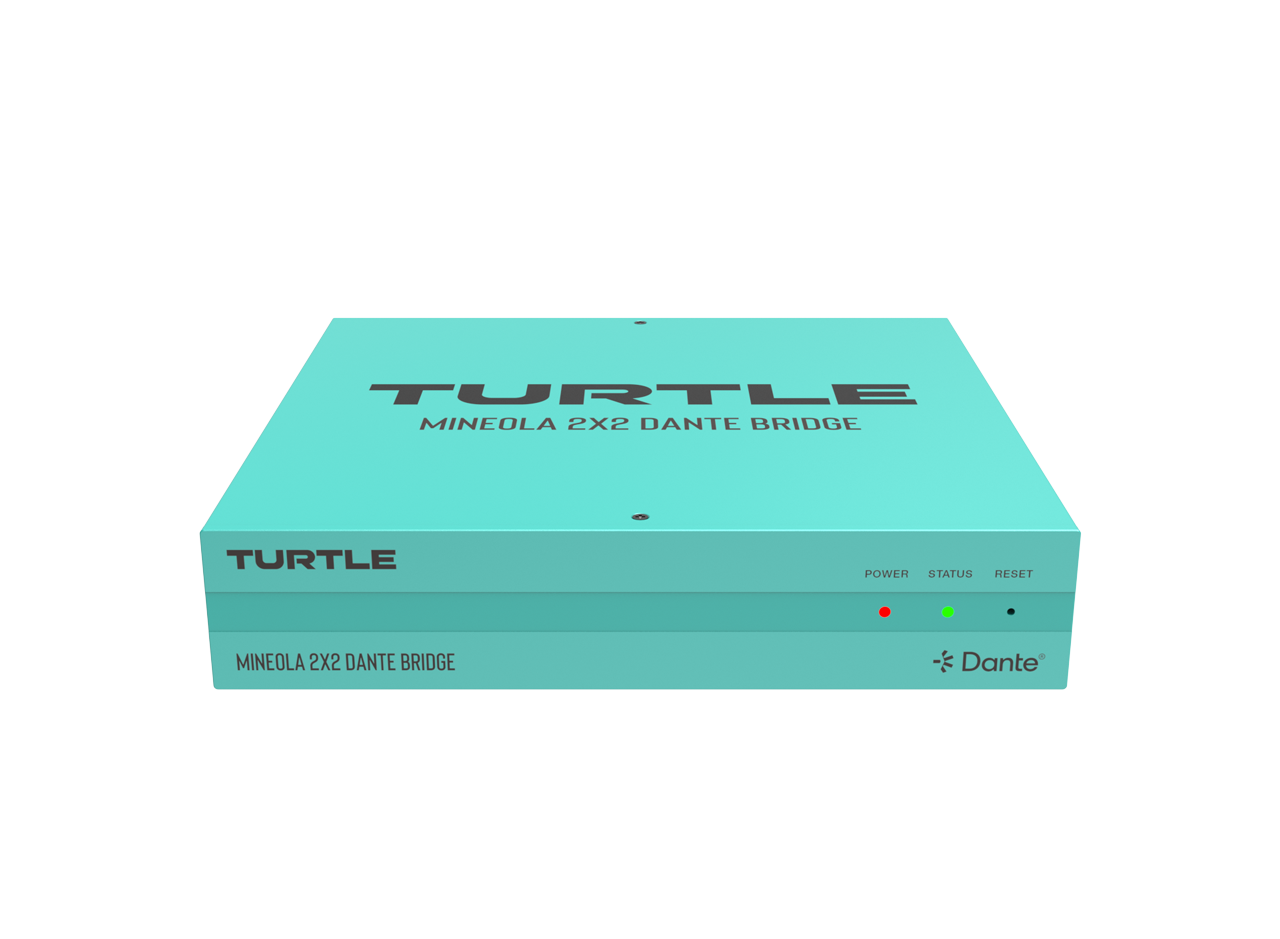

Turtle AV Mineola 2x2 Dante Audio Bridge - Product - Midwich

The Mineola 2x2 connects the digital Dante and analog XLR worlds with two inputs and two outputs, perfect for compact setups. PoE-powered and equipped with 48V phantom power on both XLR inputs, it’s ideal for easy microphone connections. All connectors are locking, with Neutrik etherCON on the dual network ports for reliable redundancy. Fully compatible with the entire Dante software suite, the Mineola 2x2 integrates seamlessly into live event production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS, Telestream Wirecast. Designed for flexibility and performance, it’s the perfect choice for professional audio applications.

Key Features:

• 2x XLR to Dante, 2x Dante to XLR
• 48V Phantom Power on all XLR inputs
• PoE & 12V DC
• Primary and Secondary Dante network ports
• Locking etherCON connectors
• 2x XLR/1/4” TRS combo ports.
• Includes rackmount kit
• TAA Compliant
• 5 Year Warranty

PoE with Phantom Power.

Mineola streamlines setups by combining Power over Ethernet (PoE) with 48V Phantom Power on both XLR inputs. One cable to rule them all.

Power Redundancy.

Use PoE and external PSU for power redundancy. Two cables to rule them all.

Primary and Secondary Dante networks for redundancy.

Dual network ports allow for Primary and Secondary Dante streams, ensuring redundancy and uninterrupted audio in critical applications. Four cables to rule them all.

Locking Connectors. Designed for Live.

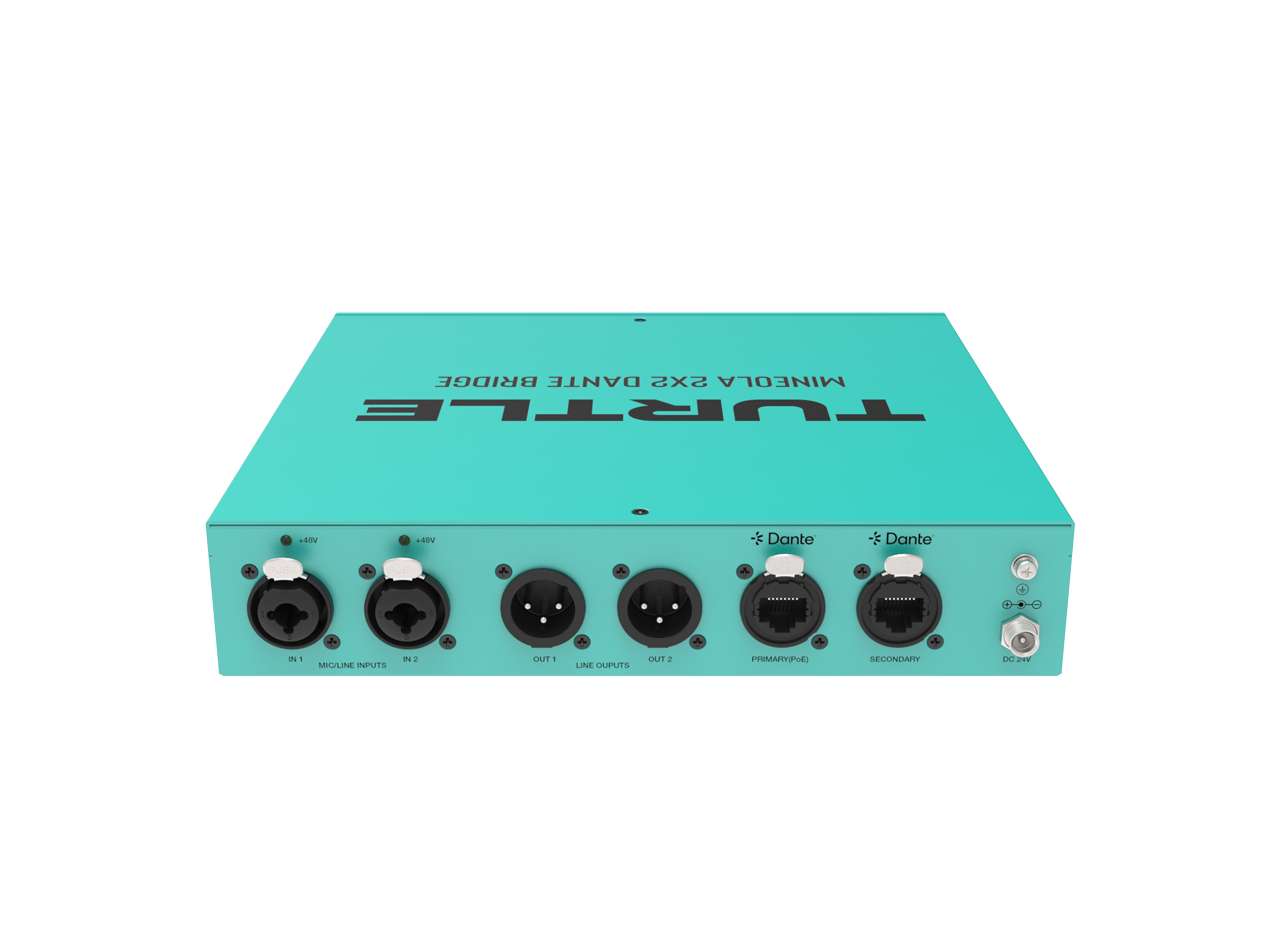

All connectors on Mineola are locking, providing maximum security. The network ports are equipped with locking Neutrik etherCON connectors, the external PSU connector is locking, and of course all XLR connectors are locking too.

Total Dante Software Compatibility.

Mineola 2x2 is 100% compatible with all Dante software products including Dante Controller, Dante Virtual Soundcard (DVS), Dante Domain Manager, Dante Connect, and Dante Director.

Audio for Live Production.

When combined with Dante Virtual Soundcard (DVS), Mineola connects easily to software-based live production systems including vMix, Vizrt Vectar, Vizrt TriCaster, OBS Studio, and Telestream Wirecast, and all Dante compatible audio systems to provide audio inputs for live event production.

Rack ’Em or Stack ’Em

The Mineola 2x2 is super versatile and can be used as a compact throwdown box, or mounted in a 19” rack using the included rack mounts. Mineola 2x2 is half rack width so you can rack either one or two units in 1RU. This flexibility makes Mineola 2x2 perfect for on-stage microphone inputs, lecterns, portable fly-away kits, or permanent installations.

Built tough with all metal chassis.

Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
