Turtle AV DARWIN HD H.265 Rx - Product - Midwich

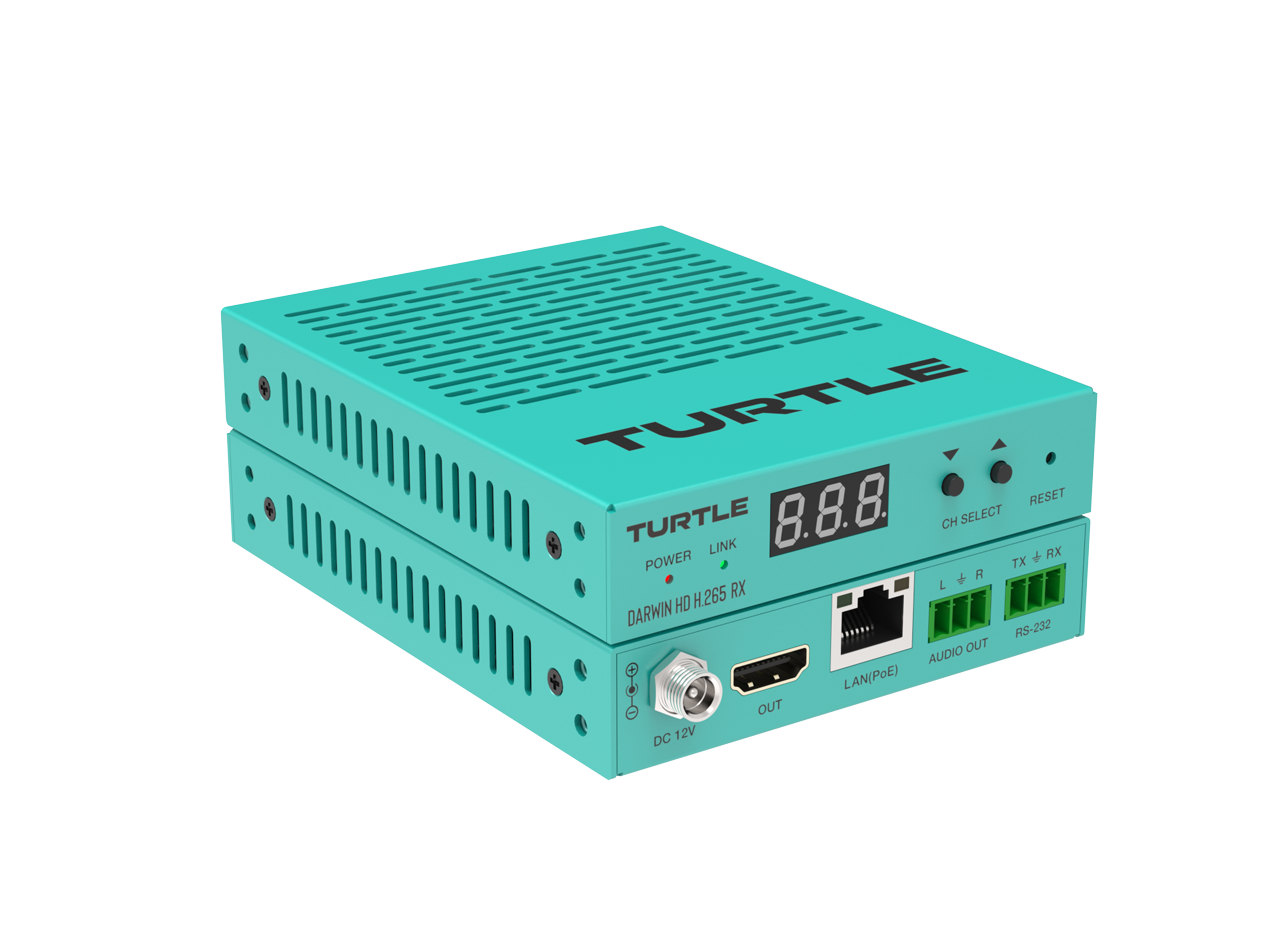

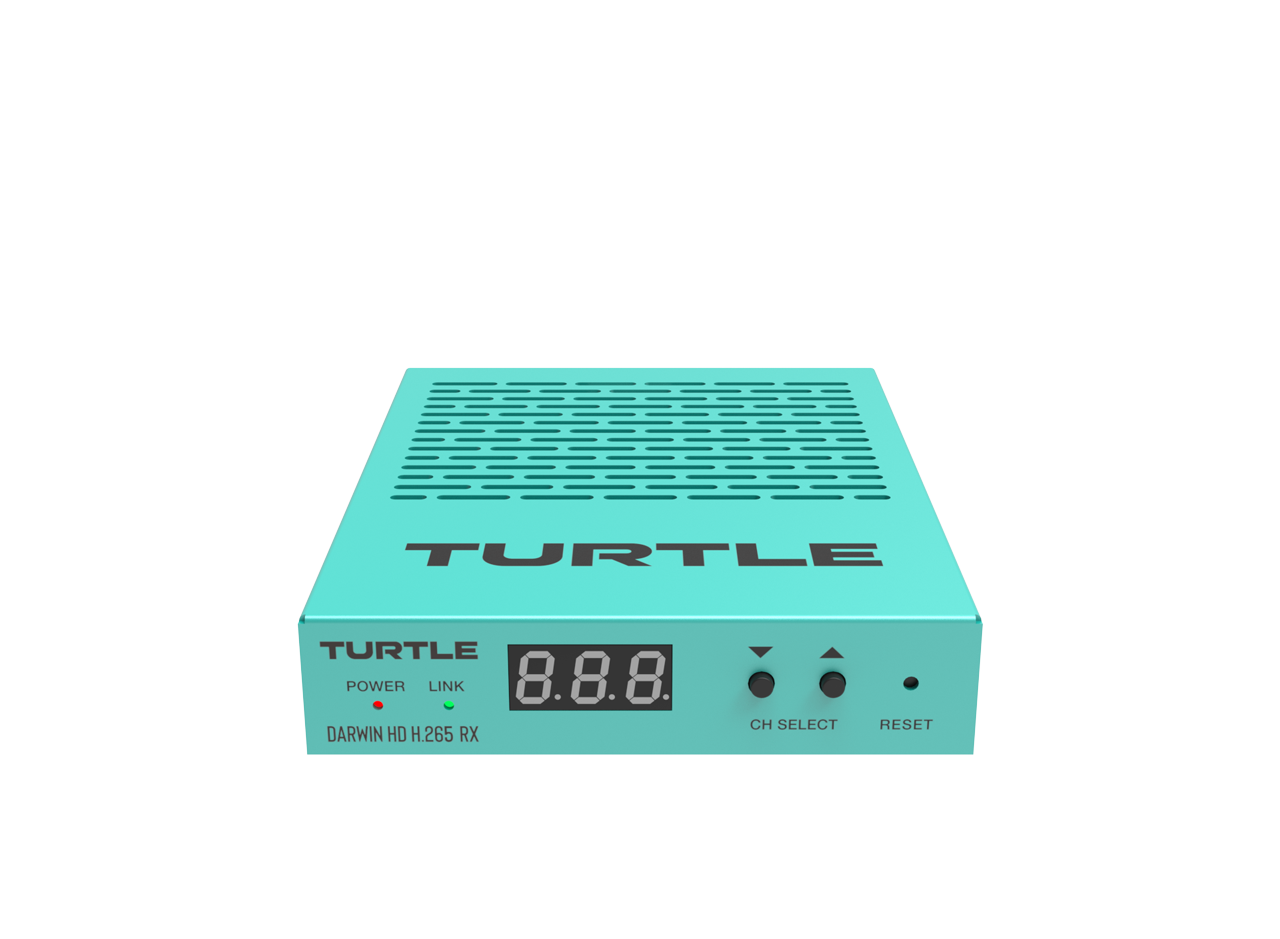

The Darwin HD Rx receives stunning 1080p 60Hz 4:4:4 video with H.265 hardware acceleration, ensuring exceptional image quality at reduced bitrates. Equipped with PoE for simplified installation, it supports one-to-one and one-to-many multicast or unicast configurations, making it ideal for scalable AV environments. Advanced features include EDID management with scaling, HDCP 1.4, Phoenix analog audio breakout, and video wall support up to 9x9. Darwin HD Rx is fully TAA compliant and comes with a 5-year warranty.

Key features:

• 1080p60 4:4:4
• H.265/H.264 configurable receiver
• HDCP1.4 compliant
• Advanced EDID management
• Unicast or Multicast transmission over GbE networks
• PoE and 12V DC power
• Video Wall up to 9x9
• TAA Compliant
• 5 Year Warranty

1080 60Hz in 4:4:4.

The Darwin HD Rx receives pristine 1080 resolution at 60Hz with 4:4:4 chroma subsampling, ensuring true-to-life color and exceptional detail

PoE. DC. Or both.

Power over Ethernet (PoE) streamlines installation with a single cable delivering both power and data, alternatively you can power with the included PSU. Or use PoE and DC for power redundancy.

One to One. One to Many.

Configure a direct 1-to-1 connection for simple point-to-point, or scale up with 1-to-Many multicast, distributing your content to multiple endpoints simultaneously.

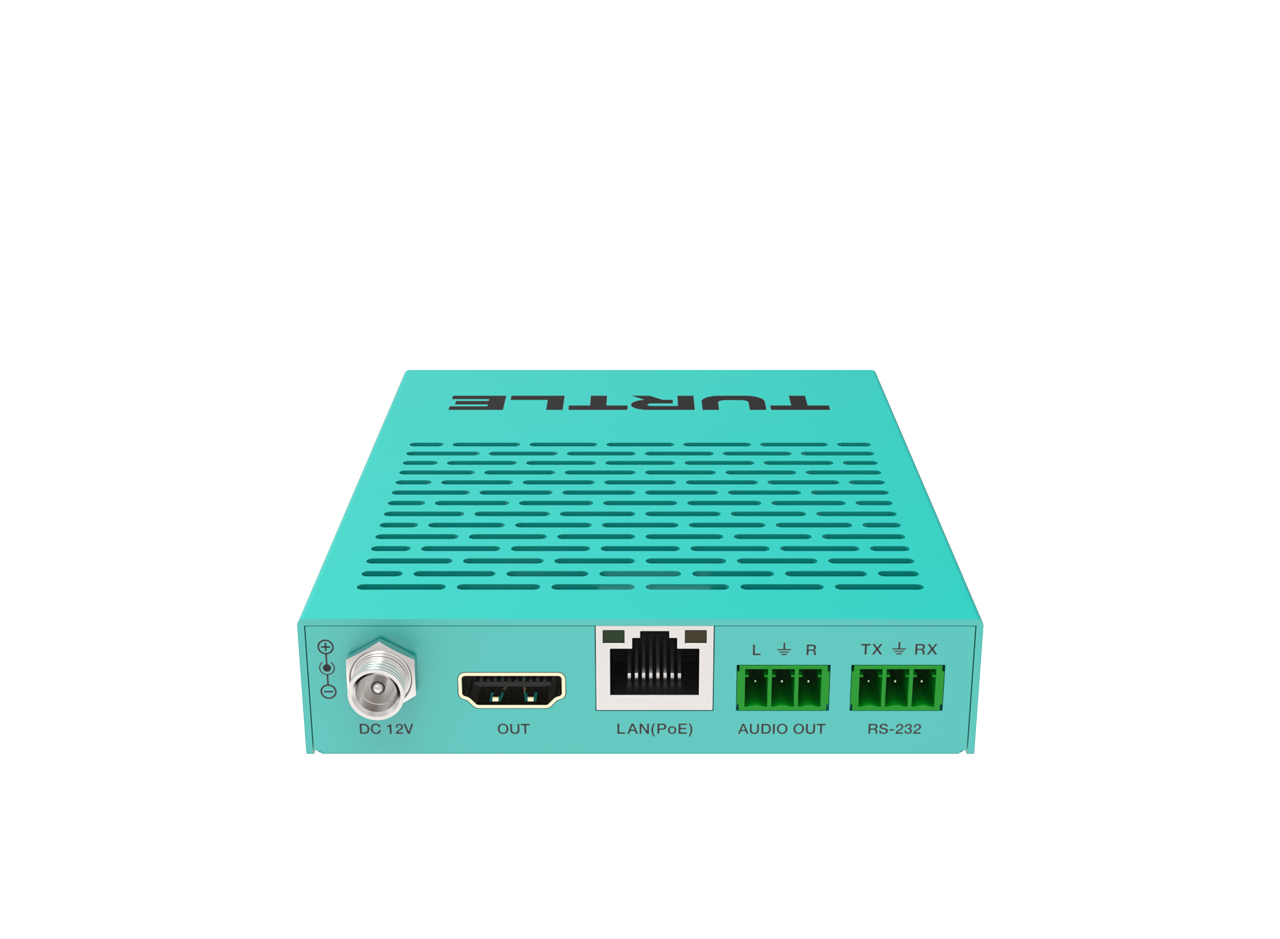

Left & Right analog breakout over Phoenix.

Receive balanced audio with ease using the left and right analog Phoenix connectors.

HDCP 1.4.

Ensure total compatibility and compliance with copyright standards using HDCP 1.4.

Advanced EDID Management.

Darwin HD family simplifies connections with advanced EDID management, featuring automatic detection and the ability to load custom EDID tables directly through the WebGUI.

Unicast. Multicast.

Darwin HD supports both Unicast and Multicast. Use Unicast for direct, one-to-one transmission, ensuring reliable performance with minimal network bandwidth. Switch to Multicast for efficient one-to-many distribution, perfect for sending the same content to multiple endpoints simultaneously.

Small Form Factor.

The compact design makes it effortless to mount discreetly behind screens or in tight spaces. Perfect for sleek, professional installations

Videowall. Up to 9x9.

Darwin HD Rx supports videowall configurations up to 9x9, enabling a massive 81 displays to be configured as a single display.

Built tough with all metal chassis.

Mineola are all housed in an all-metal chassis for maximum ruggedness. And yes, we painted them Turtle Aqua so you know it looks cool even if mounted under a table or in a rack room where no one will ever see them.

No fans. Only Fans.

Darwin family have no fans. All models are fan-less, totally silent, and without vibration. No fans. Only Fans.

TAA Compliant.

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
