Turtle AV CHAZY 4K Wall Plate Tx - Product - Midwich

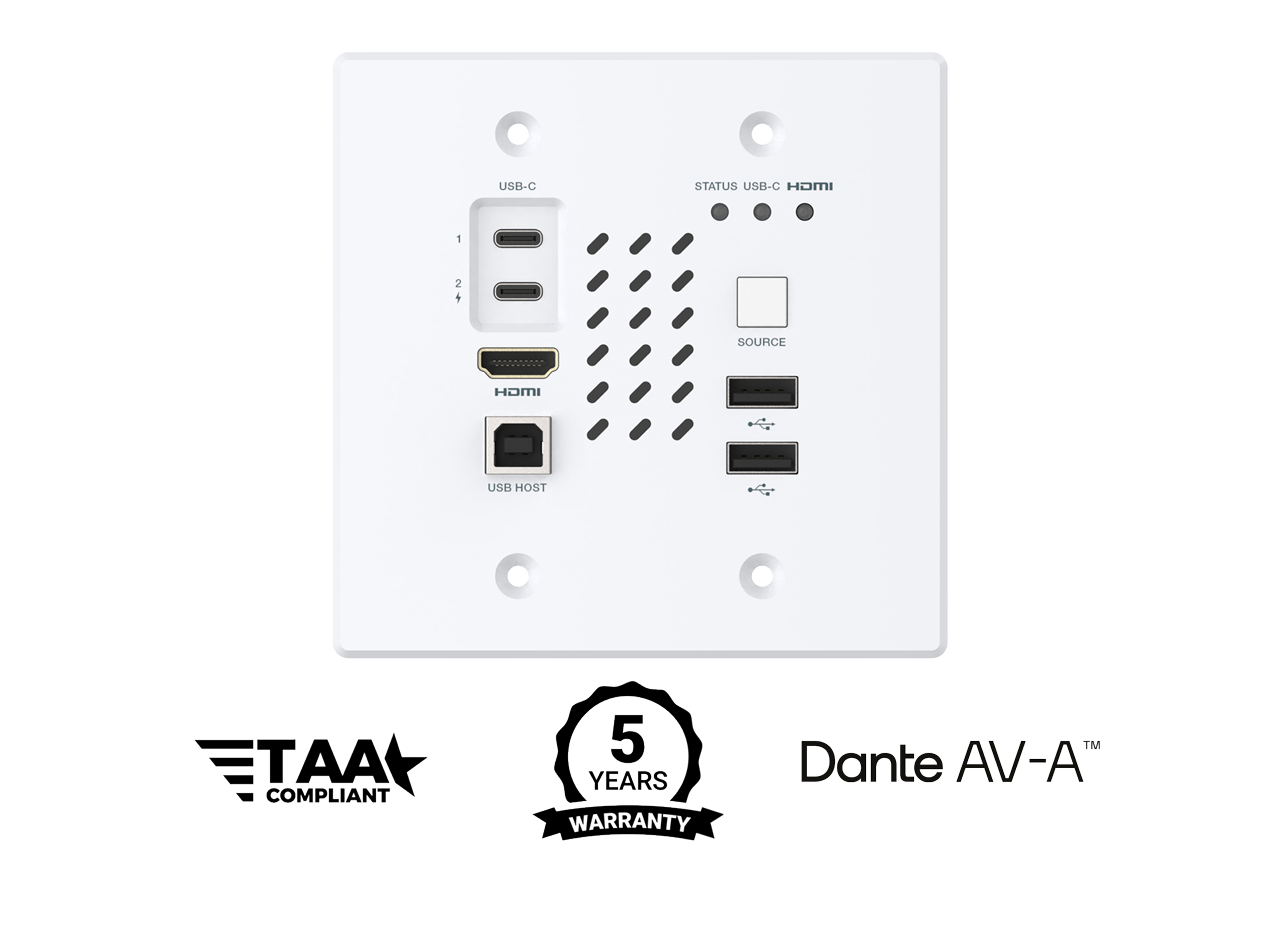

The Chazy 4K Wallplate Tx is a Dante AV-A and JPEG 2000 encoder, allowing seamless transmission of 2160 60Hz 4:4:4 HDR video from laptops or tablets via USB-C, and from video sources via the HDMI 2.0b input. Fitting into a 2-gang Decora-style wallplate, it’s perfect for modern boardrooms, lecterns, and meeting spaces. The Dante AV-A license is included and ready to go, which also has 2x2 Dante audio license. Chazy 4K Wallplate Tx is PoE powered and supports a wide range of audio formats including 7.1 Dolby Atomos, and features advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, and true multicast support. TAA compliant, Chazy 4K USB-C Tx also comes with a 5-year warranty.

Key Features:

• Dante AV-A™ & JPEG 2000
• Dante AV-A™ licence included with 2x2 Dante audio
• 2160 60Hz 4:4:4 HDR
• 2-Gang Decora-style Wall Plate
• USB-C video input
• PoE and 12V DC
• HDCP 2.2 & EDID Management
• 7.1ch Dolby Atomos Audio
• KVM and Video Wall up to 9x9
• Dual network ports
• TAA Compliant
• 5 Year Warranty

Dante AV-A & JPEG 2000

Bridging the best of both worlds, Dante AV-A works seamlessly with Dante Controller for full routing ability, whilst JPEG 2000 is a visually lossless, super low latency video codec.

Dante AV-A included

Chazy 4K Tx Wall Plate comes with the Dante AV-A licence included so there are no hidden costs and nothing left to do other than plug them in, and open up Dante Controller to start your routing.

Dante Audio. Included

With the included Dante AV-A licence, the Chazy 4K Tx Wall Plate also includes 2x2 Dante Audio. Extract audio from an HDMI source and send it to external speakers via Dante’s 2x2 audio channels.

Yes it’s Decora. With USB-C

Chazy 4K Tx Wall Plate is a 2-gang, Decora-style wall plate with both HDMI and USB-C video Tx, making it the ultimate solution for boardroom tables. It has USB power pass through so you can power a laptop, tablet, or other device from a USB wall plug, while still powering the Chazy via PoE.

Dante AV-A in hardware

The optional Chazy Control box takes Dante Controller a step further by building it into hardware. The benefits of this include:

• ​​​​​​​No need to run any software
• You can now control your entire Dante network from any device with a web browser including iPad, Tablet, Smartphone.
• Control from Q-SYS, Crestron, and more using the free API.
