Turtle AV CHAZY 4K TX - Product - Midwich

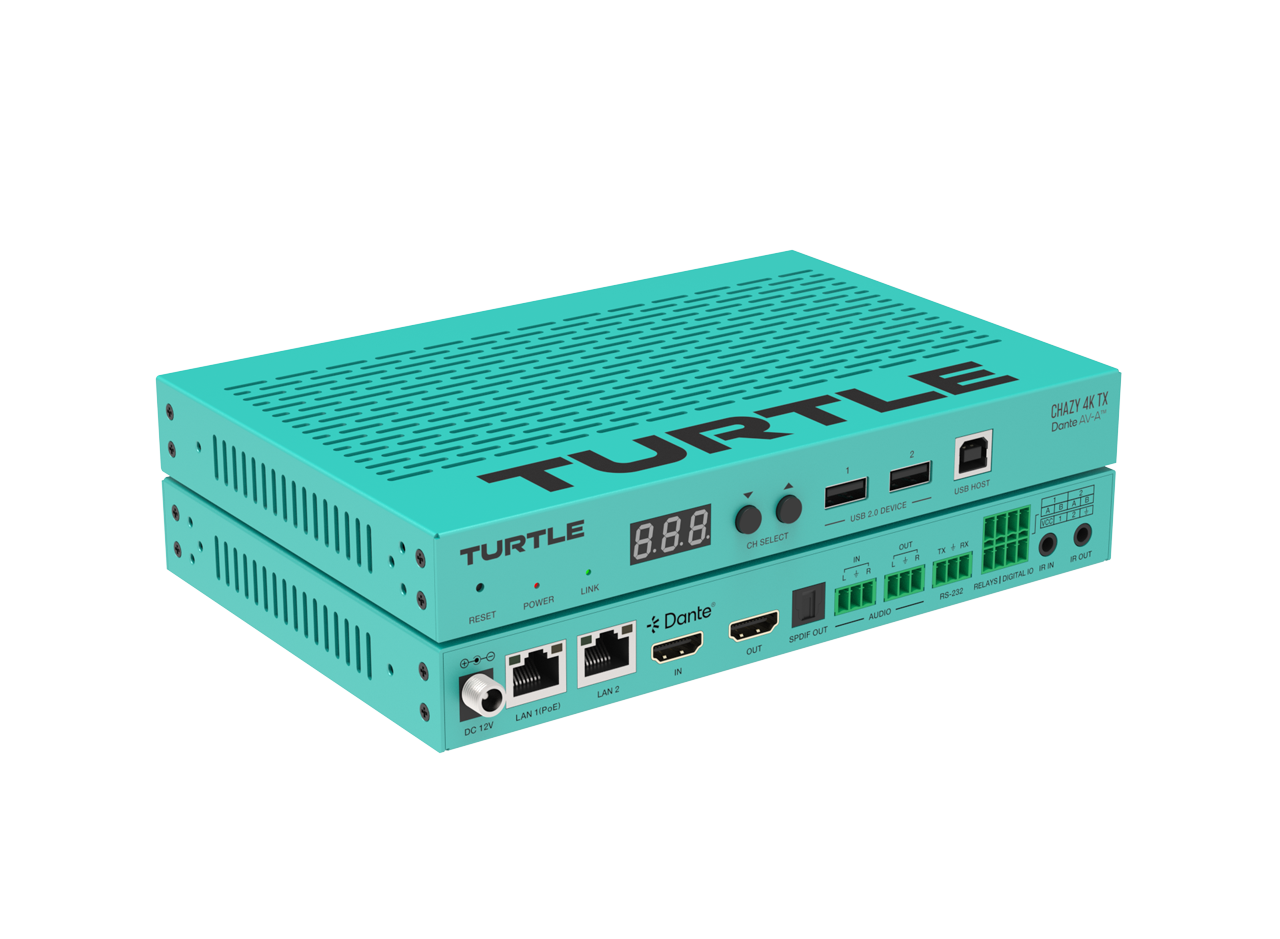

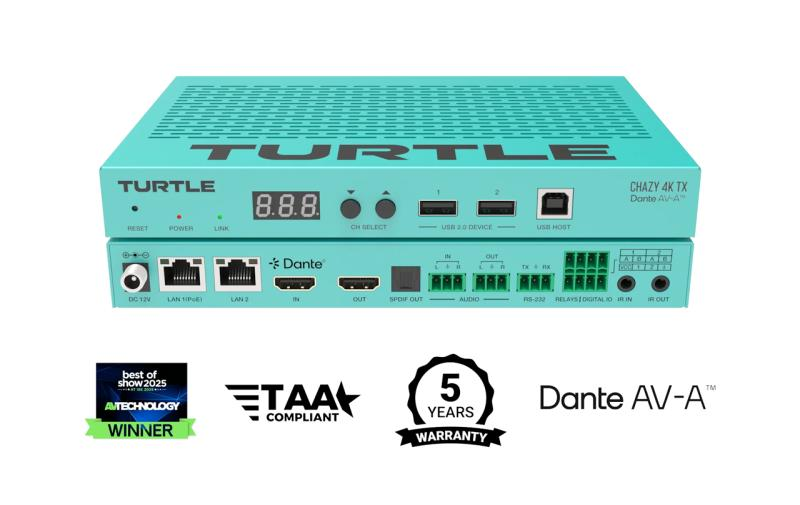

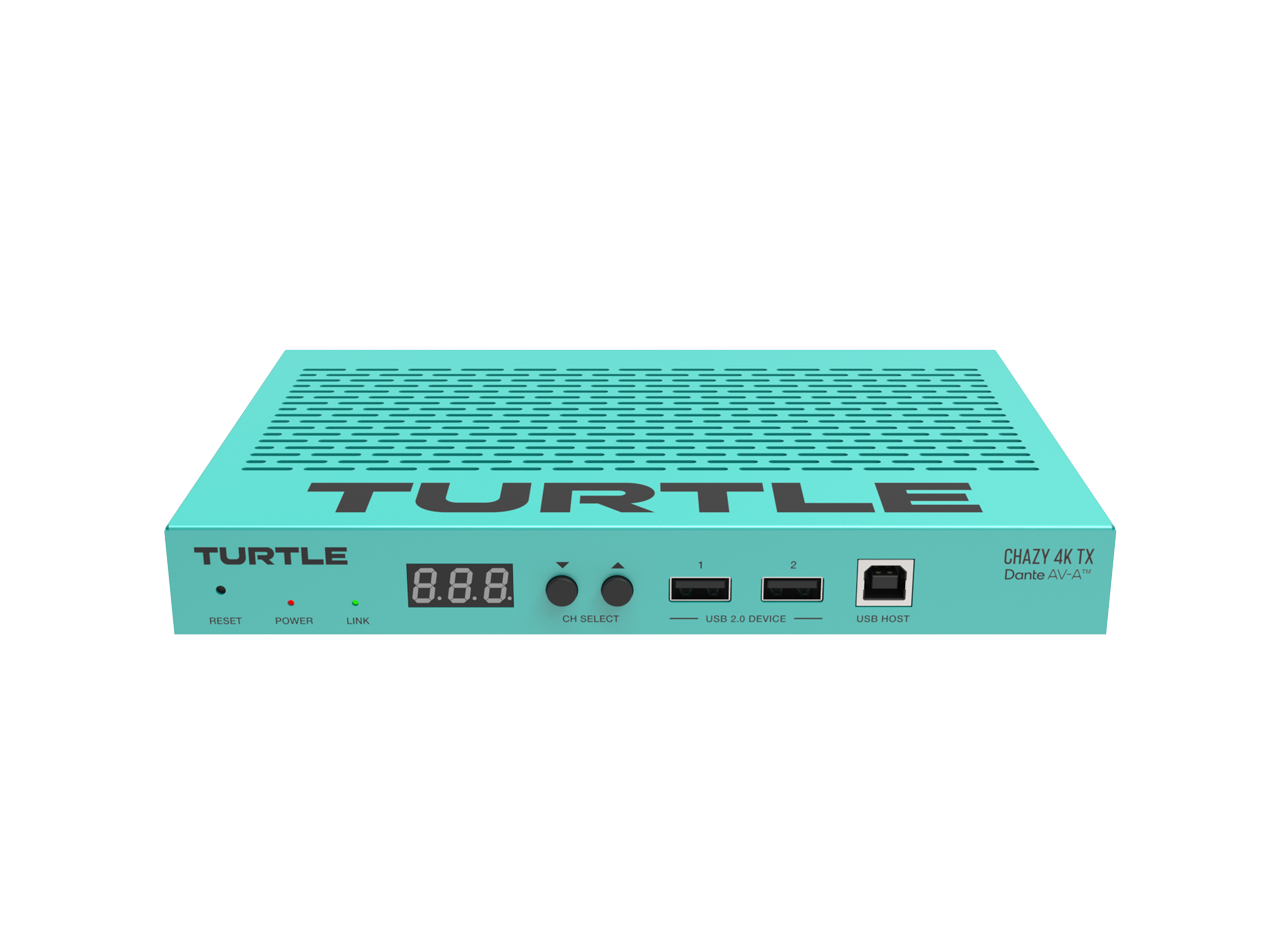

The Chazy 4K Tx is a HDMI 2.0b Dante AV-A and JPEG 2000 encoder designed for delivering stunning 2160 60Hz 4:4:4 HDR video. The Dante AV-A license is included and ready to go, which also has 2x2 Dante audio license. Chazy 4K Tx is PoE powered and supports a wide range of audio formats including 7.1 Dolby Atomos, and features advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, true multicast support, and dual network ports keep AV and Control separated. TAA compliant, Chazy 4K Tx also comes with a 5-year warranty.

Dante AV-A & JPEG 2000

Bridging the best of both worlds, Dante AV-A works seamlessly with Dante Controller for full routing ability, whilst JPEG 2000 is a visually lossless, super low latency video codec.

Dante AV-A & Audio included

Chazy 4K Tx comes with the Dante AV-A licence included so there are no hidden costs and nothing left to do other than plug them in and open up Dante Controller to start your routing. The Chazy 4K Tx also includes 2x2 Dante Audio. Extract audio from an HDMI source and send it to external speakers via Dante’s 2x2 audio channels.

Dante AV-A in hardware

The optional Chazy Control box takes Dante Controller a step further by building it into hardware. The benefits of this include:

• No need to run any software
• You can now control your entire Dante network from any device with a web browser including iPad, Tablet, Smartphone.
• Control from Q-SYS, Crestron, and more using the free API.

Advanced EDID Management

The Chazy 4K Tx simplifies connections with advanced EDID management, featuring automatic detection and the ability to load custom EDID tables directly through the WebGUI.

Hardware scaler built in

The integrated hardware enables precise resolution matching and color space conversion between sources and displays eliminating issues with unsupported formats, scaling artifacts, or mismatched color profiles.

Audio. Audio. Audio.

• 7.1-channel Dolby Atmos.
• Dolby TrueHD.
• Dolby Digital Plus.
• DTS-HD Master Audio.
• ARC & eARC.
• SPDIF connectivity.
• Analog audio return via Phoenix Connectors.

And yes, Dante 2x2 Audio licence included so you can route any of the above to 2-channel Dante and vice versa.

Networking and Security

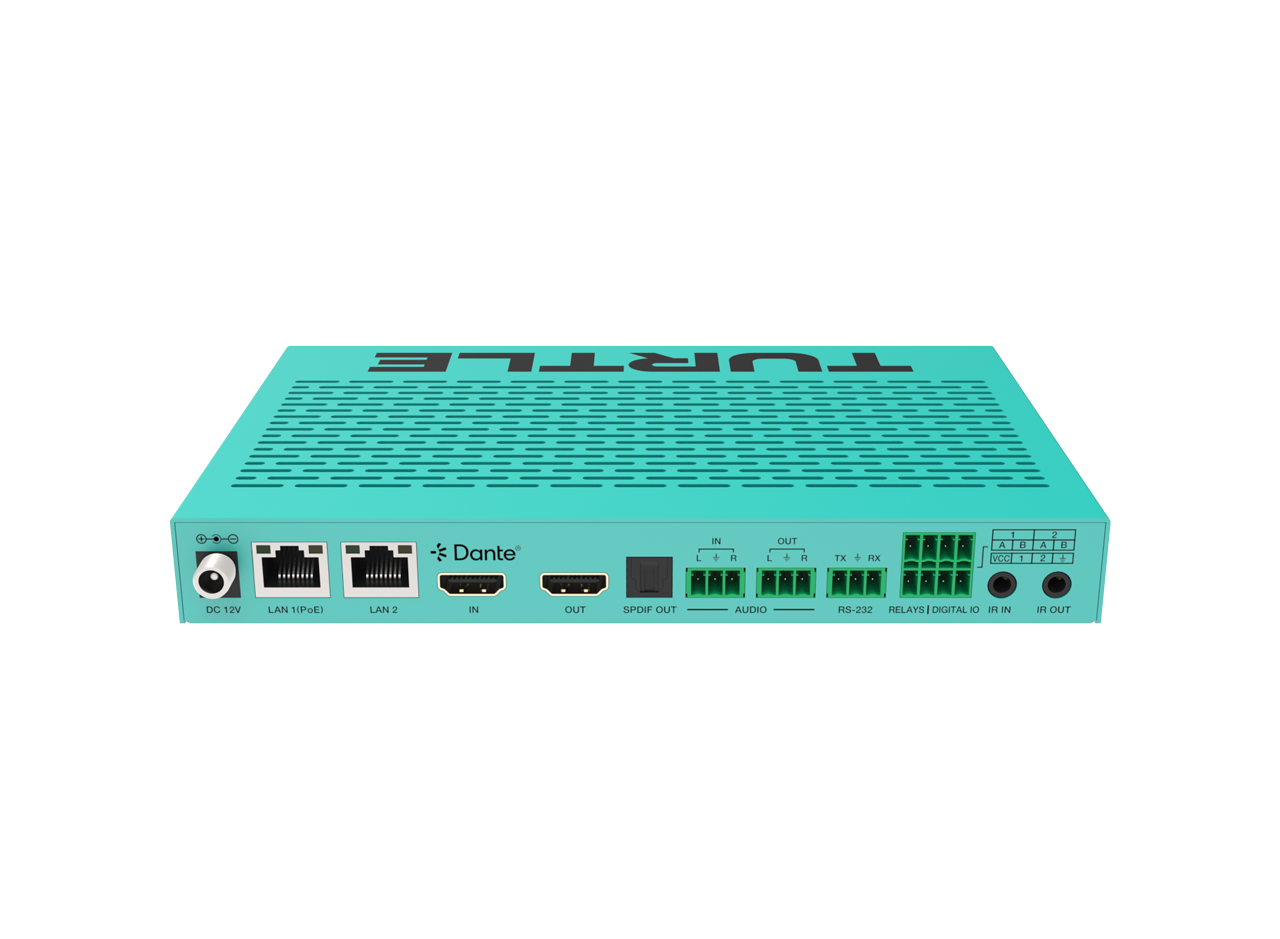

Chazy 4K Tx features 2x Ethernet ports to allow total separation of control and video and audio streams.

HTTPS and SSH offers login security, while 256-bit AES encryption makes the video and audio streams totally secure.

KVM

The Chazy 4K Tx supports independent routing of RS-232, USB KVM, and video/audio signals, enabling precise control of remote devices and peripherals. This functionality is suited for setups requiring separate management of control, data, and media streams within a unified system.

Videowall Up to 9x9

The Chazy 4K Tx, when teamed up with other members of the Chazy fam, supports videowall configurations up to 9x9, enabling a massive 81 displays to be configured as a single display.

Monitoring

Real-time monitoring of each device including status, uptime, and network details such as IP and MAC addresses, and live video preview.
