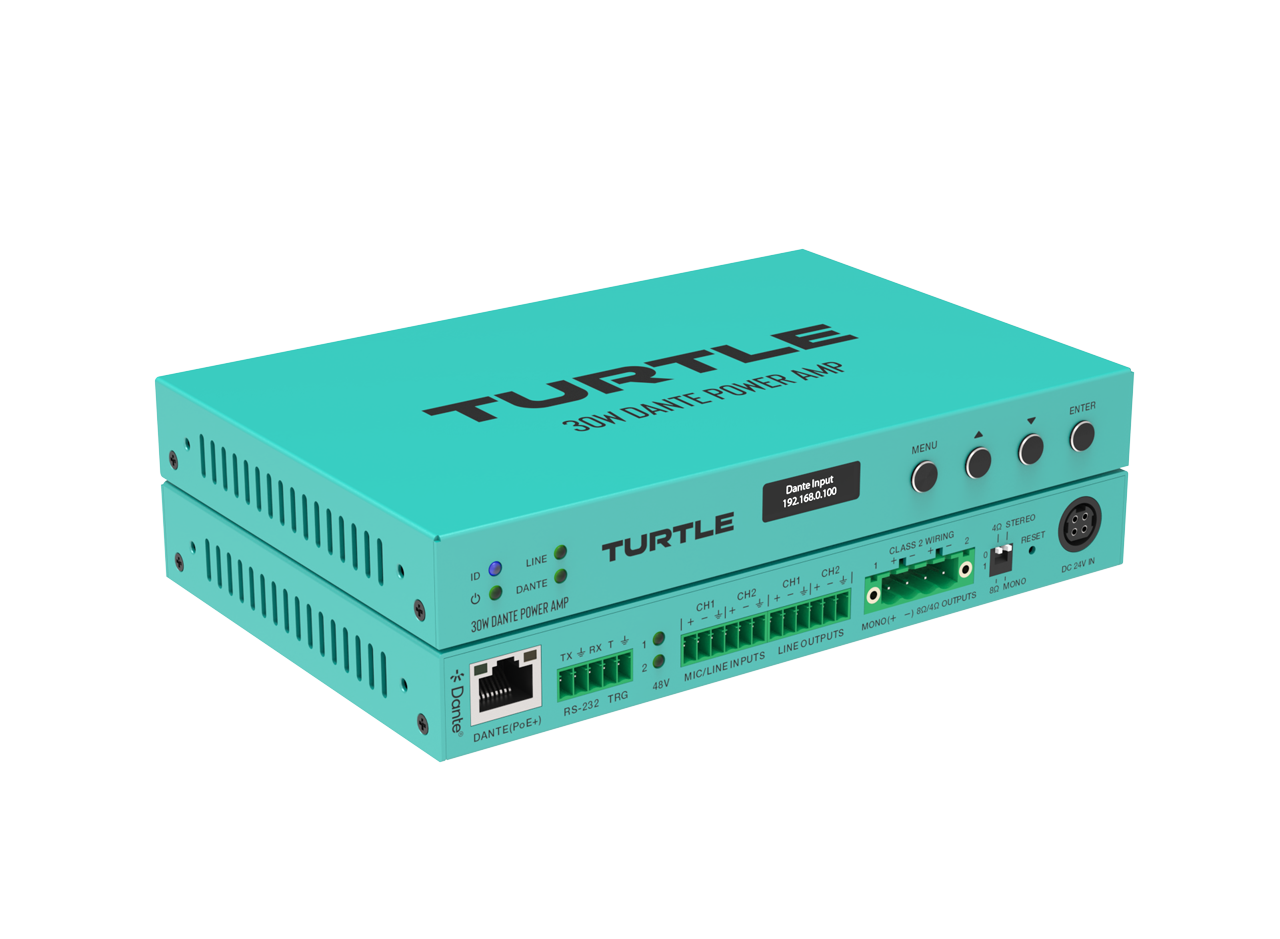

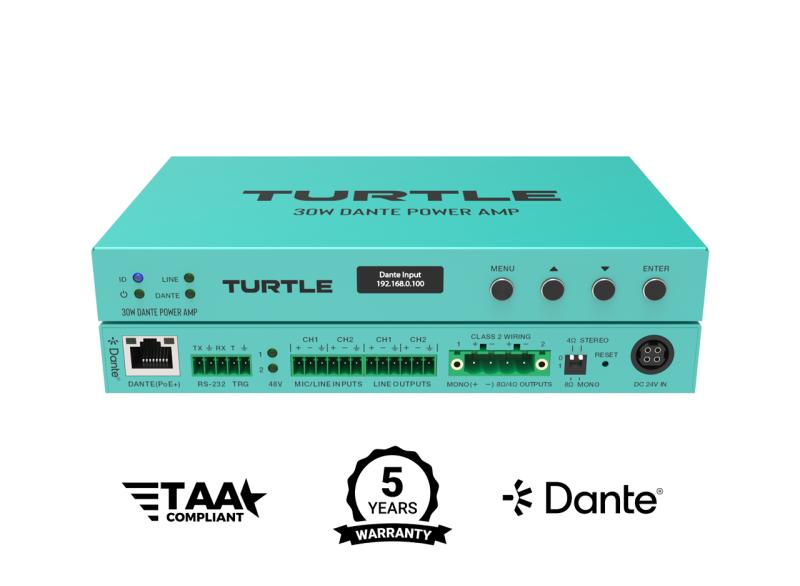

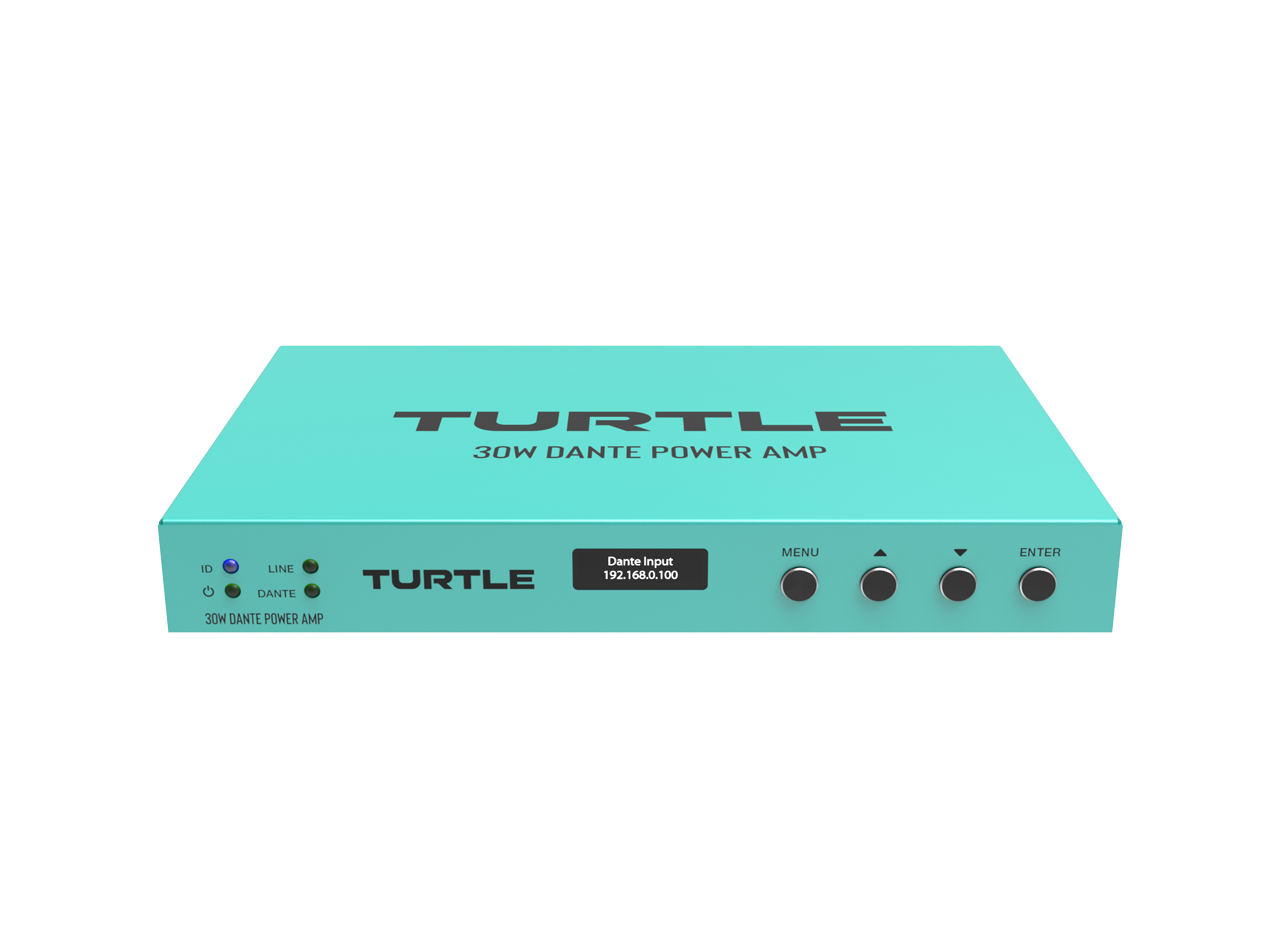

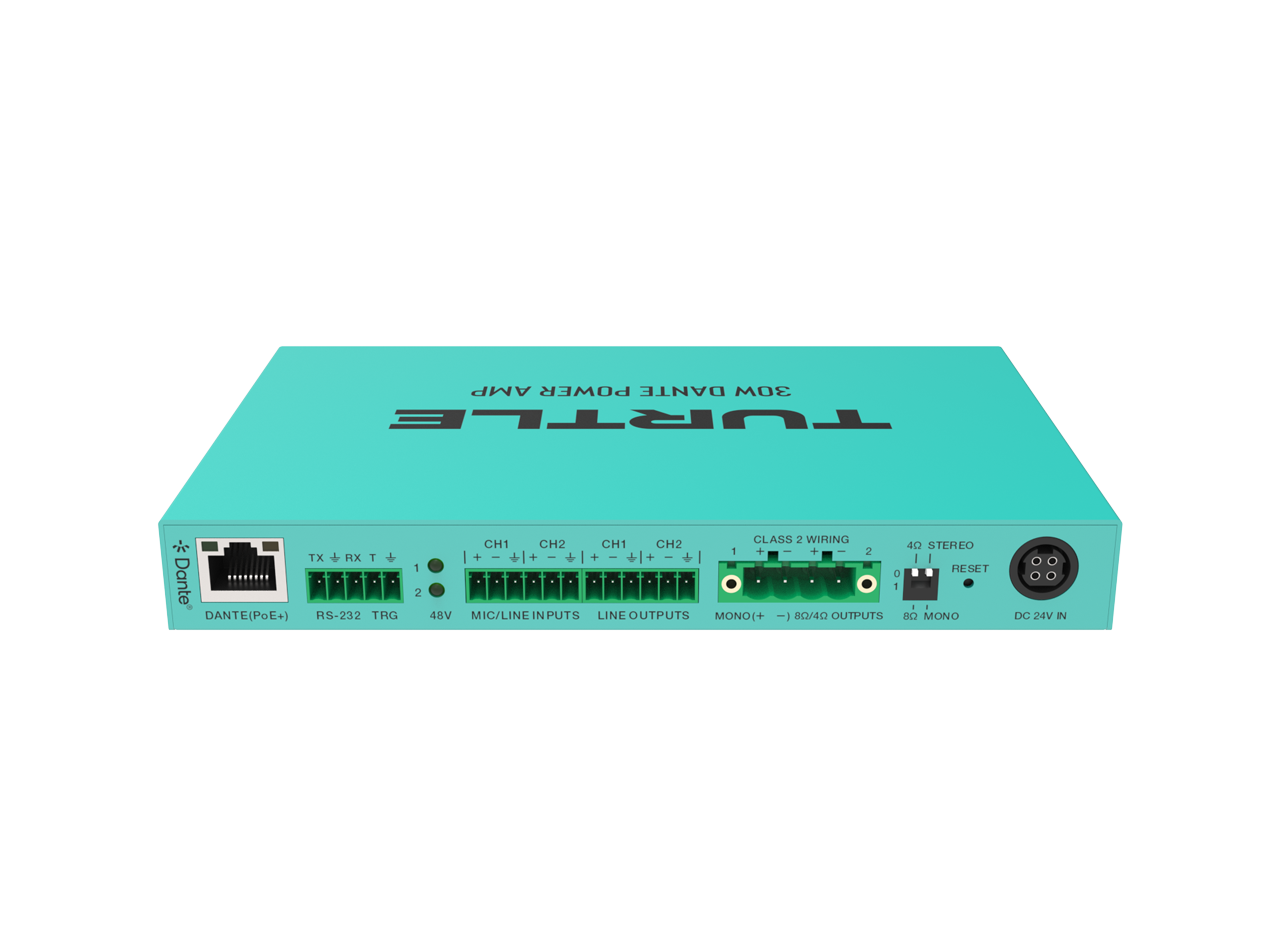

Turtle AV 30W PoE+ Dante Power Amp - Product - Midwich

30W Power Amp. Plenum rated. PoE+. Dante Bridge.

This compact amp acts as a full Dante audio bridge and powers two passive speakers at 15 watts per channel. Convert analog to Dante, Dante to analog, or do both at once.

Plenum rated and powered by PoE+ or 12V DC. Includes balanced or unbalanced analog I/O, 2 channel digital I/O, and 48kHz 24-bit audio conversion. The integrated DSP gives you gain, EQ, and volume control, all accessible through the WebUI or open API.

Plenum Rated

Certified for use in air-handling spaces, this device meets stringent fire and smoke safety standards for ceiling and plenum installations.

PoE+. DC. Or both for power redundancy

Power the device using PoE+, or use the 12V DC input when external power is preferred. Using both gives power redundancy.

Dante Bridge Function

Route audio between Dante and analog with full flexibility. Send analog sources into the Dante network or output Dante streams as analog audio, all through the same device.

Hi-Z and Lo-Z Versatility

Switch effortlessly between Lo-Z (4Ω/8Ω) and Hi-Z (70V/100V) modes. Deliver up to 2 x 15W in stereo or 30W in bridged constant voltage mode for ultimate adaptability.

Built-In DSP and Advanced Audio Processing

Enjoy precise audio control with a built-in DSP featuring independent input gain, output EQ, and volume control. Achieve pristine sound quality with 48kHz sampling and 24-bit A/D and D/A converters.

DSP control via WebGUI

The built-in DSP WebGUI makes managing your Dante Bridge super easy and delivers even more value to this little powerhouse. With the WebGUI, every feature is at your command.

Configure Audio Precisely

Adjust input and output settings, manage EQ profiles, and control audio delay for Analogue and Dante outputs.

Save and Recall Presets

Create up to 5 customizable presets for quick scene changes, perfect for dynamic setups.

Monitor and Manage Network Settings

Switch between DHCP and Static IP modes, configure Telnet ports, and use the domain name for quick access.

Advanced System Utilities

Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Advanced System Utilities

Modify passwords, reboot the system, update firmware, and export/import settings with ease.

Streamlined Setup

Control everything from input sources to auto-standby times, all through an easy-to-use interface.

Flexible Control Options

Control your amplifier via RS-232, LAN, or the Web GUI for easy integration into any system. Auto-standby and trigger input (5-12V) add convenience and efficiency.

Dual Network Ports

Keep the Network and IT Administrators happy with dual network ports allowing separation of Dante and control traffic.

Compact Design for Any Installation

Designed with a half-rack or one-rack form factor, this amplifier saves space while delivering powerful performance. Ideal for boardrooms, classrooms, and professional AV setups.

TAA Compliant

Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards for procurement. This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
