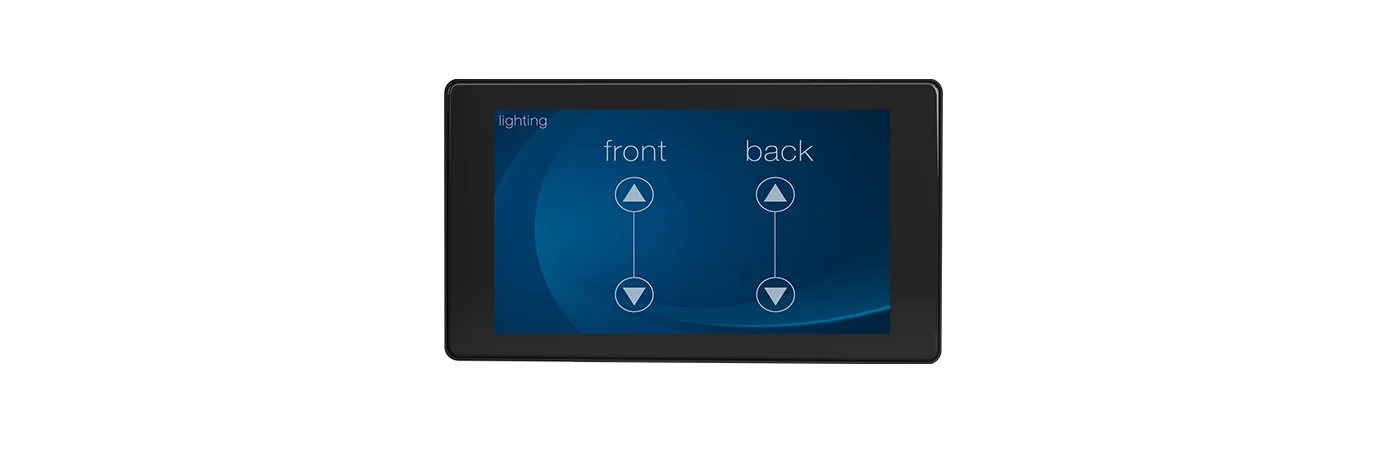

The Q-SYS TSC Series Gen 3 are high-performance network touch screen controllers native to Q-SYS. Available in three sizes (5-inch, 7-inch, 10-inch), these PoE-capable (power over Ethernet) devices support a wide range of applications needing a fully customizable user control interface (UCI).
Features:
Robust Responsiveness: Projective Capacitive (PCAP) Multi-Touch Surface with 24-bit Color Display
High Resolution Display: 1280 x 720 px with 450 Nits (brightness) coupled with significantly improved screen transition
Power Over Ethernet: Allows for simplified single cable installation
Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes

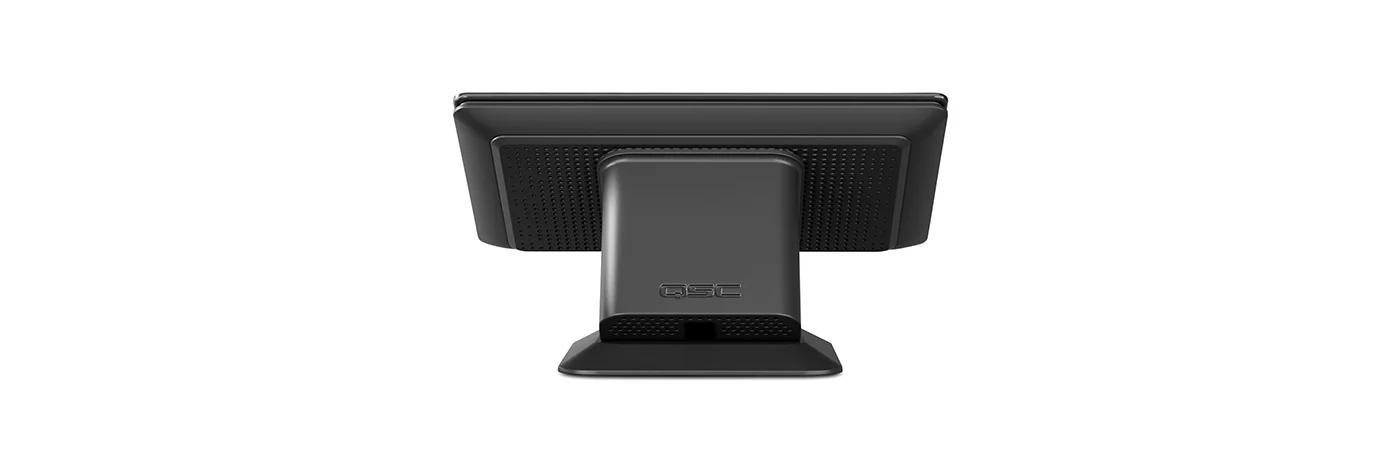

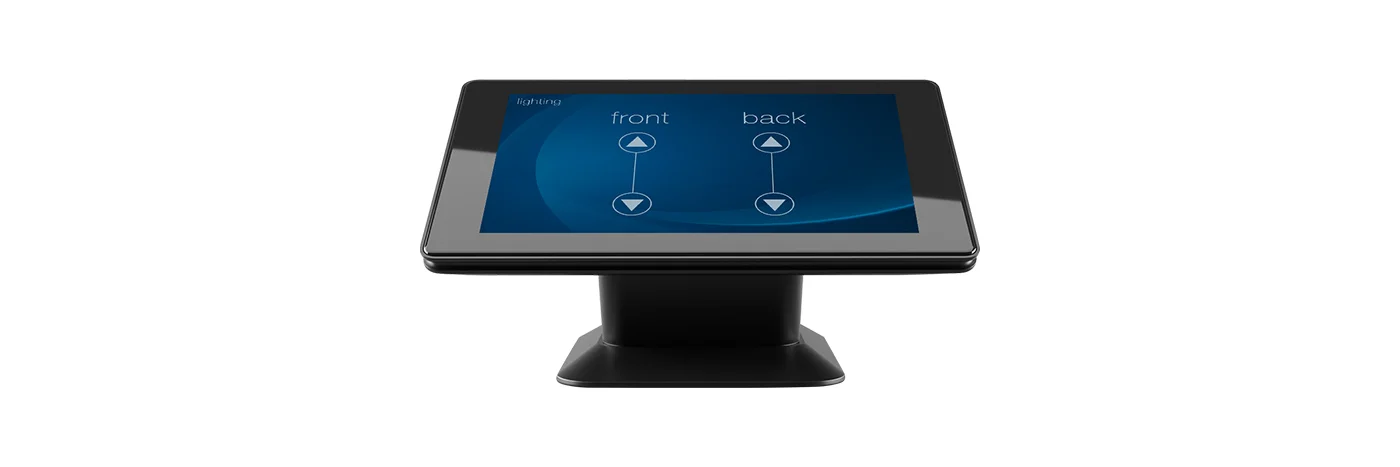

Versatile: Ability to operate in portrait or landscape orientation; wallmount into standard 1-Gang backbox or table top mount with optional stand
UCI Editor:
Easy Drag and Drop Interface: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
Complete Design Freedom: Build more dynamic UCI themes and apply global styles across multiple UCIs with CSS-based styling. Enables easier deployment of uniform UCIs across an organization.
Convenient License Activation: Deploying a UCI to an active Q-SYS system requires the UCI Deployment feature license.
