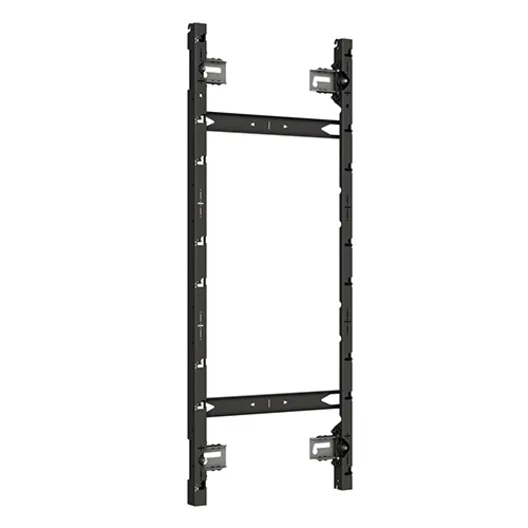

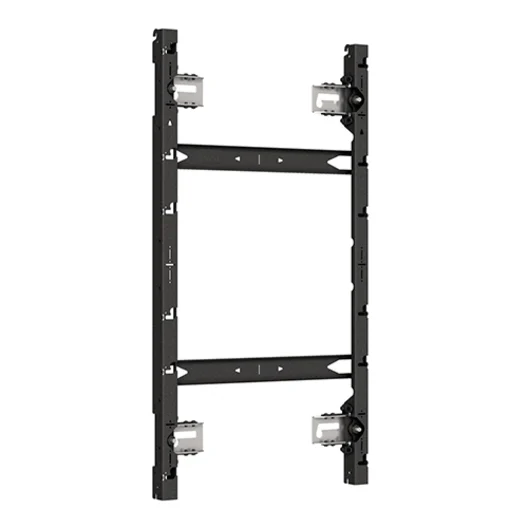

The TiLED™ LED Video Wall Mounting System is designed to mount 2 vertically stacked LED displays from the Absen Acclaim Plus & Acclaim Pro Series. Simply stack LED displays to create one continuous video wall. Chief’s modular design attaches to the top, bottom, and sides of other mounts to support endless design configurations. TiLED™ Video Wall Mounting Systems feature offset mounting slots to protect LED displays from damaging friction during installation. Once displays are in place, variable X,Y, and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
Compatible with:
A2712 PLUS
A2715 PLUS
A2725 PLUS
A2738 PLUS
A2712 Pro
A2715 Pro
Key Features:
X-axis lateral shift adjustments enable perfect LED positioning
Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment
Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces
Modular design supports creative video wall design
Keyhole slots allow for fast and easy mount installation
Offset mounting slots for easy installation and to protect LED sides from damaging friction
Depth range with display between 3.81” – 4.56” (97-113 mm) for low-profile result
Standard, off-the-shelf solution set means product is stockable and ready to ship – no custom lead times
