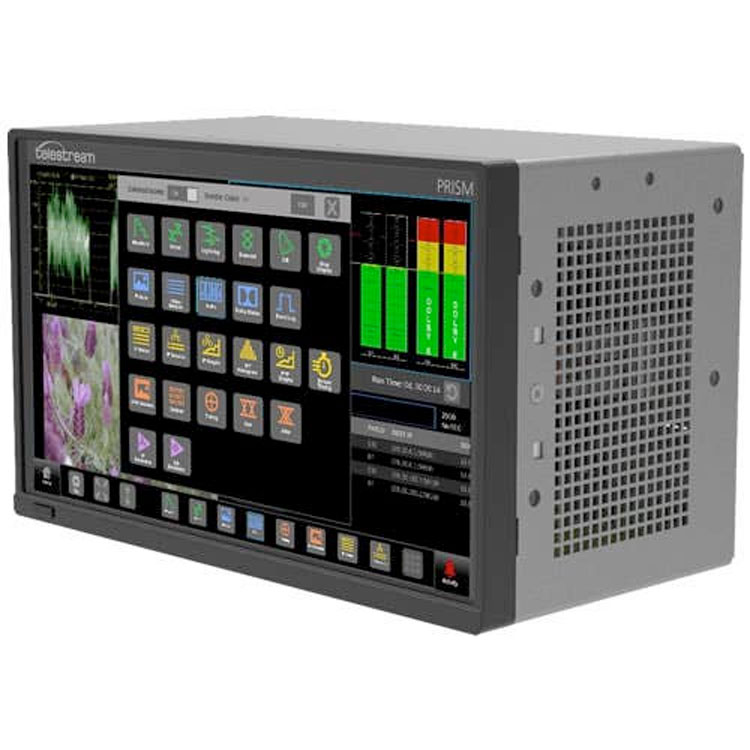

The Telestream MPS-100 PRISM Waveform Monitor with Integrated Touchscreen, 3RU Half Rack, and SDI Input is only 5 in. deep, making it a perfect fit in space-constrained environments like mobile OB trucks. MPS-100 has four inputs, each capable of supporting up to 12G-SDI. Telestream MPS-100 has been designed to support both local and remote production situations up to 8K HDR. It can be fitted with an industry standard battery for portable applications where AC power is not available.
Now customers can purchase a base model and add features as and when required by simply purchasing a software license. Another benefit of software defined monitoring is that users do not need to return hardware to the manufacturer for an upgrade, as the upgrade is done in-house, minimizing downtime. The base model is equipped with a rich set of standard applications such as Waveform, Vector, Lightning, Diamond, Picture, Video Session, Audio, Event Log, Timing, and IP Status.
Flexible screen tile configurations provide full screen, two, three and four tile layouts giving flexibility in selecting a variety of software apps for user-specific applications, while still allowing easy viewing of each display.
Ideal scope for live production in SDI that scales up to UHD

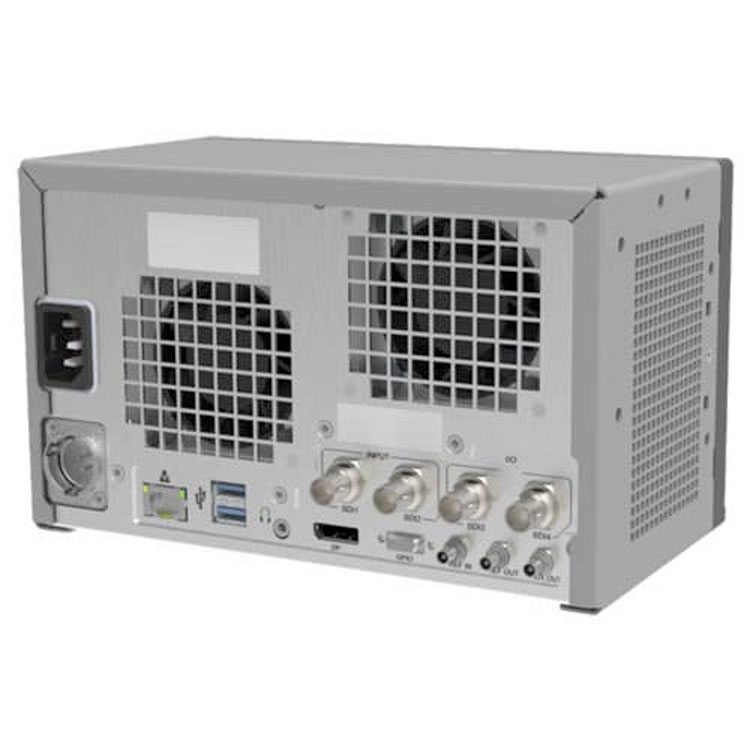

Four BNC SDI inputs up to 12G enable simultaneous measurement of four UHD signals
Comprehensive set of measurements to get most out of HDR with CIE, False Color and STOP waveforms
Optionally turn on complete set of QC or engineering measurement tools (not included)
Compact form factor that is 3RU half-rack with 5 in. depth, but maximizes operation with 9 in. touch display
